BCU33M 4in1

Description

Multi-machine with blade, trimmer head, chain saw and hedge trimmer.

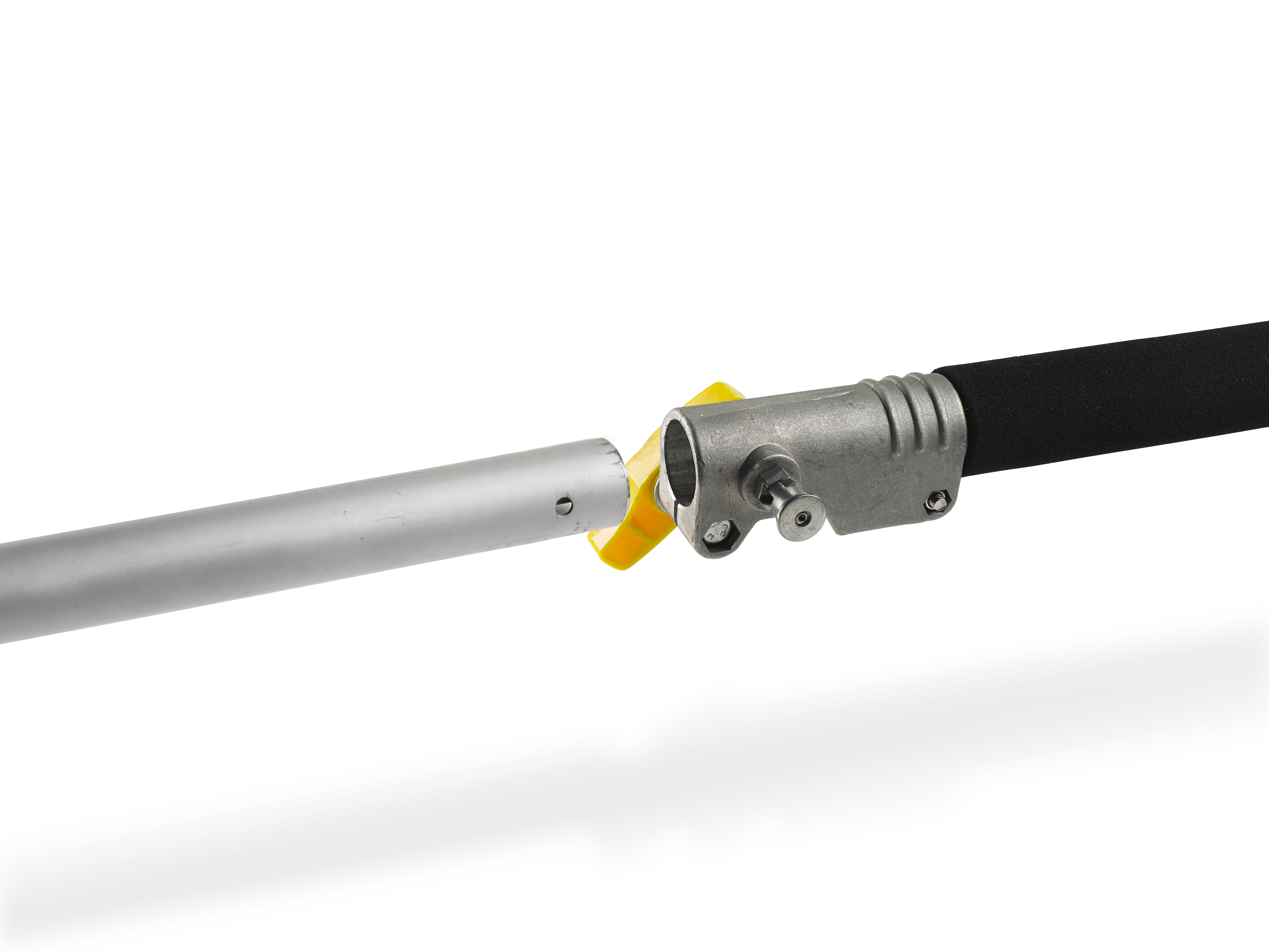

The shareable handle makes it easy to switch between the accessories.

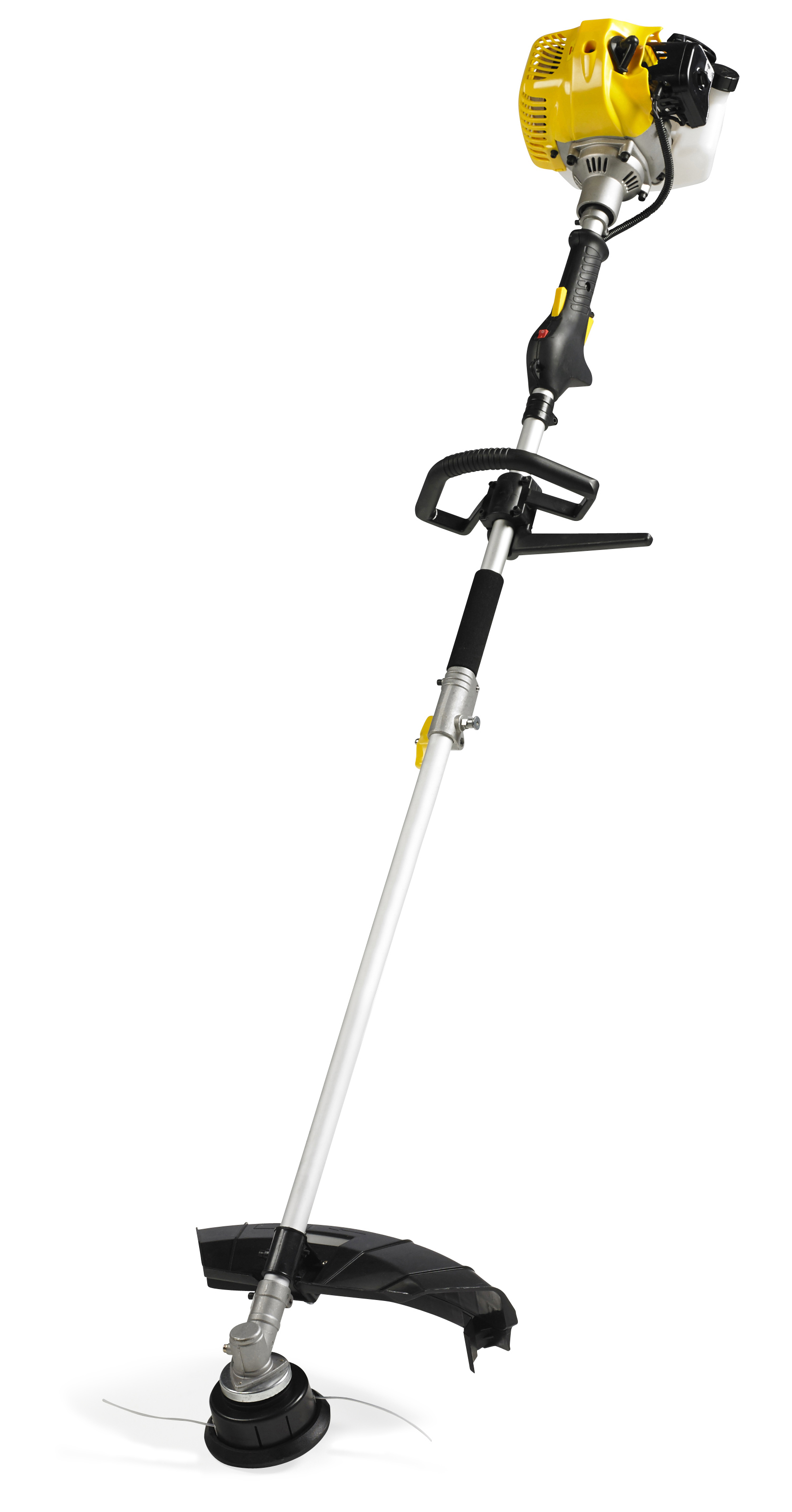

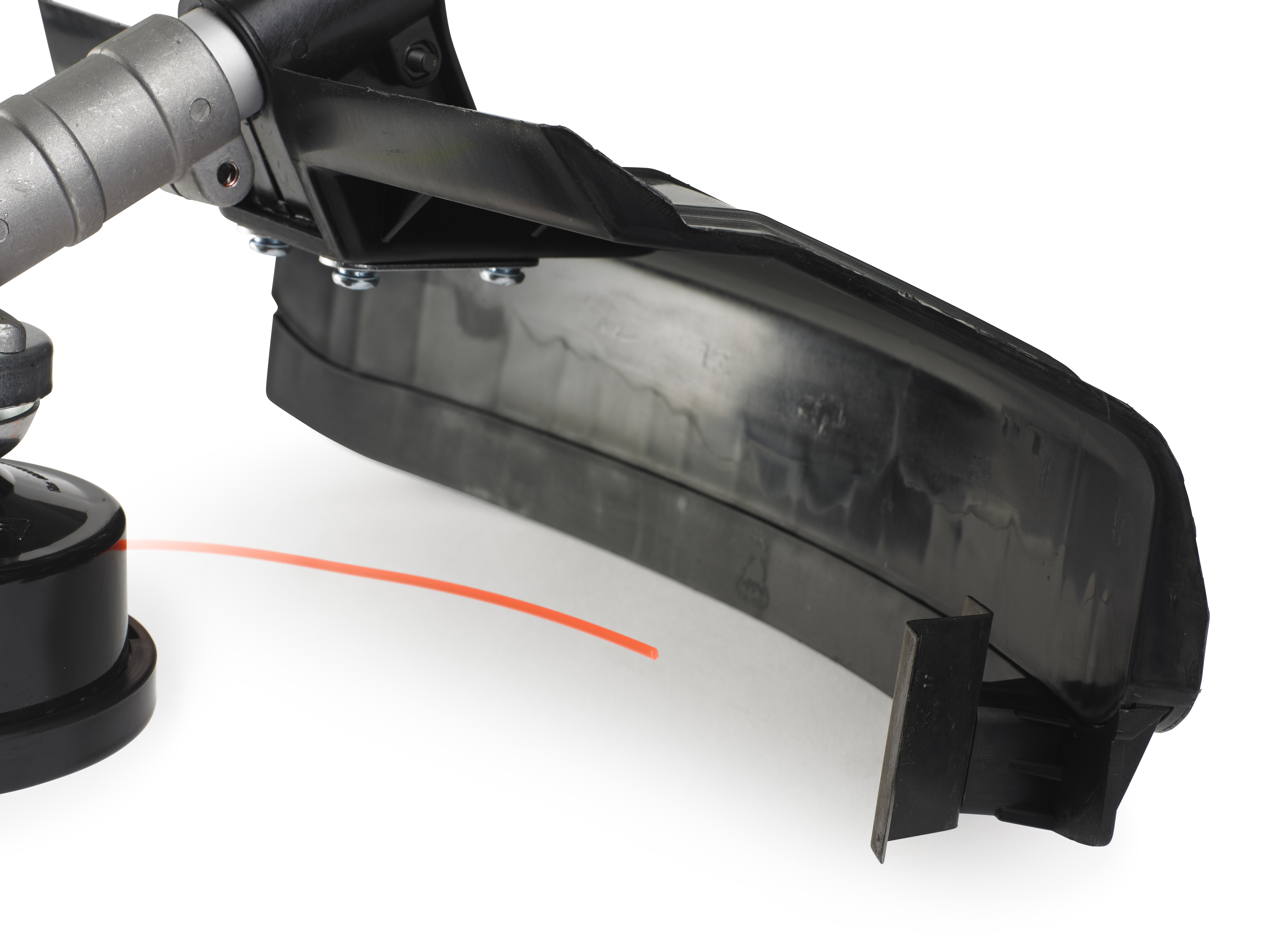

String head: 2.4 mm lace / Ø 43 cm

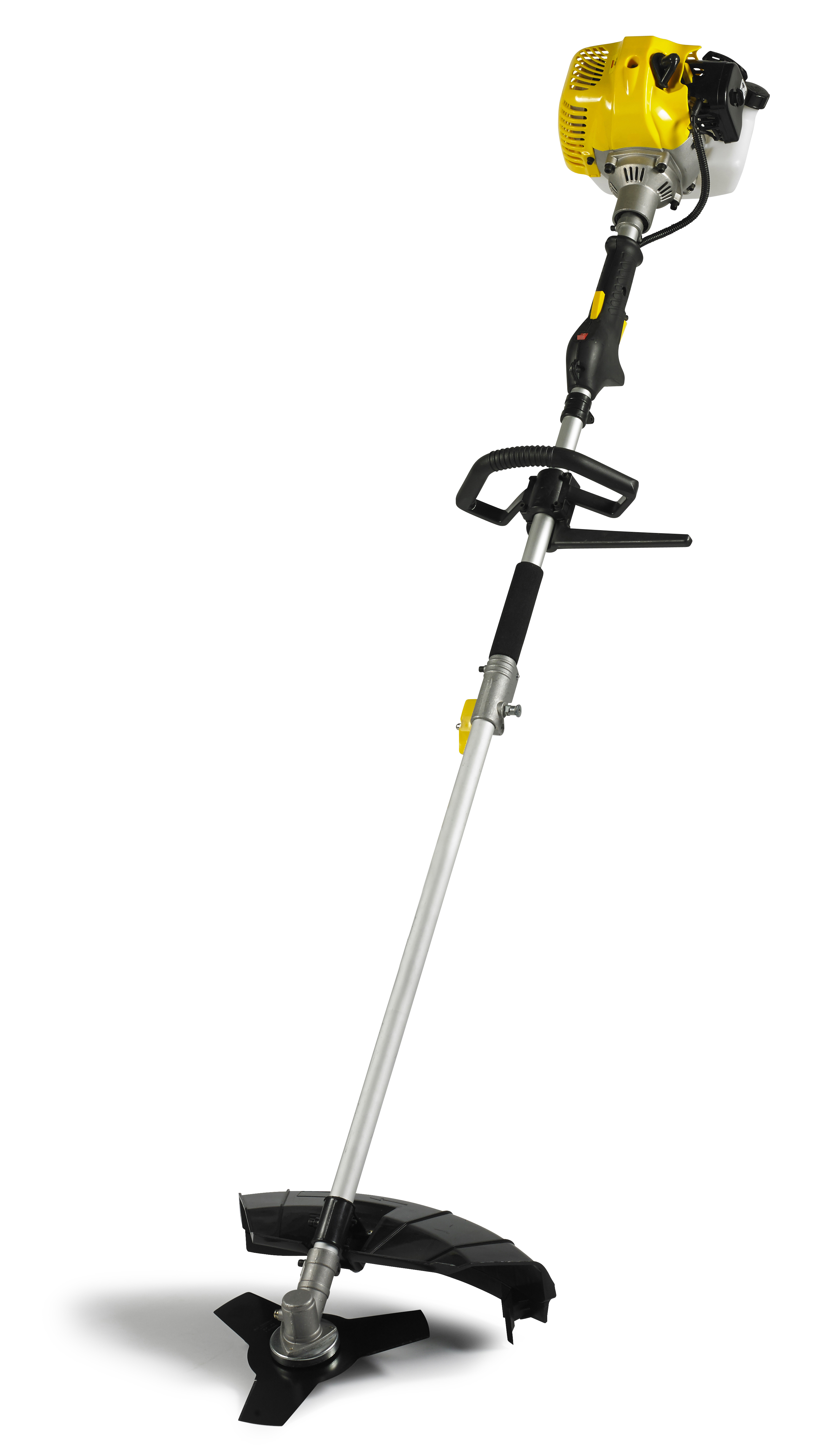

3-tooth blade: Ø 25 cm

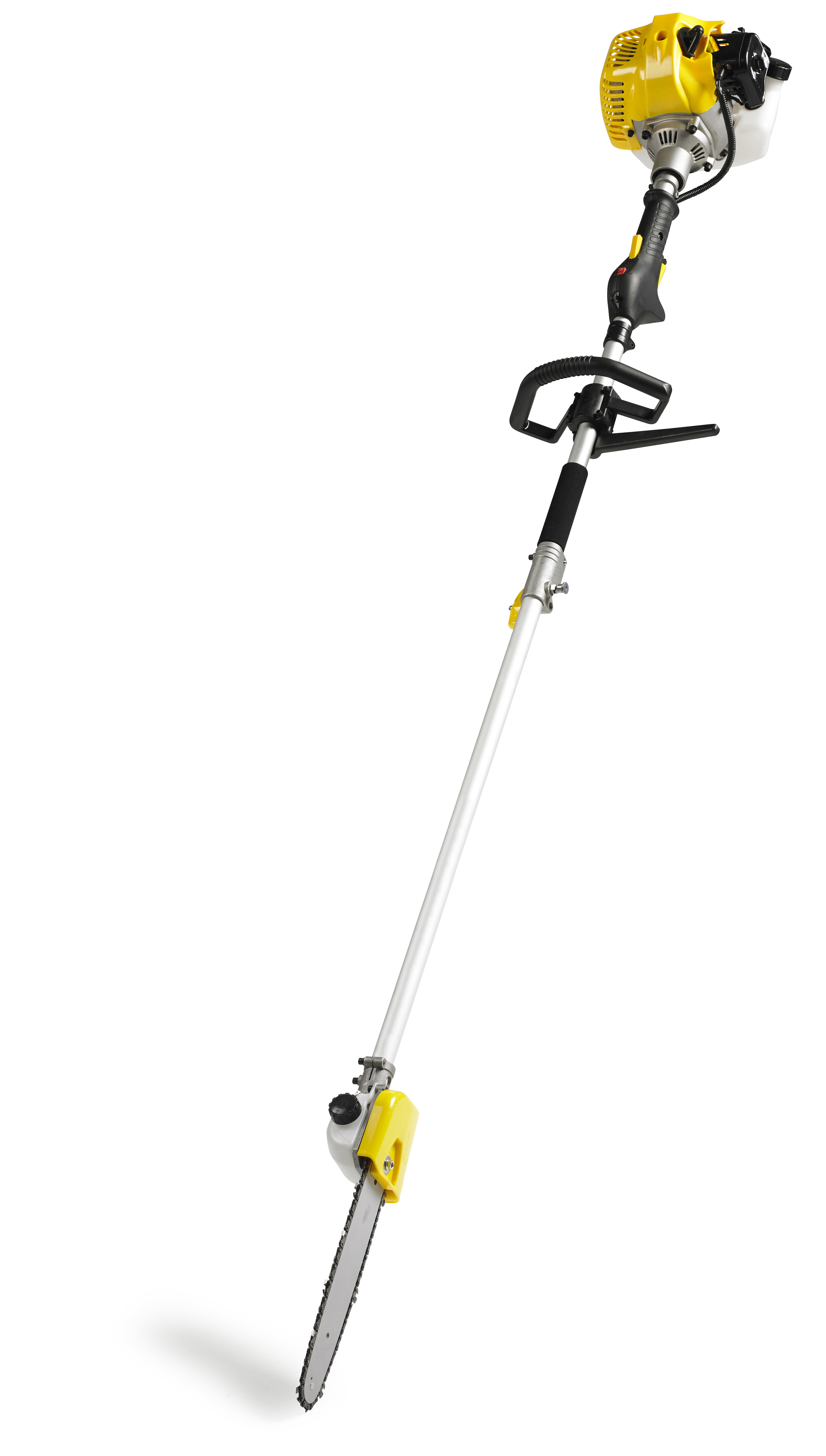

Chain saw: 25 cm bar

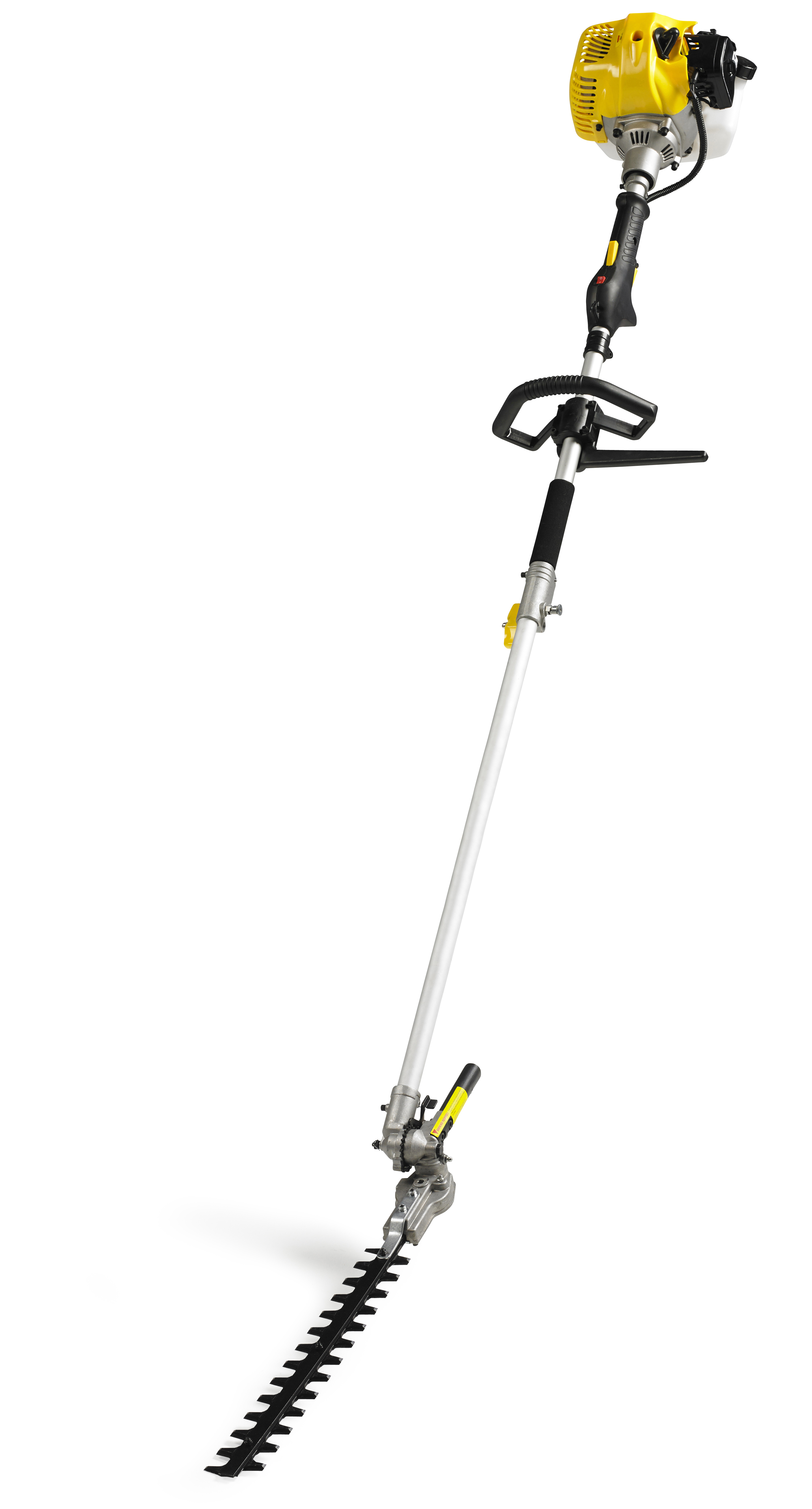

Hedge Trimmer: 40 cm blade and 24 mm cutting width

Total length of the machine and hedge trimmer / chainsaw is 2,30 m.

Includes carrying strap.

Extension bar (76 cm) can be purchased so that high places can be reached. Not supplied.

Total length of the machine with extension bar and hedge trimmer / chainsaw is 3.06 m.

Video

Cookies should be accepted for use in the video.

Click here to approve

Note: Video can be seen over the model.

Specifications

Starter	: Recoil
Gasoline/diesel	: Gasoline mixed with oil
Weight	: 6,8-7,4 kg
Box width	: 30 cm
Box length	: 29 cm
Box height	: 113 cm
Line size	: 2,4 mm
Length of saw bar	: 25 cm

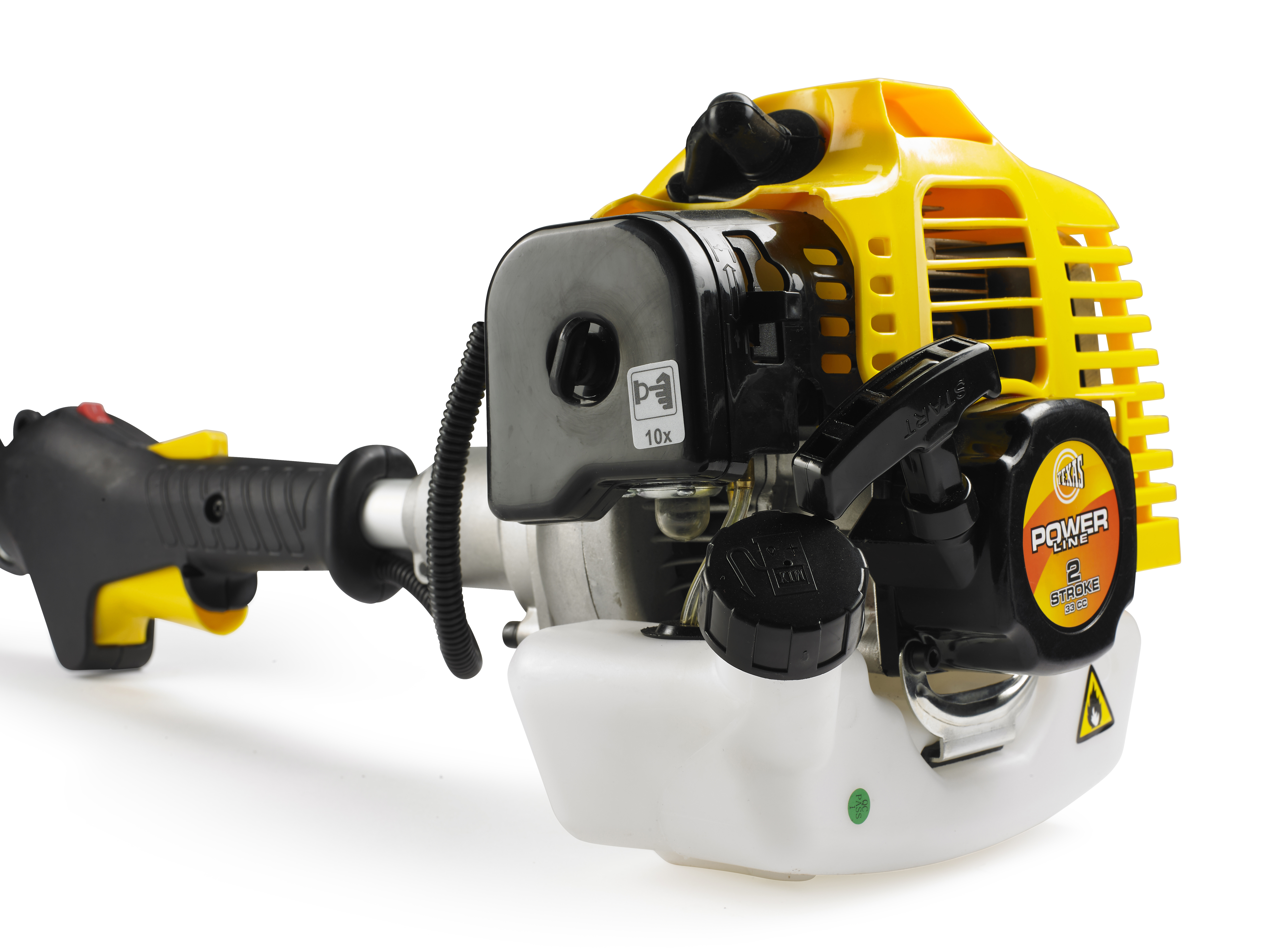

Engine type	: 2 stroke

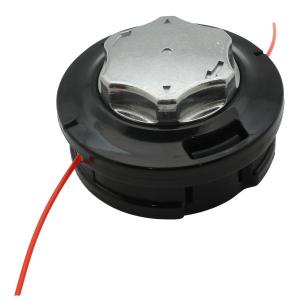

Trimmer head	: Tap'n Go

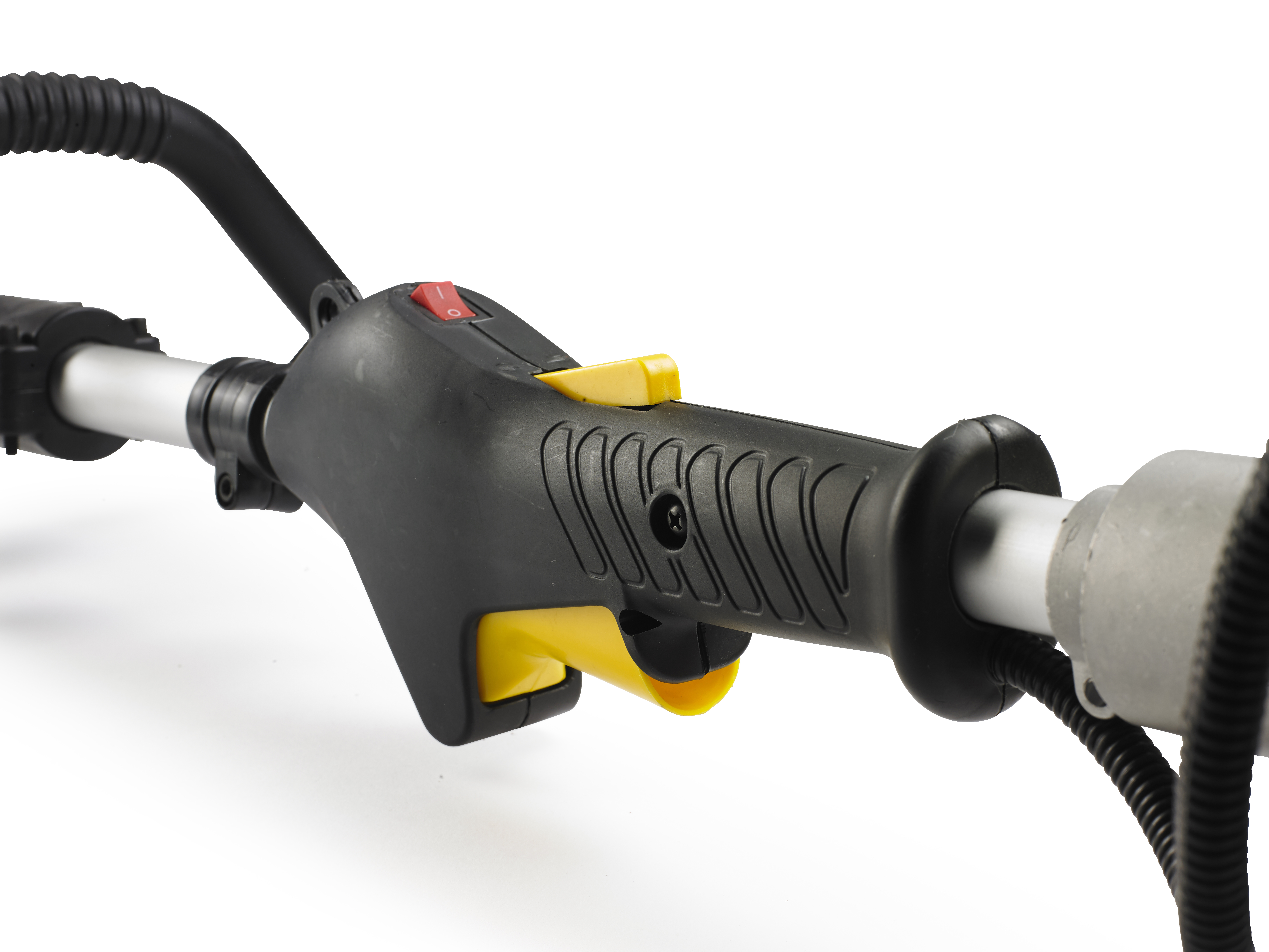

Handle	: D-Handle
Handle	: Straight
Cutting width (line)	: 43 cm
Cutting width (blade)	: 25 cm
Blade (no of teeth)	: 3 tooth
Branch thickness	: 24 mm
Clutch	: Centrifuge clutch
CC	: 33 cc
Power	: 0,9 kW v. 7200 rev./min.
Bar	: Oregon
Chain oil	: 0,06 litre
Tank capacity	: 0,9 litre
Harness type	: Standard
Engine	: Texas
LWA guaranteed	: 114
Lenght of knife	: 40 cm
Level of vibration front	: 5,64
Level of vibration back	: 6,28
Blade thickness	: 1,4 mm
