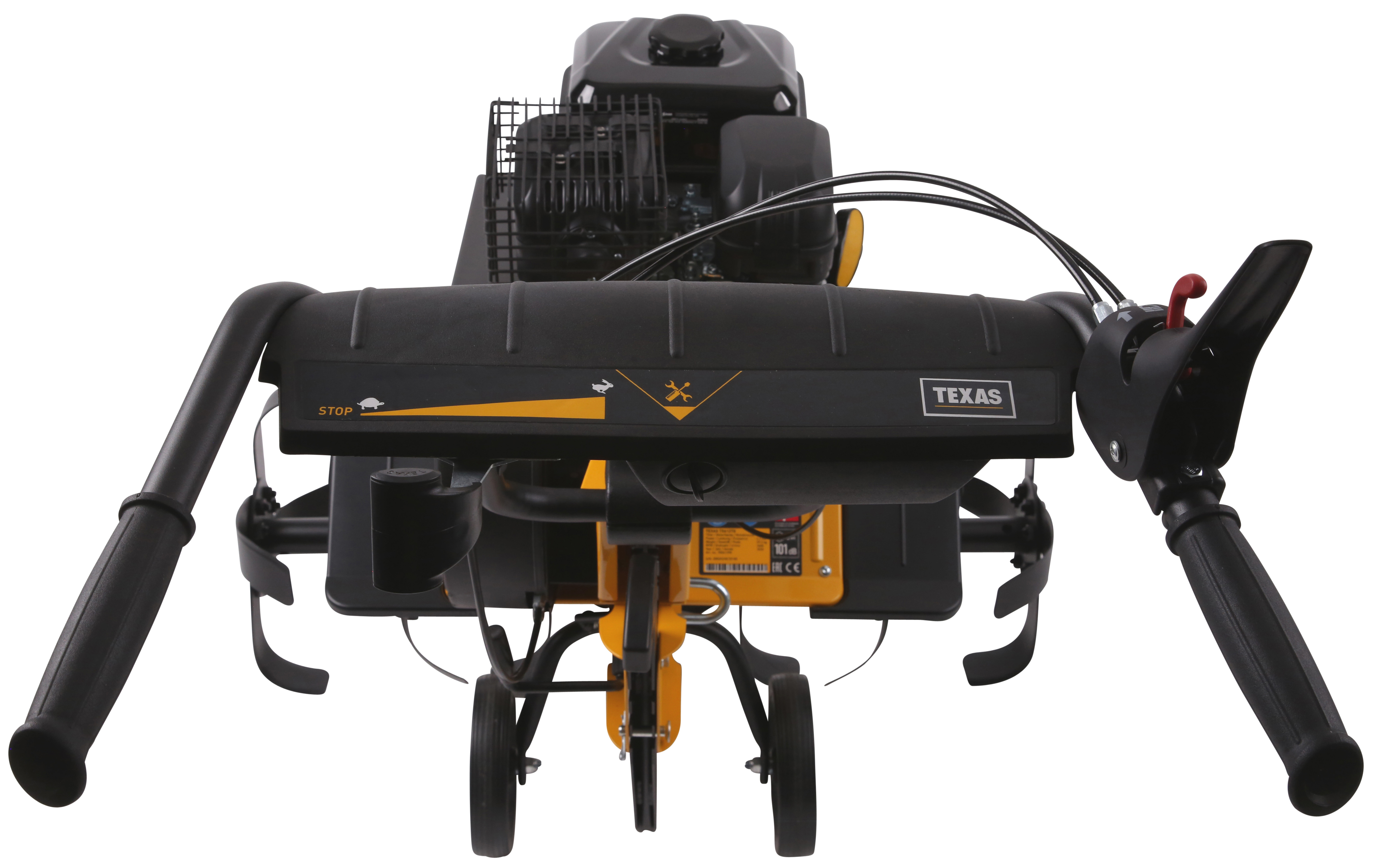

TX611TG Dual-Shaft

Product data
Art no : 90061198
EAN : 5714829032962
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele

Productdescription TX611TG Dual-Shaft

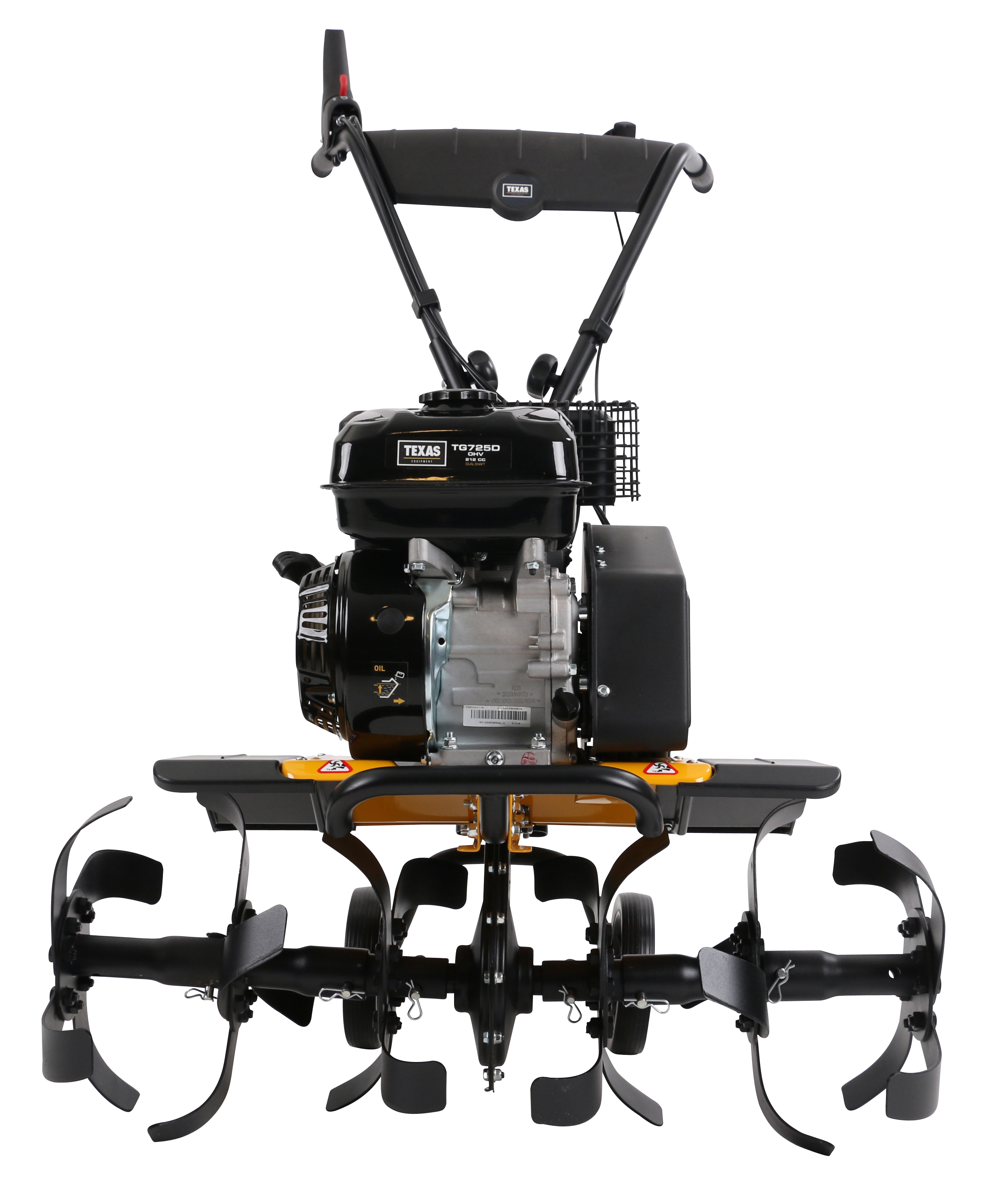

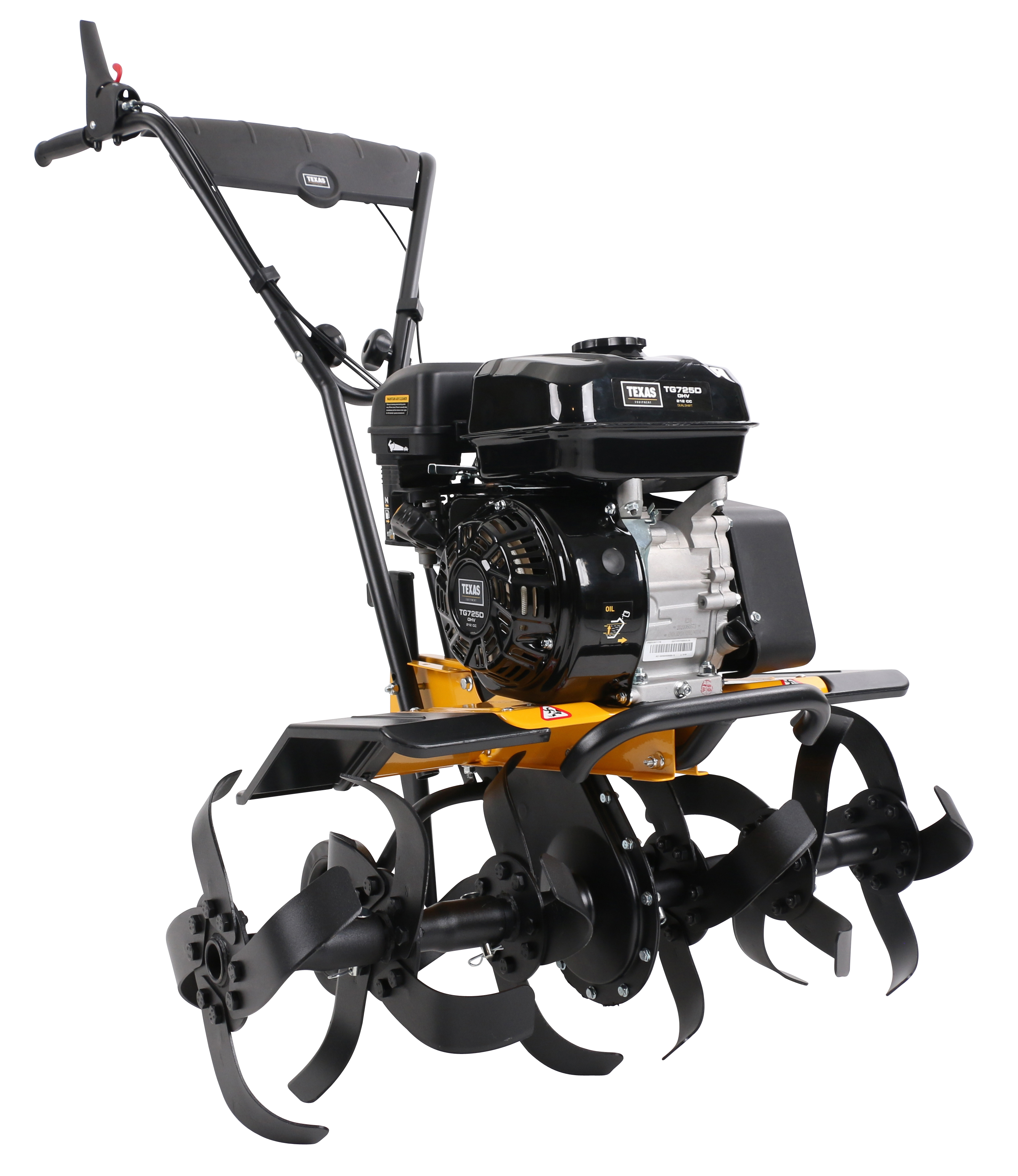

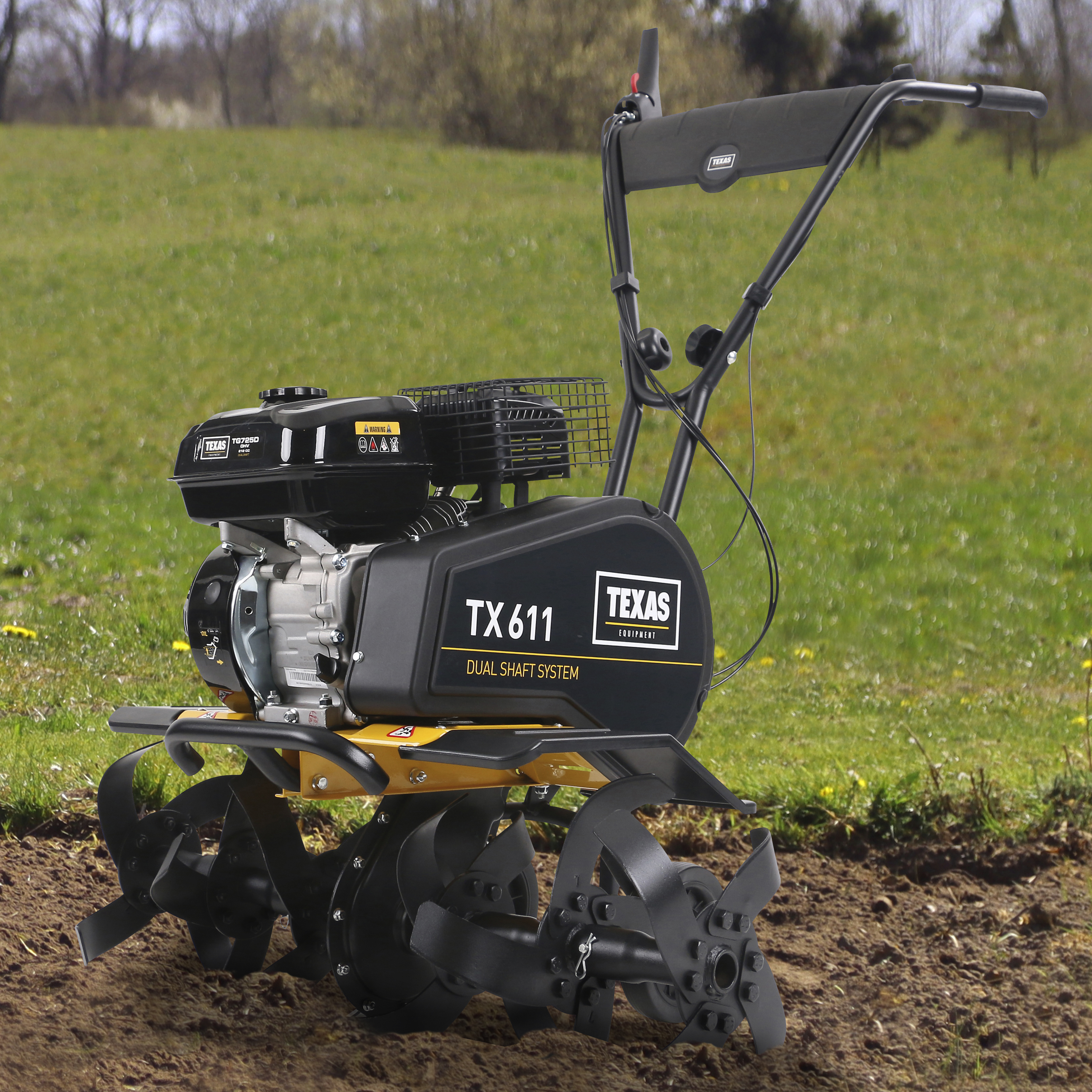

TX611TG tiller with the unique Dual Shaft gear system.

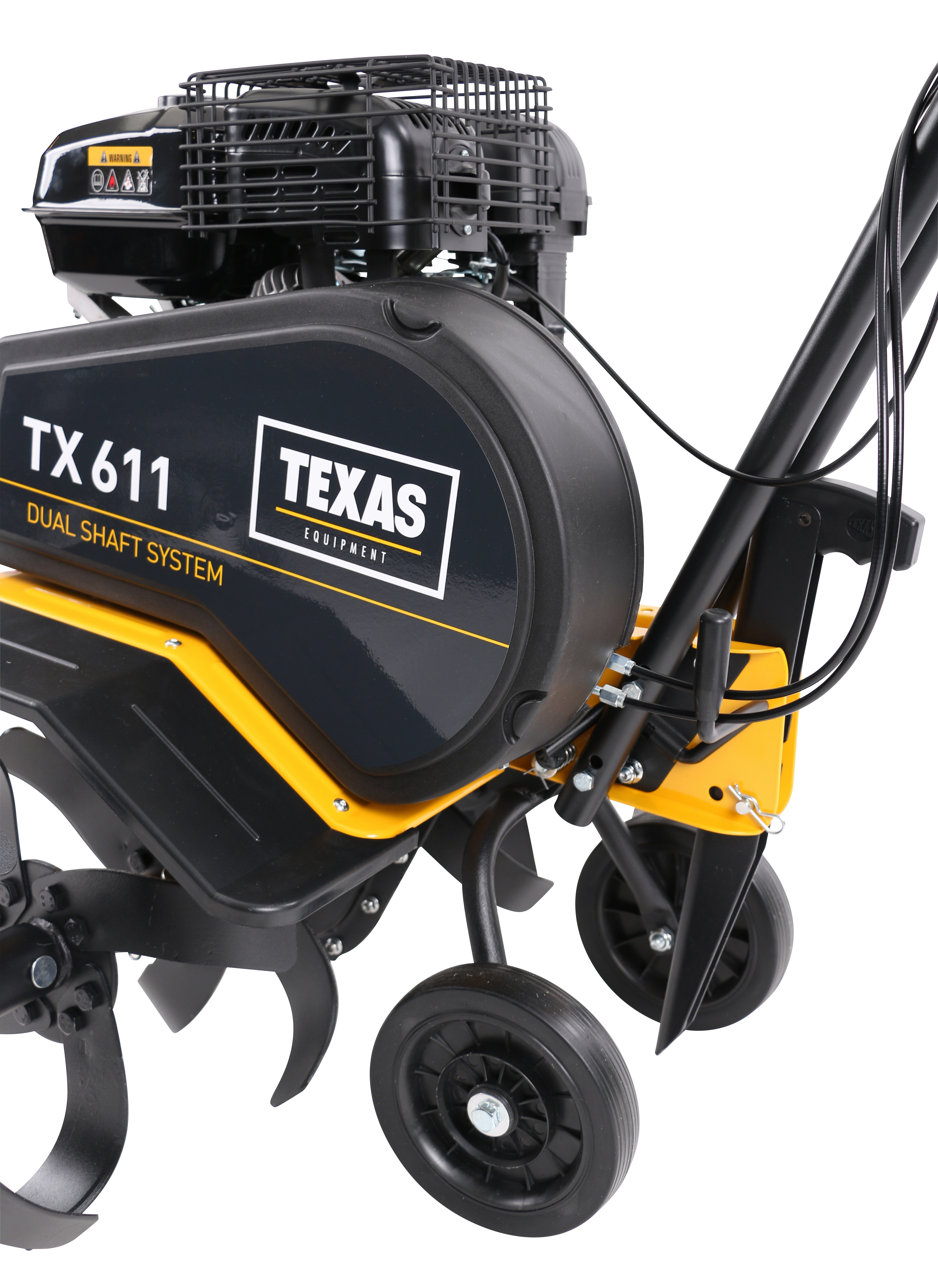

TEXAS Dual-shaft construction is made for increased reliability and better ratio power. The reverse gear is connected to the second crank shaft and in that way sensitive gear reduction parts and pulley system are hereby avoided - and increased lifetime is achieved.

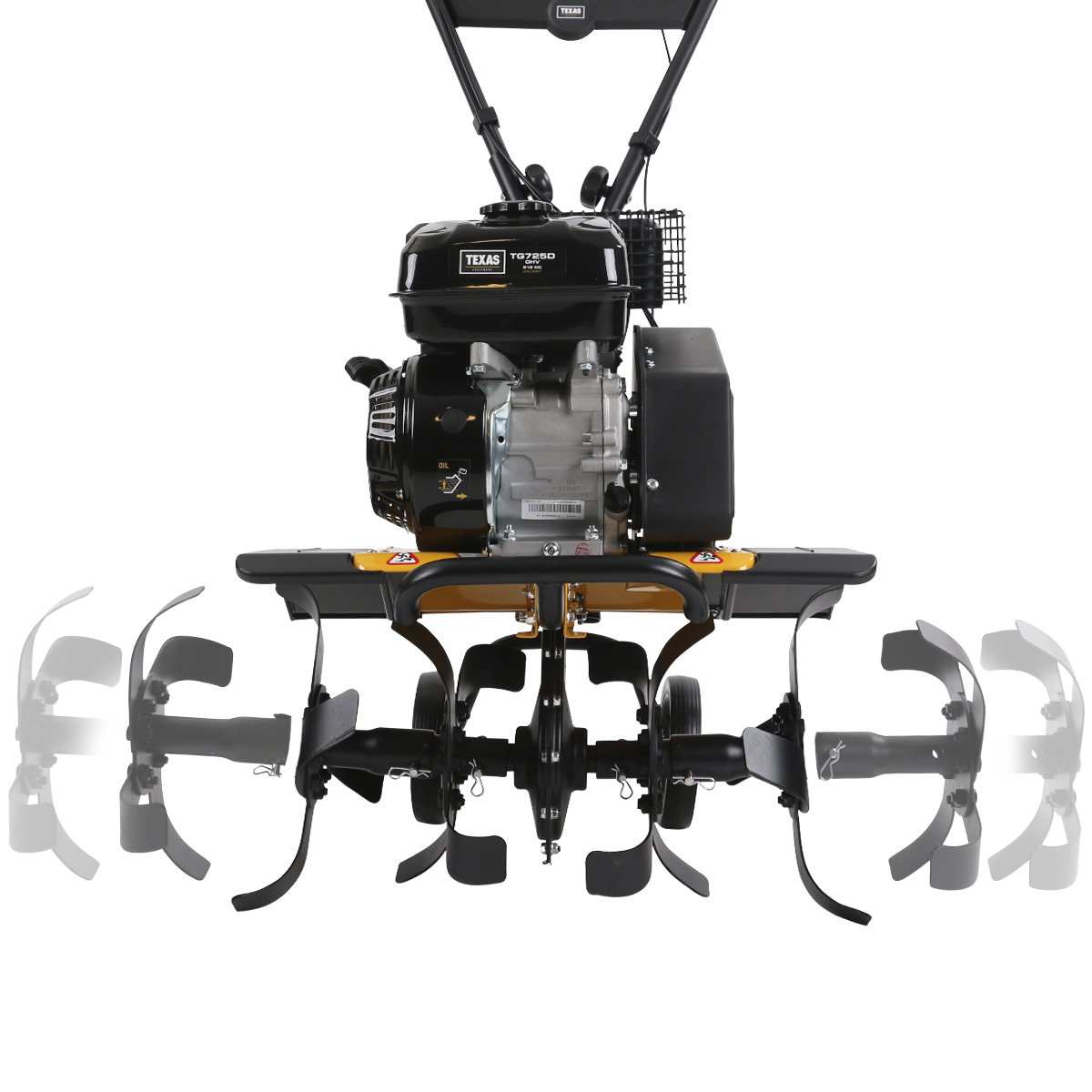

The working width can be adjusted between 30/55/85 cm.

This is a very powerful machine, designed for the demandng user.

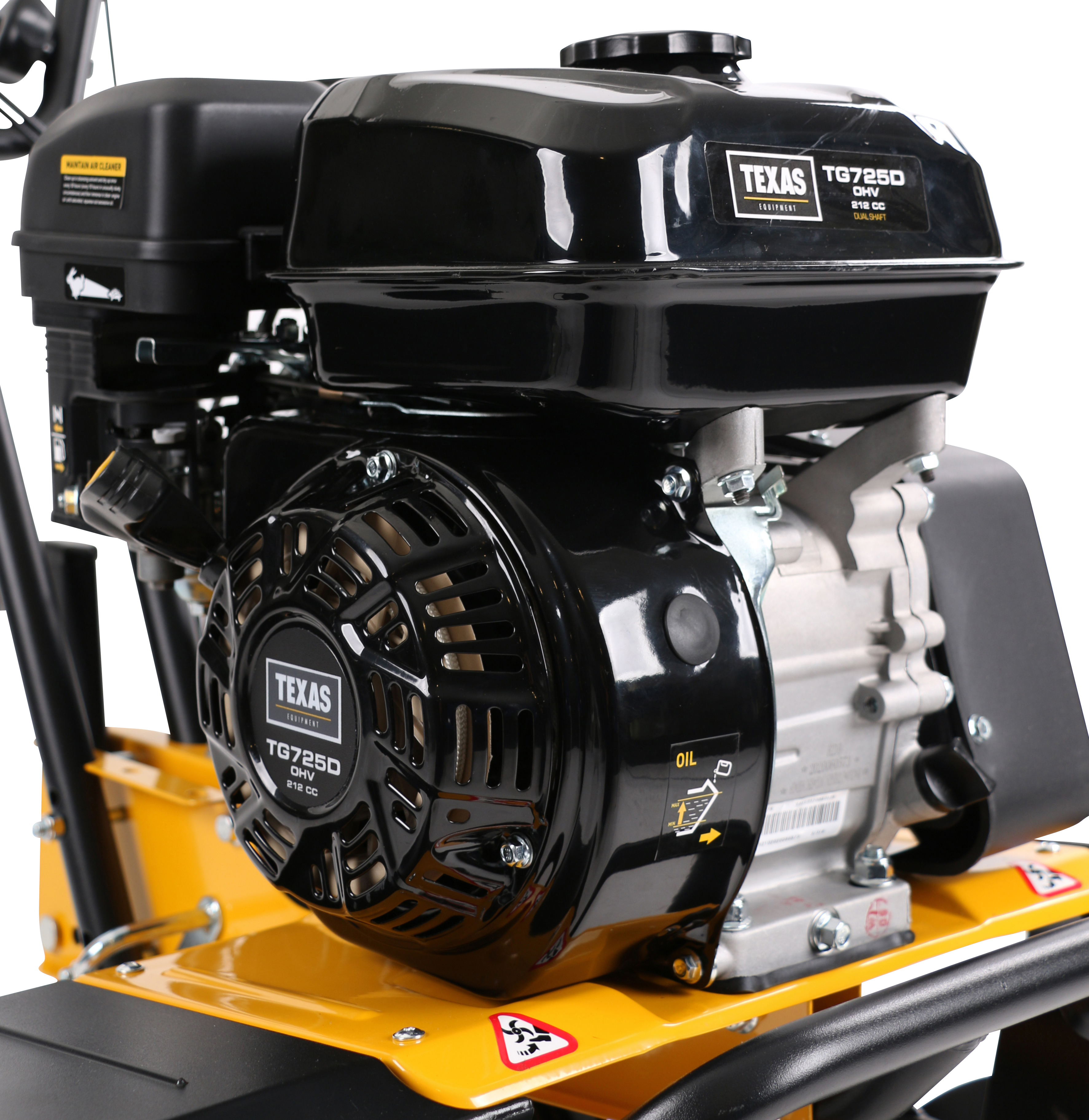

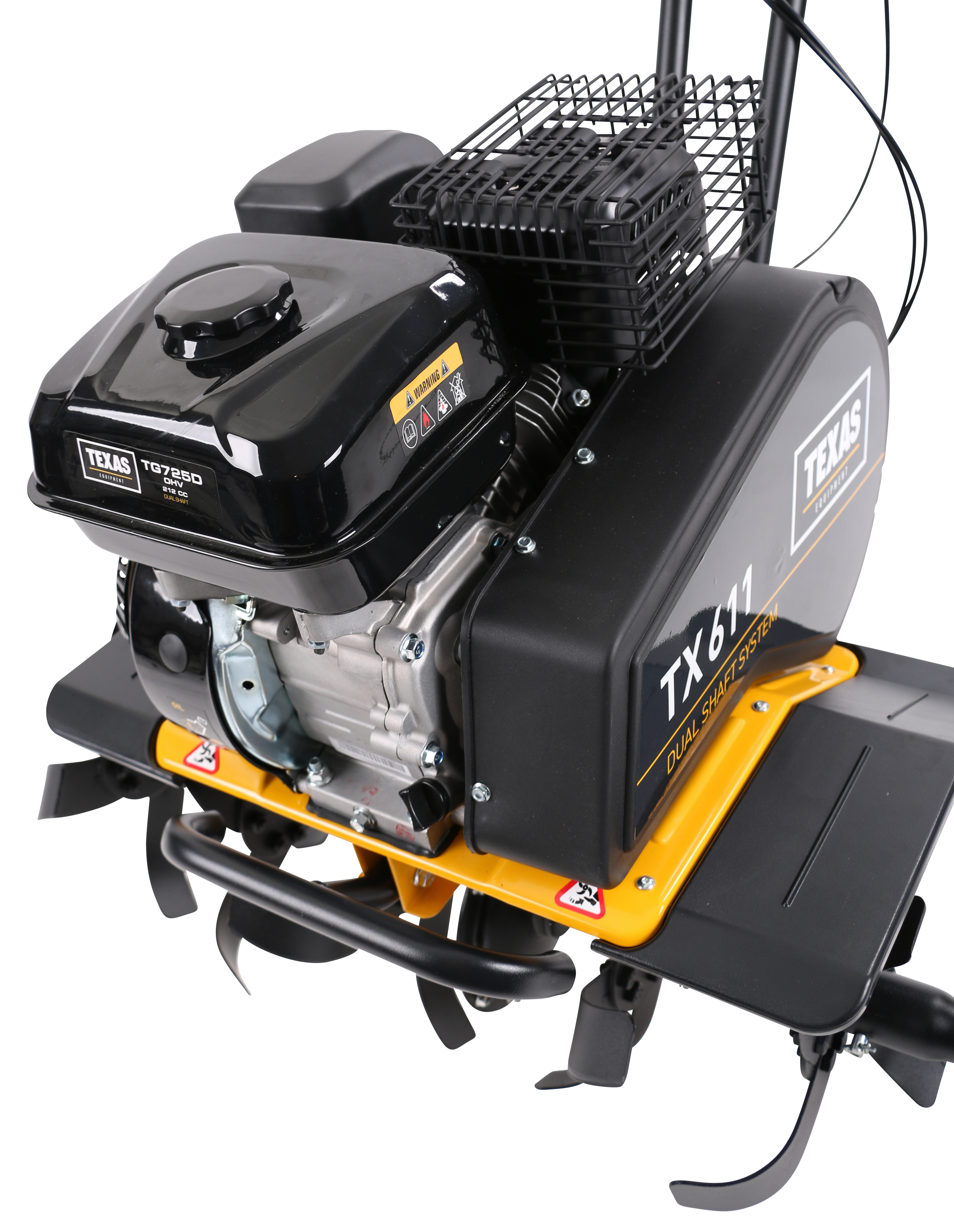

The tiller has a powerful 212 CC TG72 engine and 33 cm working depth.

The TX-series is Danish design and quality from TEXAS.

All TEXAS TX cutters have bolted and heat-cured blades.




Specifikationer


Engine
Engine : Texas
Engine model : TG725D
Engine type : 4 stroke
CC : 212 cc
Tank capacity : 3,6 litre
Power : 4,0 kW v. 3600 rev./min.
Spark plug : W20EPR-U (DENSO)
Airfilter : Foam
Valve adjustment (intake) : 0,15 mm
Valve adjustment (exhaust) : 0,20 mm
Cylinder : 1
Cooling system : Air cooled
Starter : Recoil
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Working depth : 33 cm
Speed of knife : 110 rev./min.
Working width : 30-85 cm

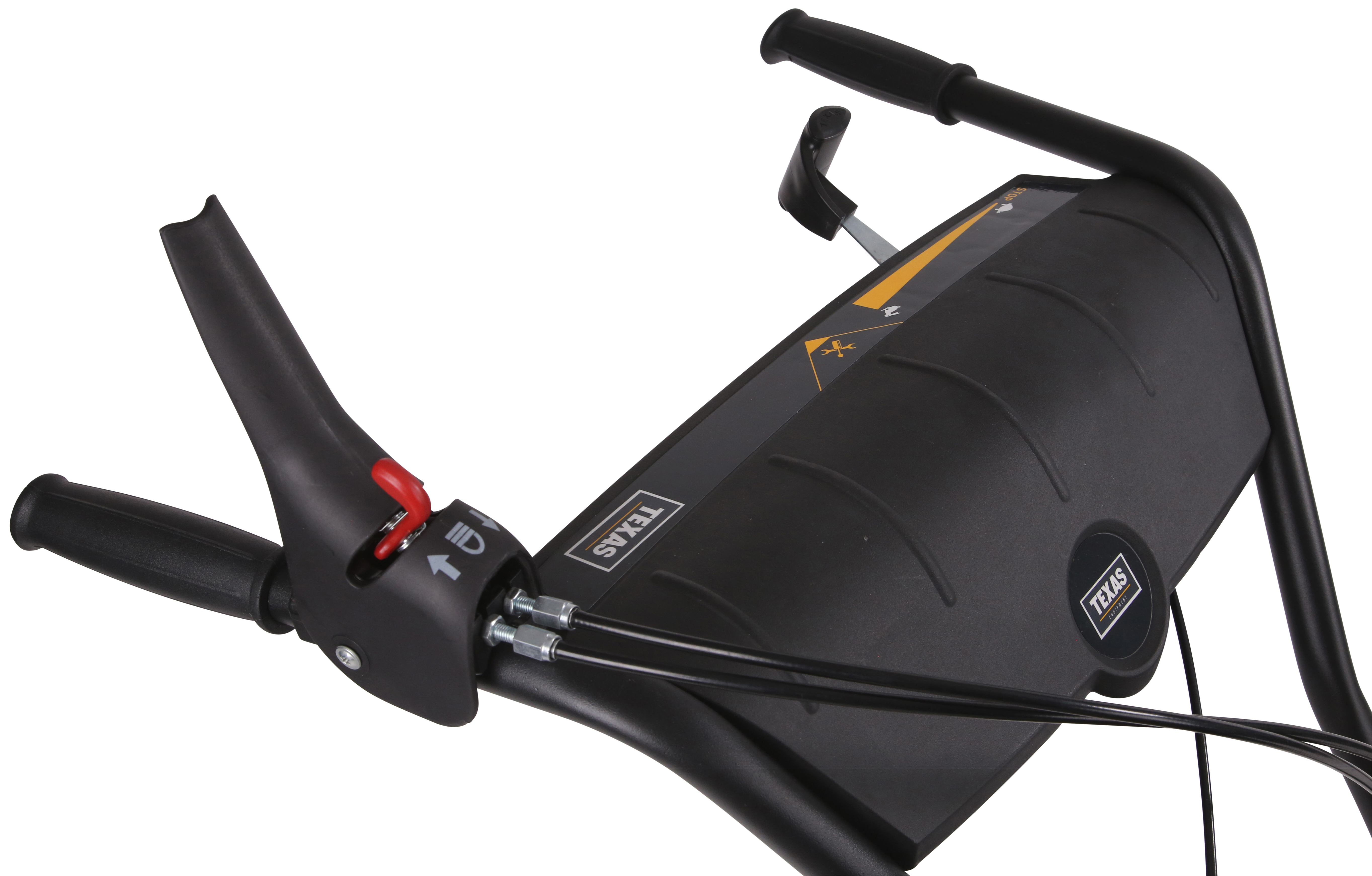

Handle
Foldable handle : Nej
Functions
Gas adjustment : Yes
Separated knives : Yes
Operation
Rearward gears : 1
Forward gears : 1
Emission
Level of vibration left handle : 8,57
Level of vibration right handle : 9,05
LWA guaranteed : 101
Features
Transport wheel : Ja (fodbetjent)
Bumper : Ja
Dimensions
Weight : 56,5 kg
Box width : 61 cm
Box length : 40 cm
Box height : 77 cm
