TX602B

Product data
Art no : 90061249
EAN : 5708906768721
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele
Manual Spare parts

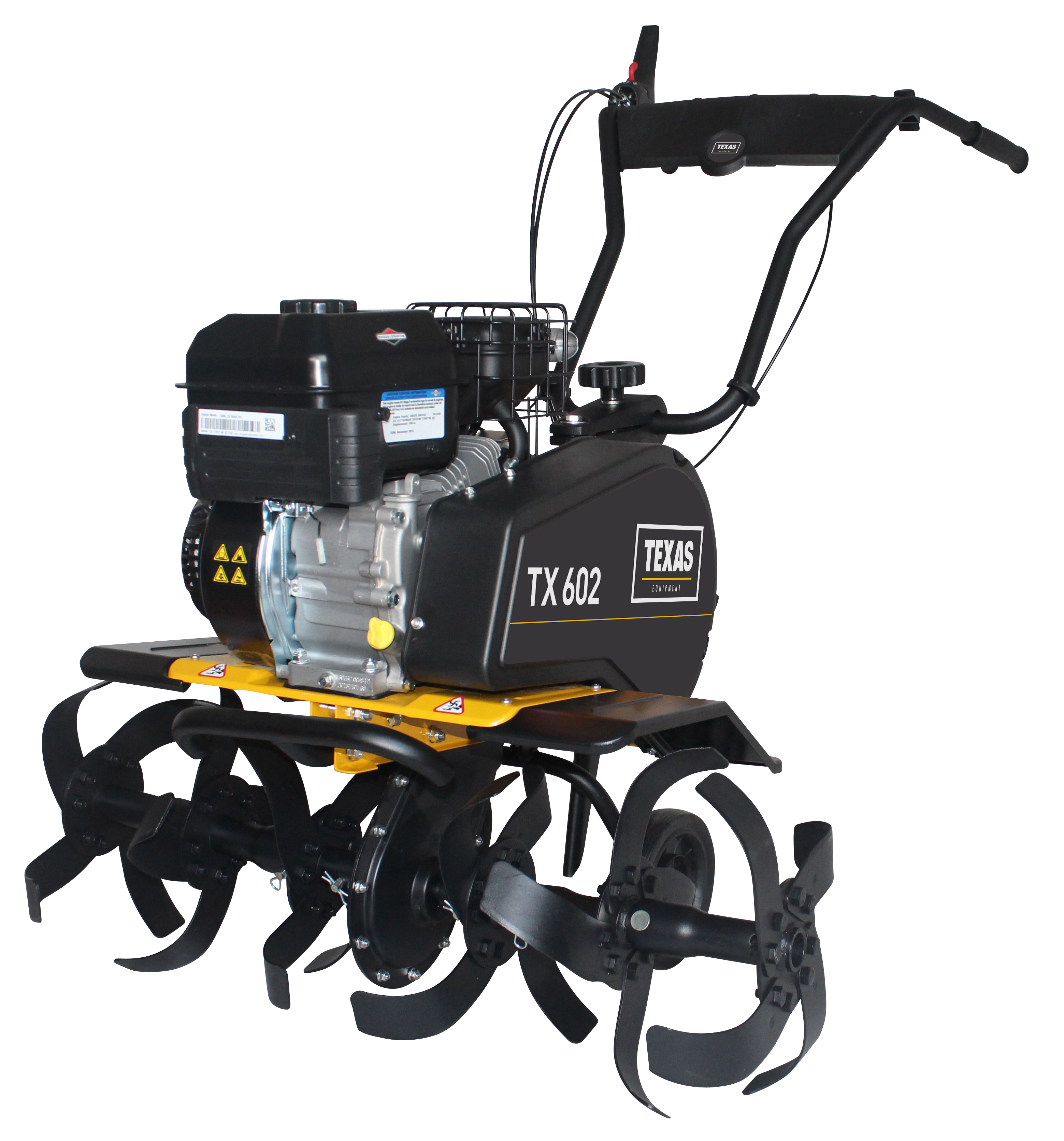

Productdescription TX602B


Tiller with powerful 208 cc Briggs & Stratton engine. With reverse gear for easier maneuvering and you avoid getting stuck during work.

The combination of light weight and a suitably high engine power makes the TX602 a highly efficient but easily manageable tiller which is easy to use and to transport.

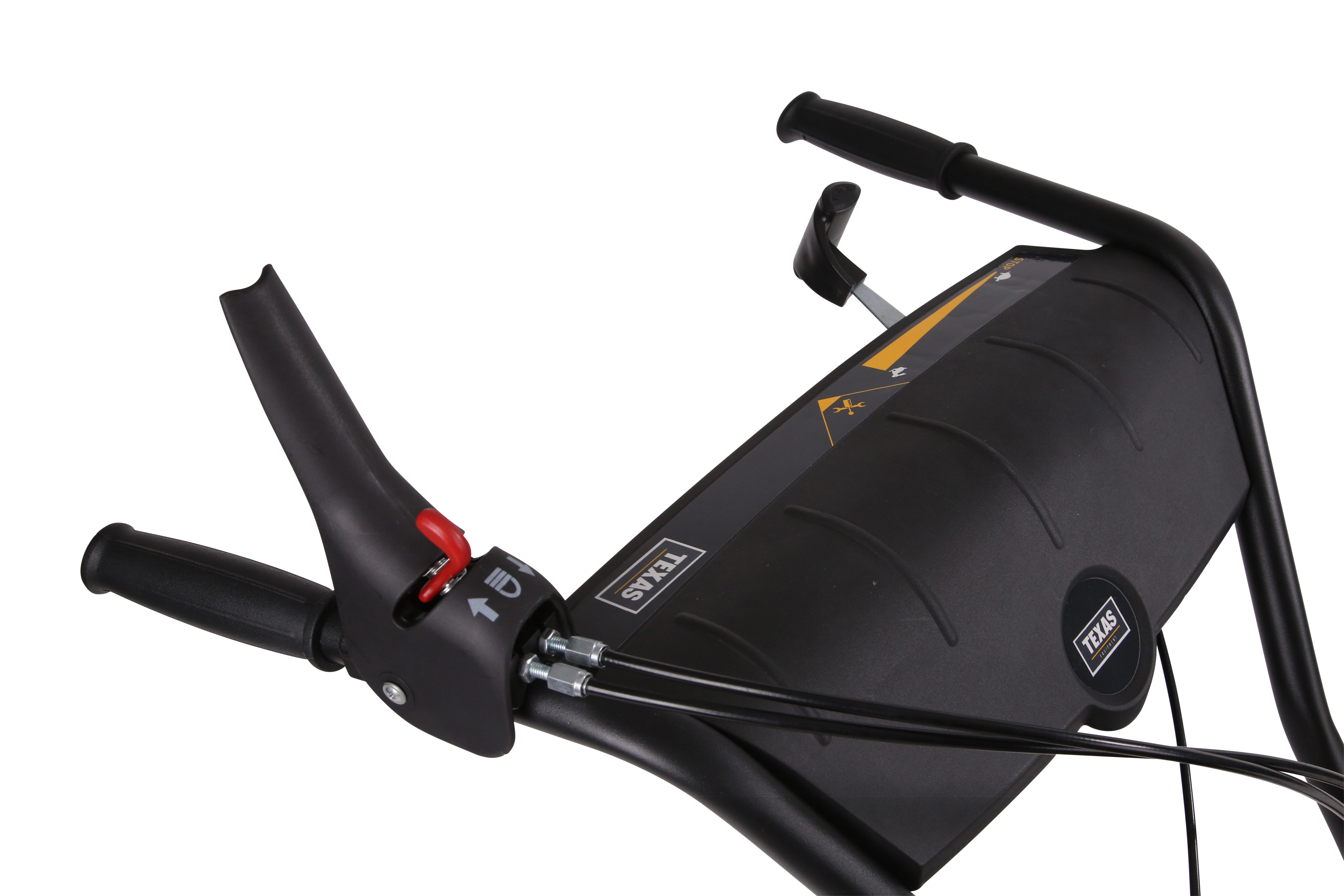

The TX602 is a universal cutter and is equipped with adjustable handlebars, ergonomic handles and foot-operated transport wheels.
It is built on a strong frame that makes it very stable during work.

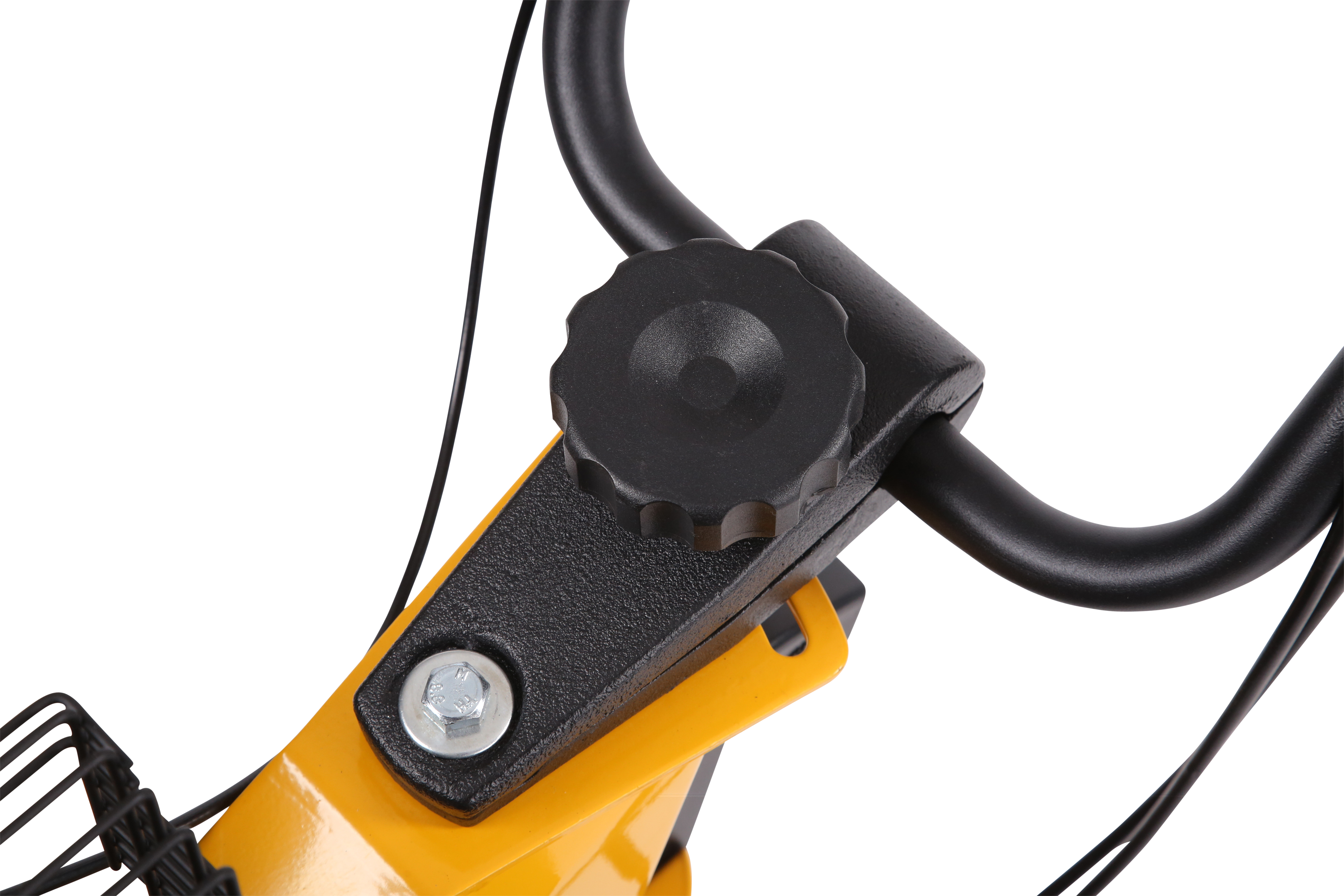

The working width can be adjusted between 30/55/85 cm. The handlebars are adjusted to both the side and the height so that it can be individually adapted for everyone.

TX-series is Danish design and quality from TEXAS.

All TEXAS TX tillers have bolted and specially heat threted blades




Specifikationer


Engine
Engine : Briggs & Stratton
Engine model : XR950 Series
Engine type : 4 stroke
CC : 208 cc
Tank capacity : 3,6 litre
Power : 4,5 kW v. 3600 rev./min.
Airfilter : Paper with foam filter
Valve adjustment (intake) : 0,15 mm
Valve adjustment (exhaust) : 0,20 mm
Cylinder : 1
Cooling system : Air cooled
Starter : Recoil
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Working depth : 33 cm
Speed of knife : 110 rev./min.
Working width : 30-85 cm
Handle
Foldable handle : Yes
Functions
Gas adjustment : Yes
Separated knives : Yes
Operation
Rearward gears : 1
Forward gears : 1
Emission
Level of vibration left handle : 8,57
Level of vibration right handle : 9,05
LWA guaranteed : 101
Features

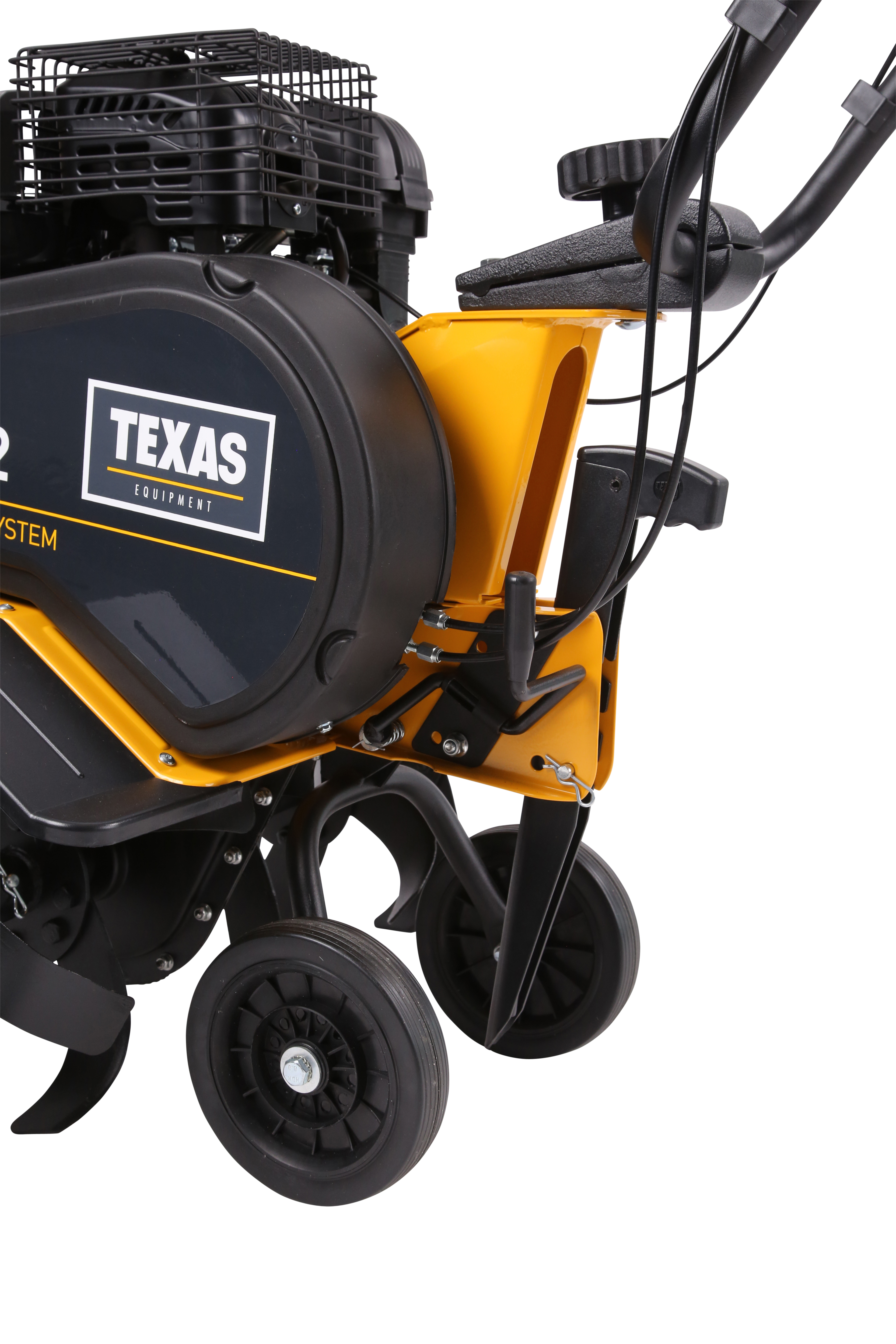

Transport wheel : Ja (fodbetjent)
Bumper : Ja
Dimensions
Weight : 58,5 kg
Box width : 61 cm
Box length : 44 cm
Box height : 81 cm
