Lilli 534TG Dual-Shaft
Description

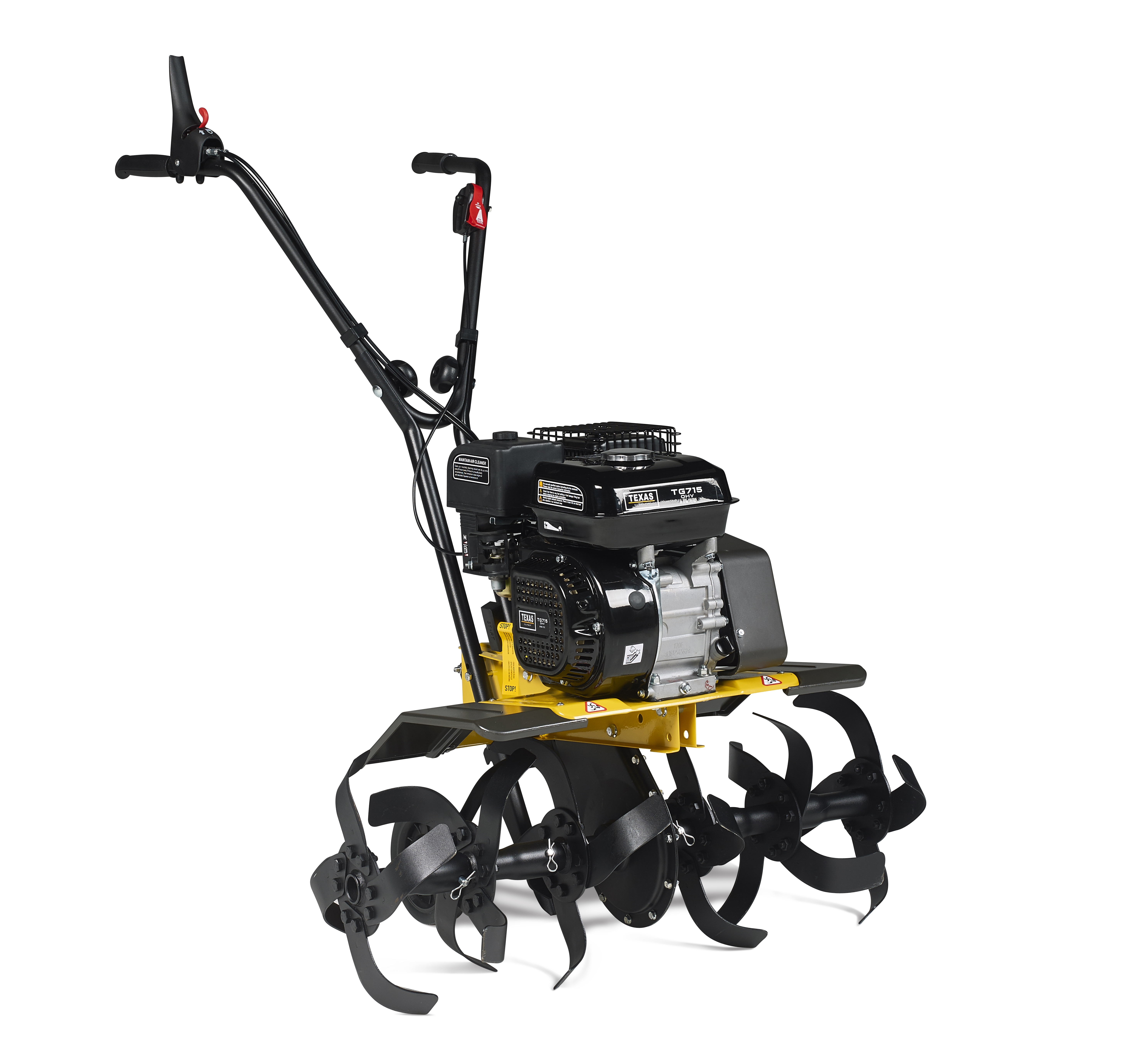

Lilli 534TG tiller with the unique Dual Shaft gear system. TEXAS Dual-shaft construction is made for increased reliability and better ratio power. The reverse gear is connected to the second crank shaft and in that way sensitive gear reduction parts and pulley system are hereby avoided - and increased lifetime is achieved.
This is a very powerful machine, designed for the demandng user.
The tiller has a powerful 208 cc TG715D engine, adjustable working width between 36/57/85 cm and 33 cm working depth.

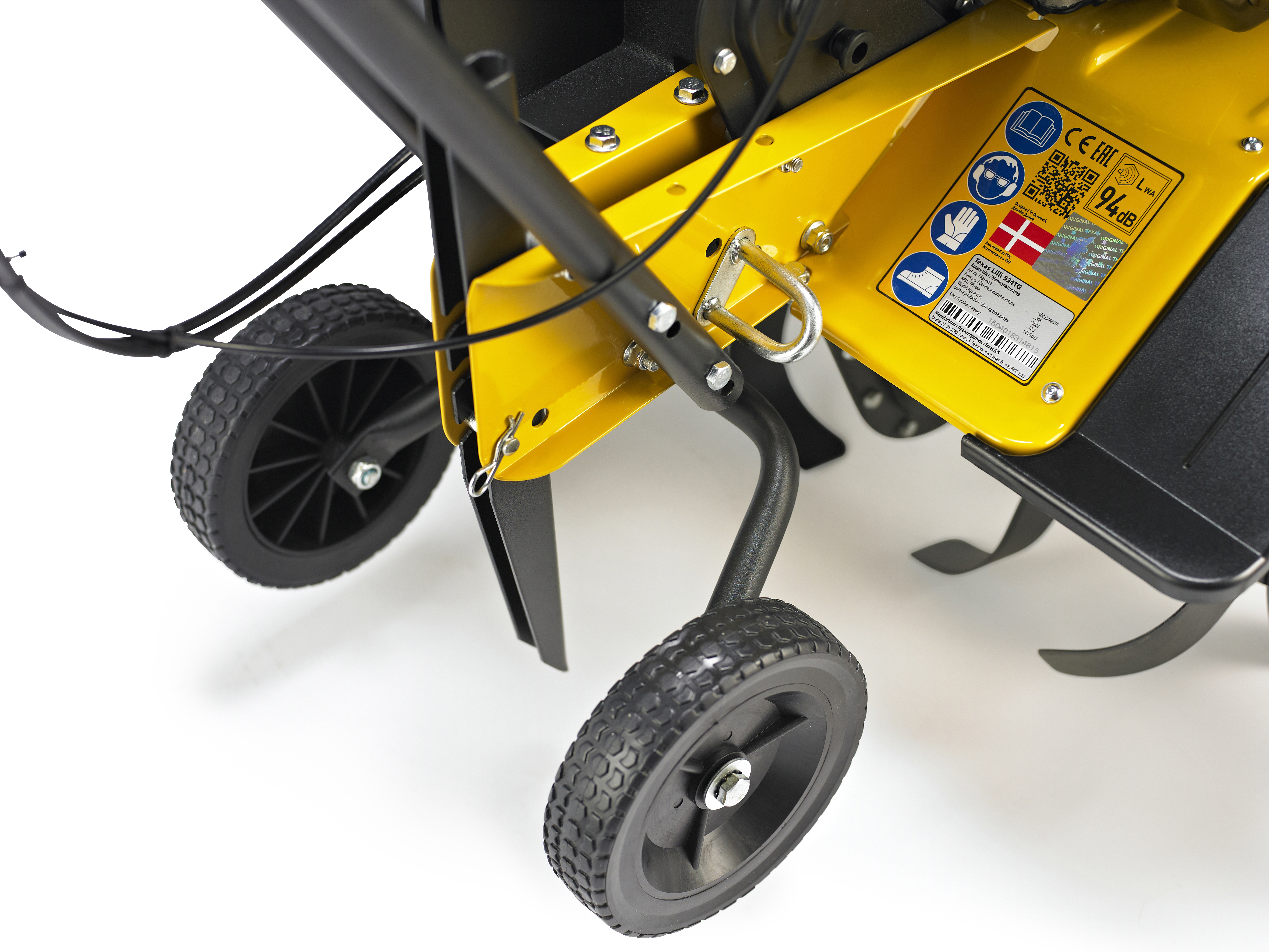

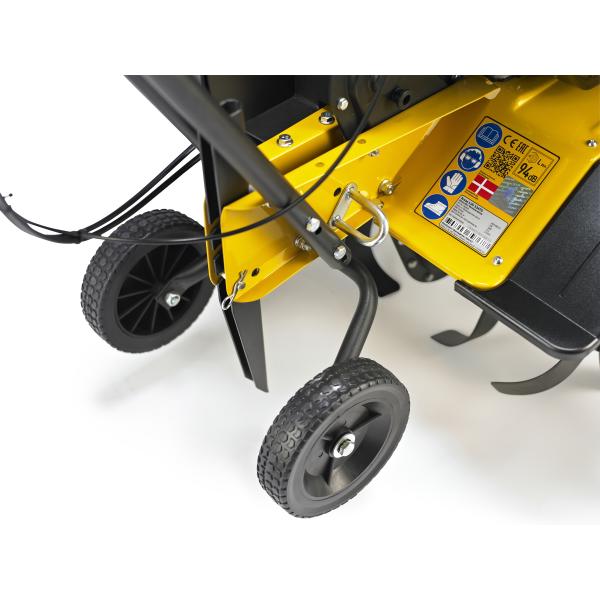

Lilli is a multi-machine fitted with strong and fixed handlebar, ergonomic handles and rearmounted transport wheels which are manually adjusted.
It is built on a strong construction that makes it very stable during work.
Lilli series is Danish design and quality from TEXAS.

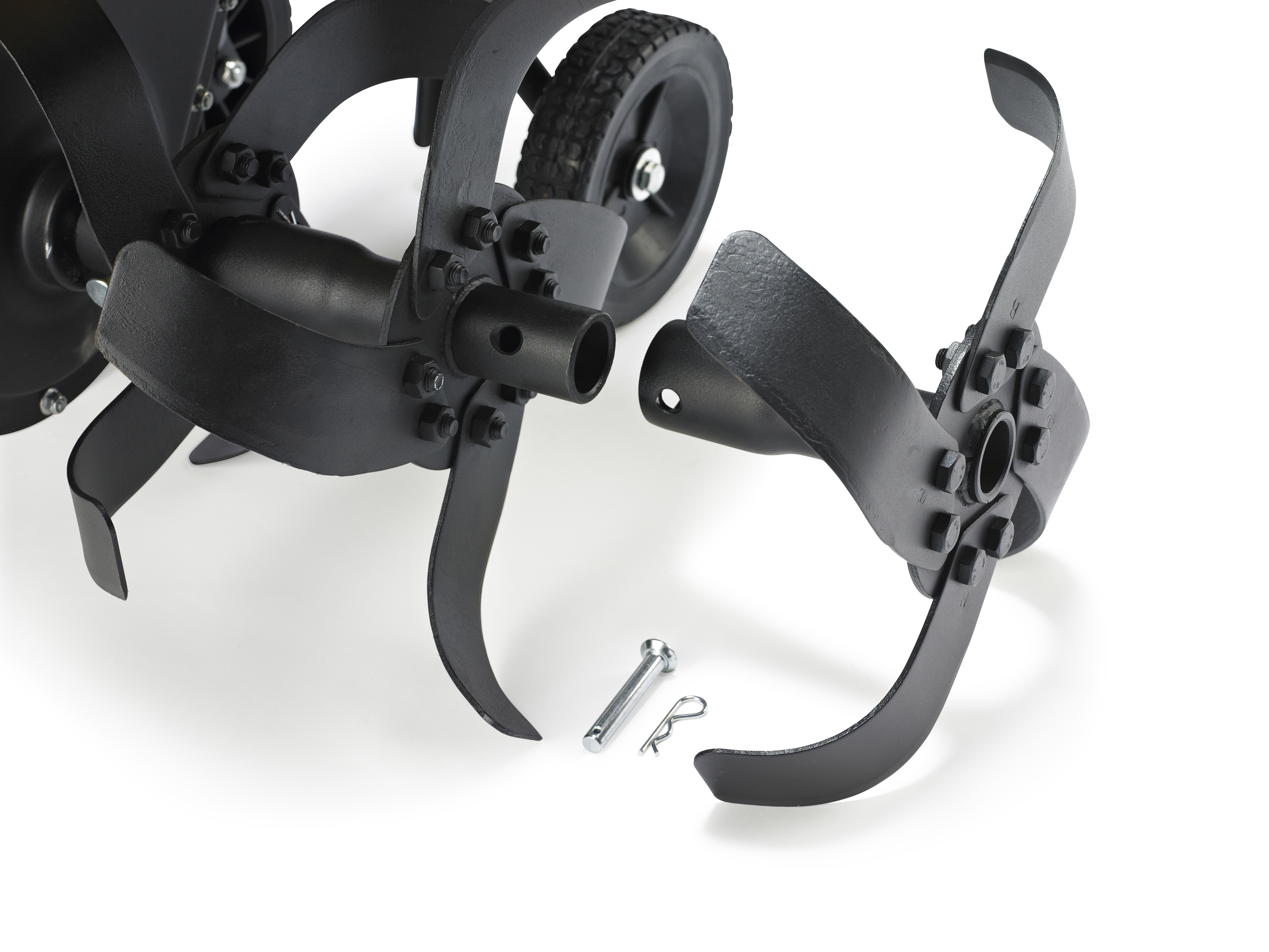

All TEXAS Lilli tillers have bolted and specially heat treated blades.
Video
Note: Video can be seen over the model.
Specifications
Starter
: Recoil
Airfilter
: Paper with foam filter
Cylinder
: 1
Gasoline/diesel
: Gasoline
Forward gears
: 1
Gas adjustment
: Yes
Weight
: 52,5 kg
Box width
: 61 cm
Box length
: 40 cm
Box height
: 77 cm
Engine type
: 4 stroke
Speed of knife
: 160 rev./min.
Separated knives
: Yes
Rearward gears
: 1
Engine model
: TG715D
Working width
: 36-55-85 cm
Working depth
: 33 cm
Foldable handle
: Nej
CC
: 208 cc
Cooling system
: Air cooled
Power
: 4,0 kW v. 3600 rev./min.
Engine oil
: 0,6 litre
Tank capacity
: 3,6 litre
Handle bar
: Firm
Oil
: SAE 30
Engine
: Texas
Bumper
: Nej
LWA guaranteed
: 101
Transport wheel
: Yes (operated by hand)
Manual
Spare part drawing
Lilli 534TG tiller with the unique Dual Shaft gear system. TEXAS Dual-shaft construction is made for increased reliability and better ratio power. The reverse gear is connected to the second crank shaft and in that way sensitive gear reduction parts and pulley system are hereby avoided - and increased lifetime is achieved.
This is a very powerful machine, designed for the demandng user.
The tiller has a powerful 208 cc TG715D engine, adjustable working width between 36/57/85 cm and 33 cm working depth.
Lilli is a multi-machine fitted with strong and fixed handlebar, ergonomic handles and rearmounted transport wheels which are manually adjusted.
It is built on a strong construction that makes it very stable during work.
Lilli series is Danish design and quality from TEXAS.
All TEXAS Lilli tillers have bolted and specially heat treated blades.
Note: Video can be seen over the model.
| Starter | : Recoil |
| Airfilter | : Paper with foam filter |
| Cylinder | : 1 |
| Gasoline/diesel | : Gasoline |
| Forward gears | : 1 |
| Gas adjustment | : Yes |
| Weight | : 52,5 kg |
| Box width | : 61 cm |
| Box length | : 40 cm |
| Box height | : 77 cm |
| Engine type | : 4 stroke |
| Speed of knife | : 160 rev./min. |
| Separated knives | : Yes |
| Rearward gears | : 1 |
| Engine model | : TG715D |
| Working width | : 36-55-85 cm |
| Working depth | : 33 cm |
| Foldable handle | : Nej |
| CC | : 208 cc |
| Cooling system | : Air cooled |
| Power | : 4,0 kW v. 3600 rev./min. |
| Engine oil | : 0,6 litre |
| Tank capacity | : 3,6 litre |
| Handle bar | : Firm |
| Oil | : SAE 30 |
| Engine | : Texas |
| Bumper | : Nej |
| LWA guaranteed | : 101 |
| Transport wheel | : Yes (operated by hand) |
