Handy Sweep 710B

Product data
Art no : 90067520
EAN : 5708906897421
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele
Manual Spare parts

Video

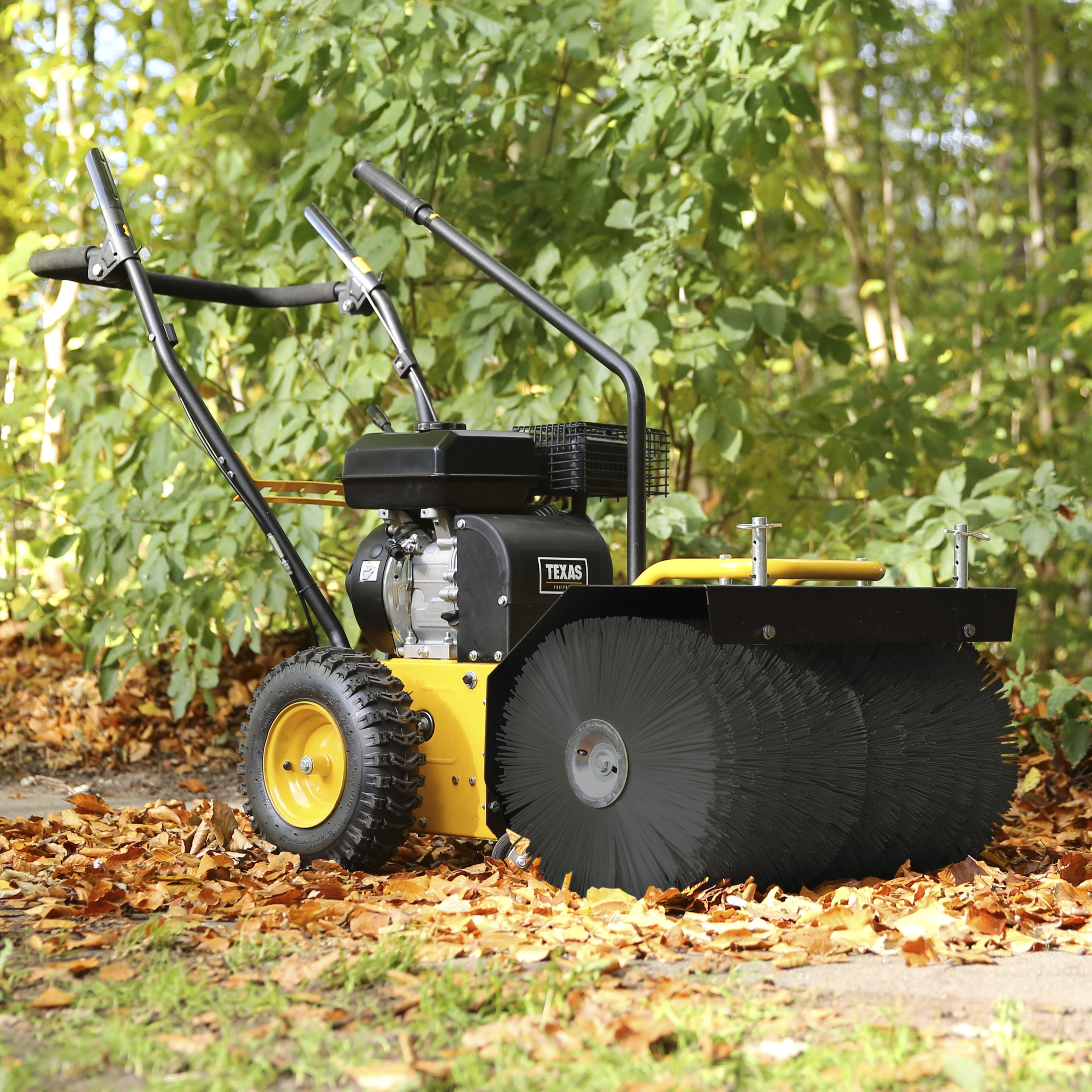

Productdescription Handy Sweep 710B


Handy Sweep 710B is a compact and efficient sweeper. The sweeper is equipped with a powerful B&S 950 series engine. The sweeper is suitable for large corner grounds, sidewalks and parking lots. The sweeper has a strong clutch levers which puts the machine in motion (3 forward + 1 reverse). Handy Sweep 710B has an ergonomic swing handle, which allows the diet can be turned to the right or left. The machine has a working width of 70 cm and is equipped with powerful welded nylon brushes for increased durability. The big snow also provides a good grip when it's slippery.



Specifikationer


Engine
Engine : Briggs & Stratton
Engine model : XR950 Series
Engine type : 4 stroke
CC : 208 cc
Tank capacity : 3,1 litre
Power : 4,2 kW v. 3600 rev./min.
Airfilter : Paper with foam filter
Cylinder : 1
Cooling system : Air cooled
Starter : Recoil
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Number of swivelling positions : 3
Broom diameter : 350 mm
Working width : 70 cm
broom speed : 350 rev./min.
Functions
Adjustable sweeper : Yes
Speed : 1,0 - 2,1 - 4,3 km/hr
Operation
Rearward gears : 1
Forward gears : 3
Wheels
Big air pressured rubber wheels : Inflatable rubber tyres
Emission
Level of vibration left handle : 4,83
Level of vibration right handle : 5,34
LWA guaranteed : 101
Dimensions
Weight : 82,5 kg
Box width : 99 cm
Box length : 65 cm
Box height : 78 cm
