Snow King 568TG

Product data
Art no : 90062513
EAN : 5708906996636
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele
Manual Spare parts

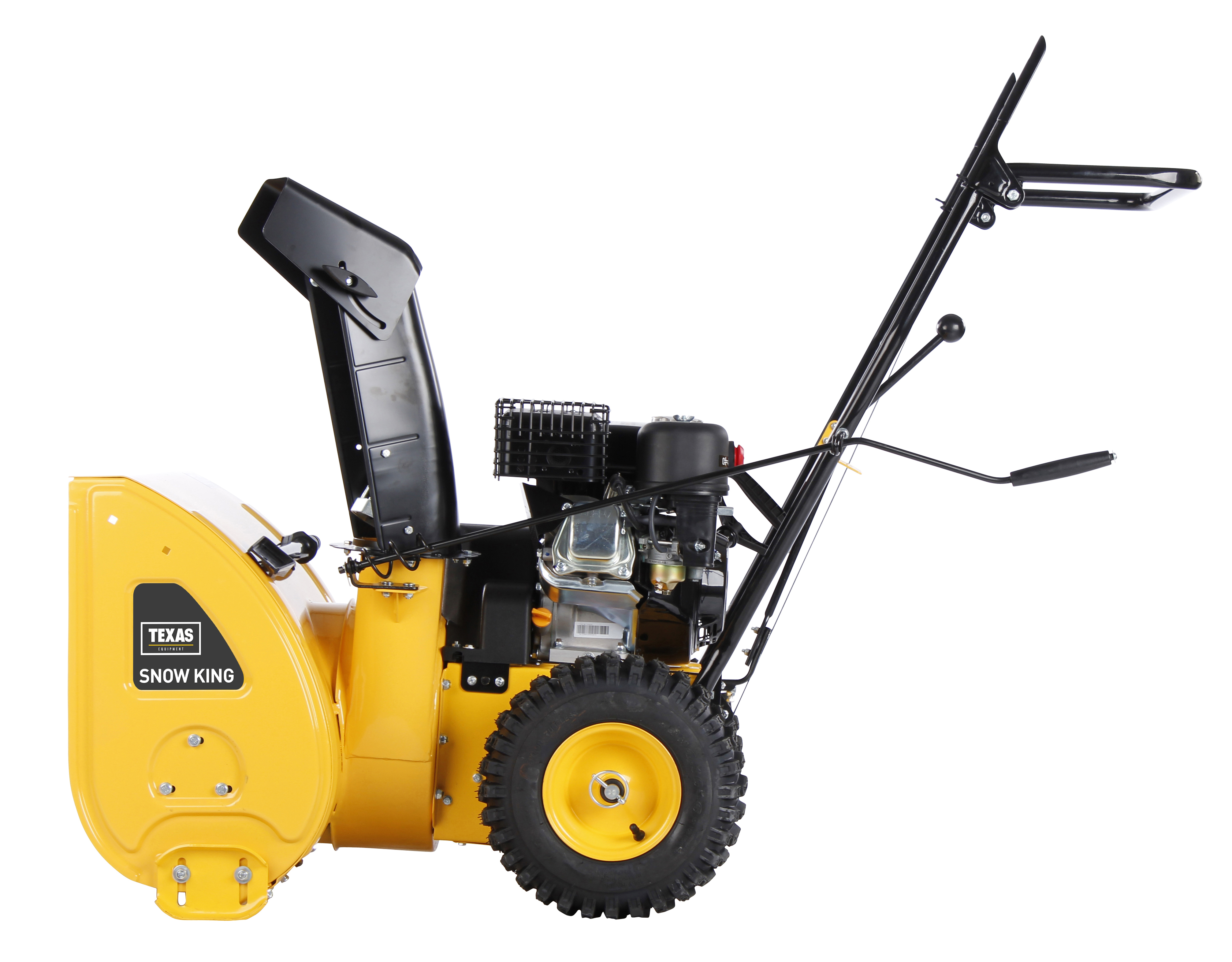

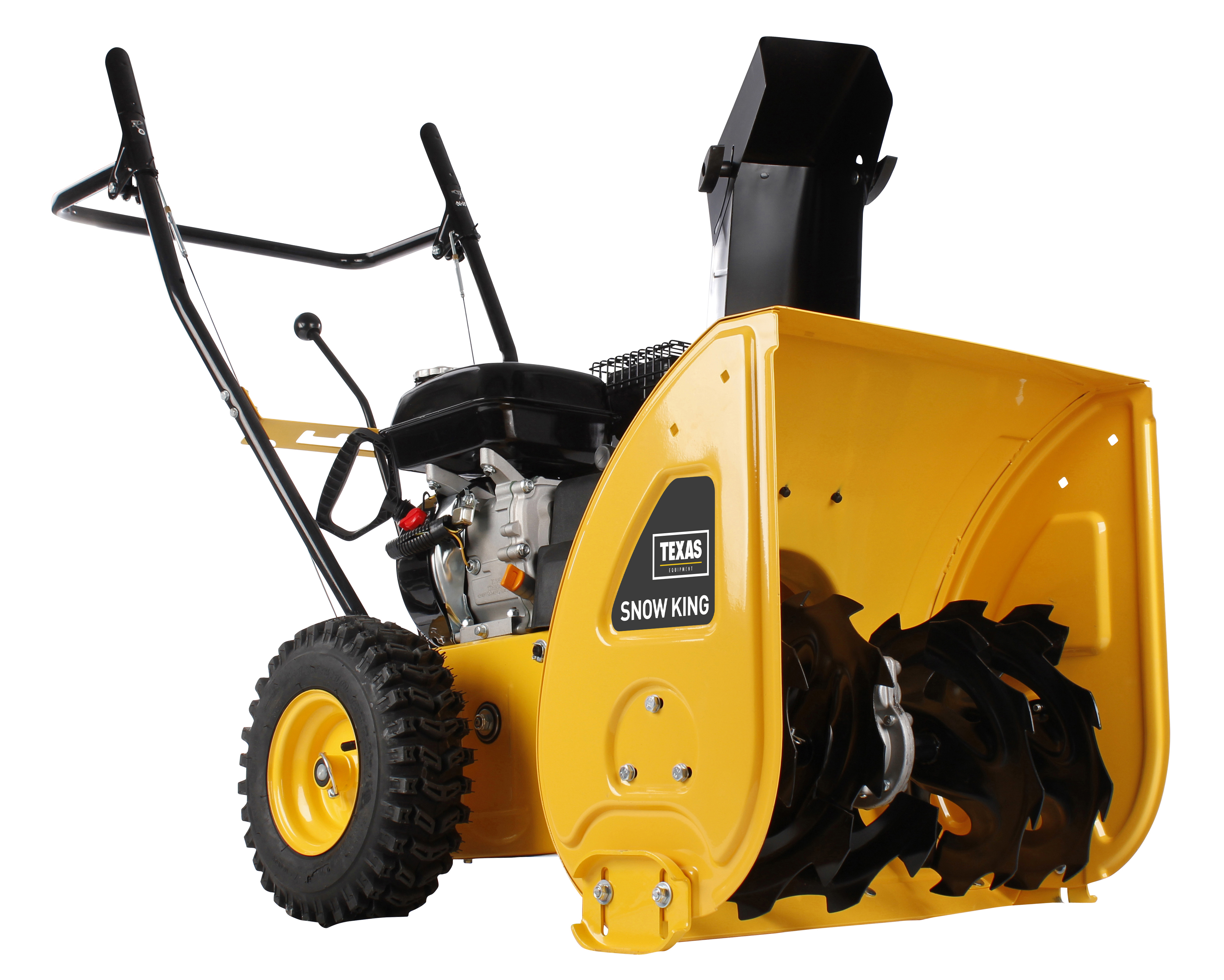

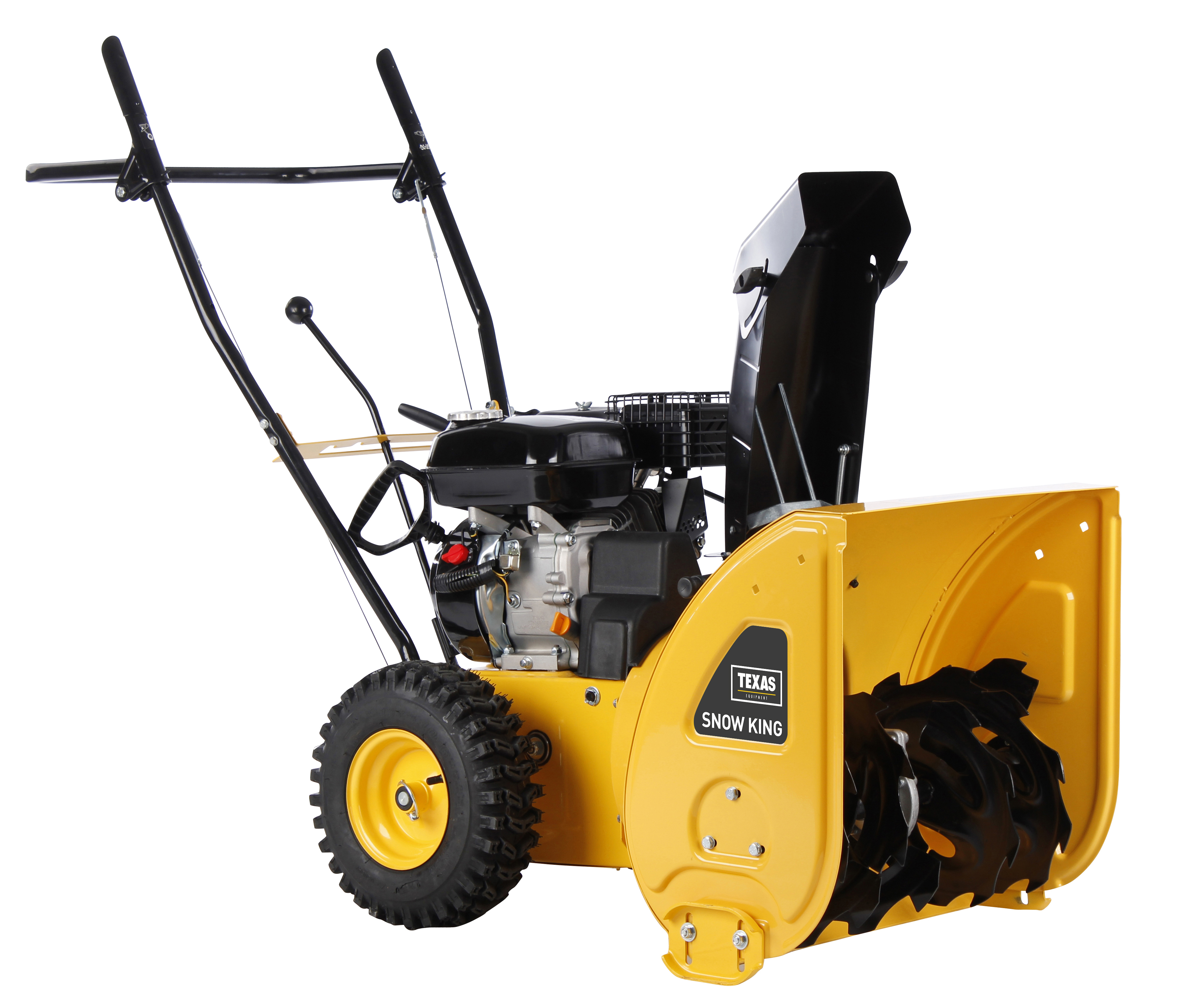

Productdescription Snow King 568TG


Snow King 568TG is made from robust high-quality material and built to be used for many hours every day.

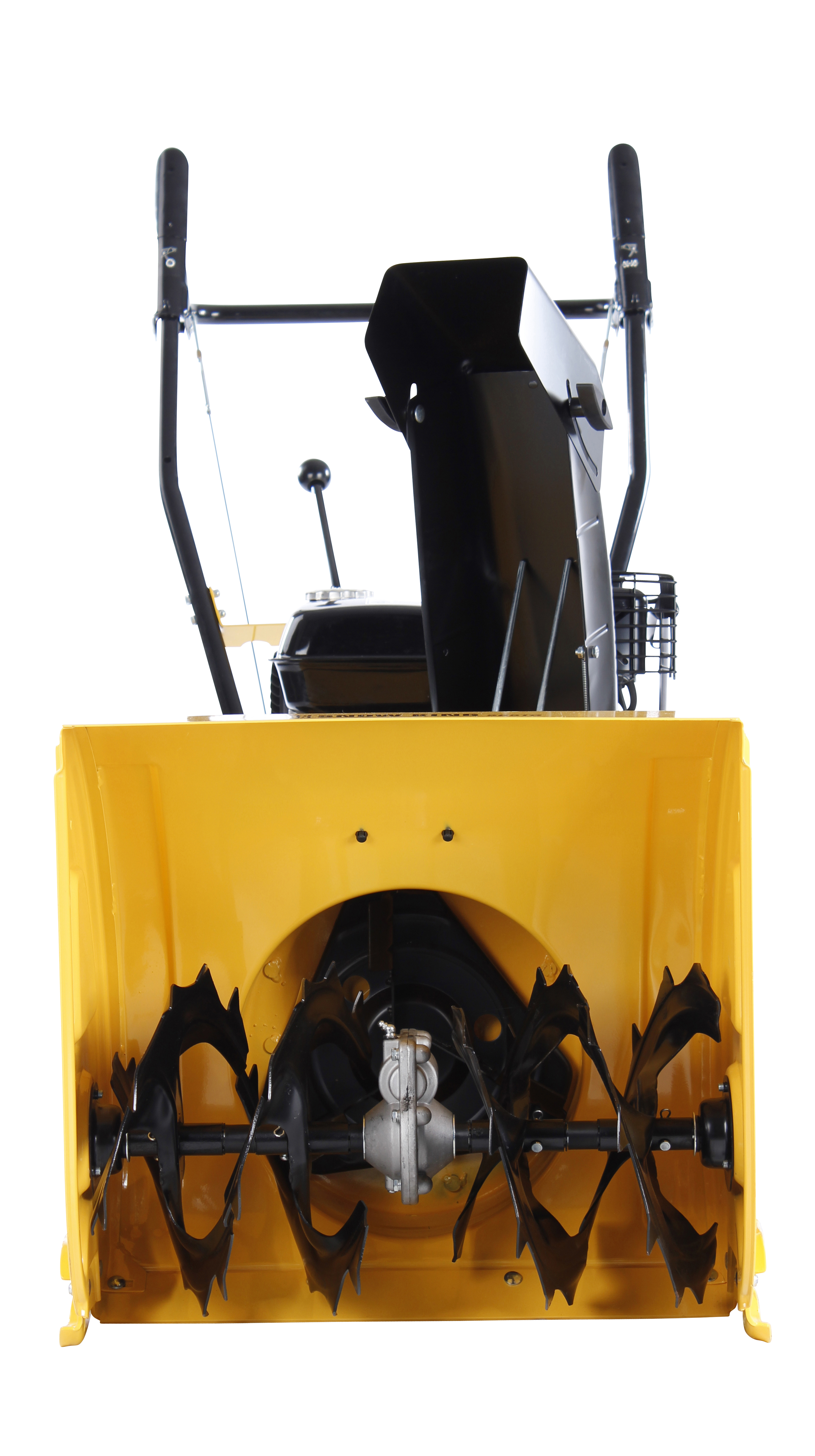

This model like the other Snow King models, has a 2-stage ejector system that can eject snow up to 15 m away. The ejector can turn 190 degrees, which means the user can precisely set it to the desired direction.
With a working width of 56 cm and a working height of 51 cm, the machine can clear large volumes of snow in short periods of time.

Focus on the user
Snow King 568TG is equipped with many clever details that make it very easy to use. This includes the large 13'' snow tyres that ensure the snow blower is stable when operating and the strong clutch handle on the handlebars is easy to use when the operator is wearing gloves.

Snow King 568TG has an optimal weight distribution, with the engine positioned in the rear of the machine, which means the snow blower is easy to manoeuvre when turning and when transporting.

The skid on the side of the snow blower can easily be adjusted to the desired distance you want from the auger to the ground.

Powerful gear type
Snow King 568TG is developed with a plate gear, which is an extremely stable and powerful type of gear that is used by most snow blowers. A ''safety bolt'' is fitted on the auger and it will release if it hits a large stone. This safety measure is to protect the gear.

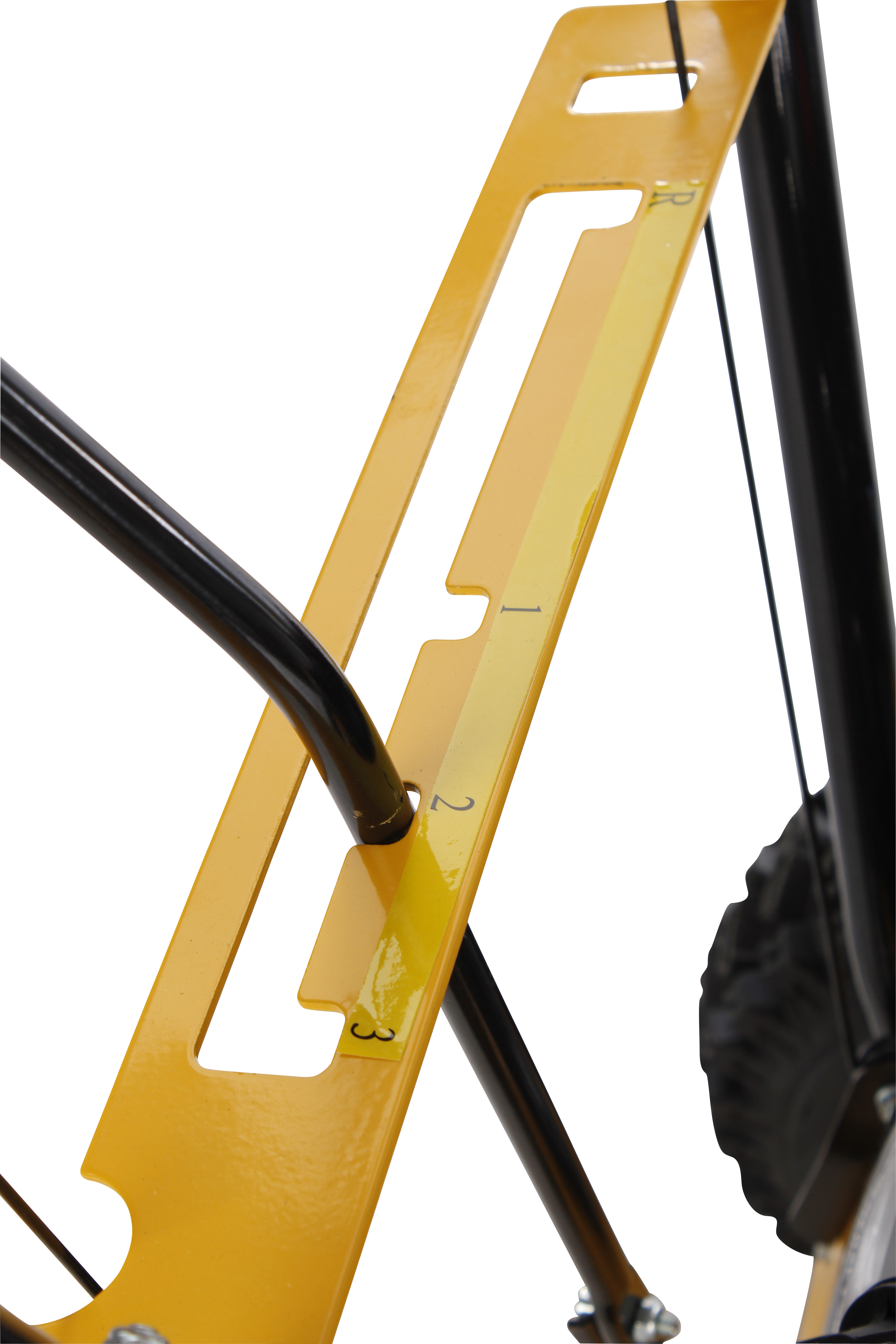

There are three forward gears and one reverse gear, so that the operator can work with the precise desired speed. This makes the snow blower easy to manoeuvre in tight areas.

Reliable engine
Snow King 568TG is equipped with a strong and reliable Loncin 4-stroke 196 cc engine. This engine provides enough power to deal with large amount of snow.




Specifikationer


Engine
Engine : Loncin
Engine model : G200F
Engine type : 4 stroke
CC : 196 cc
Tank capacity : 3,6 litre
Power : 4,1 kW v. 3600 rev./min.
Starter : Recoil
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Ejector steps : 2
Working width : 56 cm
Functions
Distance from : 8-15 m
Work height : 51 cm
Speed : 2,5-4,5 km/hr
Operation
Capacity : 1120 m2/hour
Rearward gears : 1
Forward gears : 3
Wheels
Big air pressured rubber wheels : Inflatable rubber tyres
Wheel size : 4.10-6
Emission
Level of vibration handle : 4,65
LWA guaranteed : 102
Dimensions
Weight : 75 kg
Box width : 90 cm
Box length : 62 cm
Box height : 69 cm
