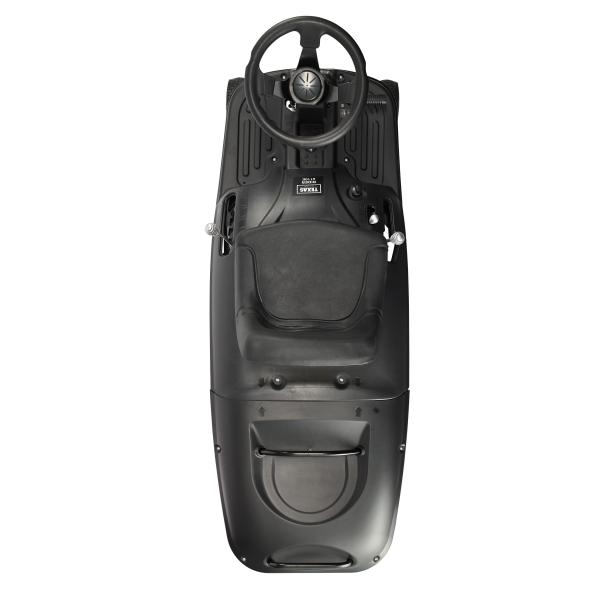

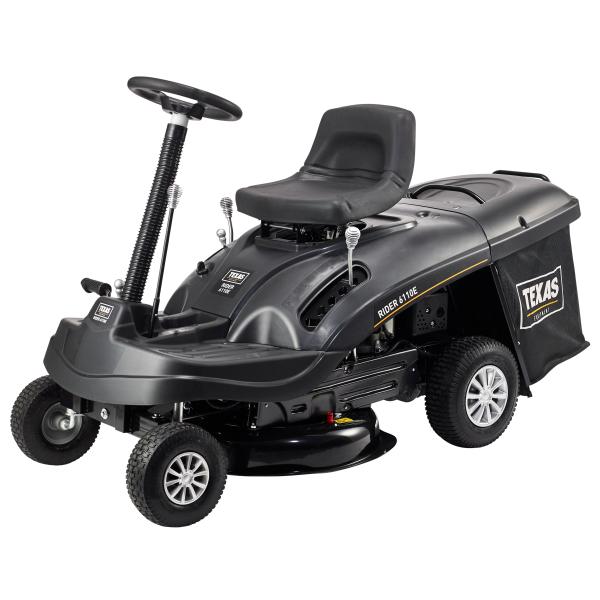

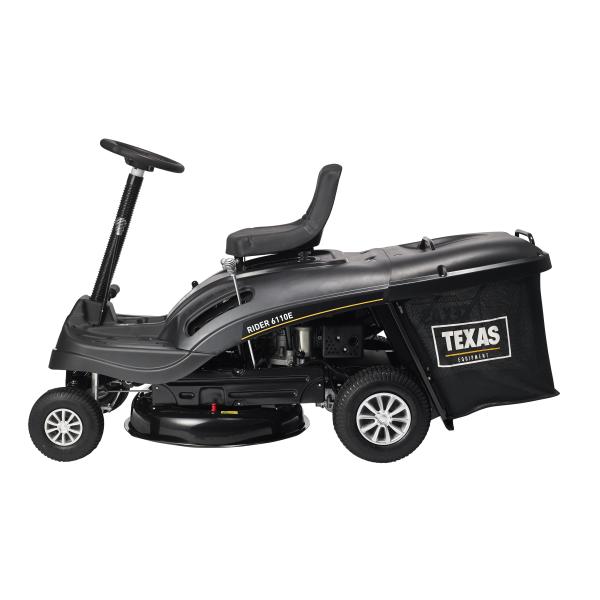

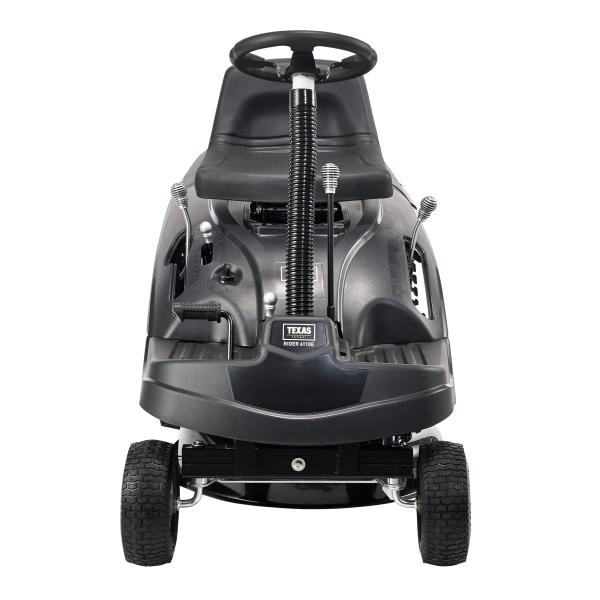

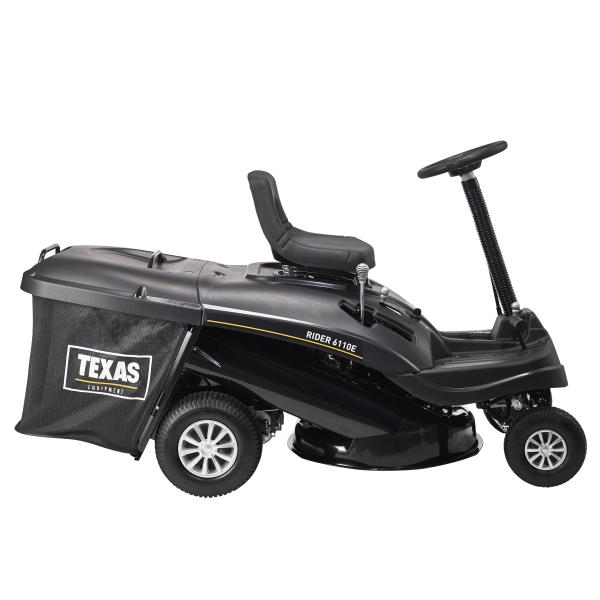

Rider 6110E

Product data
Art no : 90063140
EAN : 5708906984312
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele

Productdescription Rider 6110E


TEXAS Rider 6110E is a small and compact ride-on-mower with easy operation and suitable for gardens between 600-1200 m2.

TEXAS Rider 6110E is a side discharge model, and electric start makes it easy to start the engine.

The 150 L collector box can easily be emptied from the seat by lifting in the rear handle of the collector.

Rider 6110E is recommended for lawns that are relatively flat.




Specifikationer


Engine
Engine : Loncin
Engine model : Loncin LC1P70FA
Engine type : 4 stroke
CC : 196 cc
Tank capacity : 1,1 litre
Power : 4,8 kW
Power : 3600 rev./min.
Starter : Electric/recoil start
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Mulching : Nej
Dispatch tupe : Nej
Functions
Cutting height : 35-75 mm
Cutting width : 61 cm
Trailer hook : Ja
Number of knives : 1 pce.
Height ajustment : Central
Knife : Metal
Kniv clutch : Manual
Shield material : Steel
Number of high adjustments : 5 positions
Speed : 1,5-4,6 km/hr
Operation
Rear wheel drive : Yes
Rearward gears : 1
Forward gears : 4
Gear system : Manual
Wheels
Wheel size front : 10''
Big air pressured rubber wheels : Inflatable rubber tyres
Wheel size rear : 13''
Battery
Power : 12V/7 Ah
Emission
LWA guaranteed : 98
Features
Collecting box : 150 litre
Dimensions
Machine width : 70 cm
Machine length : 175 cm
Machine height : 98 cm
Weight : 115 kg
Box width : 150 cm
Box length : 75 cm
Box height : 75 cm
