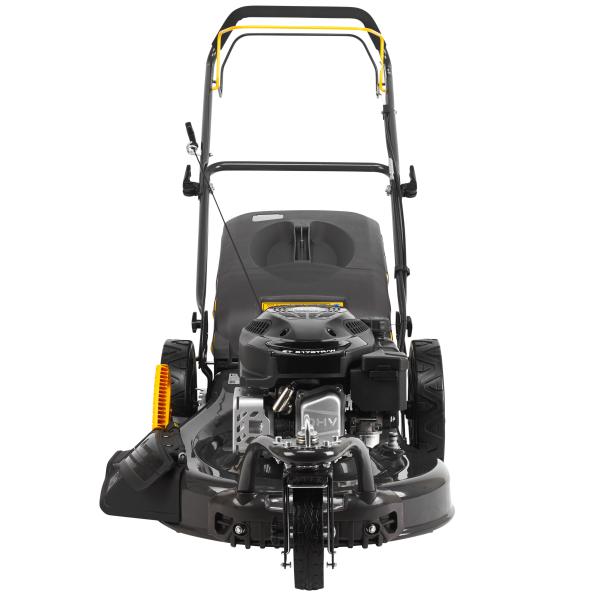

ZT 5175TR/W
Description
The innovative ZT series from TEXAS is lawn mowers developed specifically for the demanding user's needs.
This model has only 3 wheels, which makes the mower ideal for maneuvering around trees, flower beds etc.
The front wheel can easily be locked for straight-ahead driving only, or it can be turned freely for optimum maneuverability.
The design gives a new and smart look and the new 46 cm cutting decks are all designed to ensure an even better collection of all grass types.
The ZT 5175TR/W is fitted with the new RV-series of engines from TEXAS and here with a 170 cc engine. The mower is a push model and has a cutting width of 51 cm.
The model has a large handle for height adjustment so that the cutting height can be quickly and easily adjusted in 6 different positions from 28-75 mm.
Video
Note: The video may cover multiple models.
Specifications
Starter
: Recoil
Airfilter
: Foam
Cylinder
: 1
Gasoline/diesel
: Gasoline
Cutting height
: 25-75 mm
Mulching
: Yes
Number of high adjustments
: 6 positions
Dispatch tupe
: Yes
Number of knives
: 1 pce.
Shield material
: Steel
Weight
: 29,8 kg
Box width
: 77 cm
Box length
: 56 cm
Box height
: 48 cm
Engine type
: 4 stroke
Engine model
: RV170
Pull
: Yes
Collecting box
: 75 litre
Height ajustment
: Central
Knife
: Metal
CC
: 170 cc
Power
: 2,8 kW v. 2900 rev./min.
Wheel size front
: 7''
Wheel size rear
: 11''
Engine oil
: 0,45 litre
Tank capacity
: 1 litre
Handle bar
: Adjustable
Rear discharge
: Yes
Noise level
: 98 dB
Oil
: SAE 30
Cutting width
: 51 cm
Engine
: Texas
Bioplug
: Ja
Speed forward max
: 3,6 km/hr
Rear wheel drive
: Yes
Manufacturer
: Texas A/S
Manual
Spare part drawing
The innovative ZT series from TEXAS is lawn mowers developed specifically for the demanding user's needs.
This model has only 3 wheels, which makes the mower ideal for maneuvering around trees, flower beds etc.
The front wheel can easily be locked for straight-ahead driving only, or it can be turned freely for optimum maneuverability.
The design gives a new and smart look and the new 46 cm cutting decks are all designed to ensure an even better collection of all grass types.
The ZT 5175TR/W is fitted with the new RV-series of engines from TEXAS and here with a 170 cc engine. The mower is a push model and has a cutting width of 51 cm.
The model has a large handle for height adjustment so that the cutting height can be quickly and easily adjusted in 6 different positions from 28-75 mm.
Note: The video may cover multiple models.
| Starter | : Recoil |
| Airfilter | : Foam |
| Cylinder | : 1 |
| Gasoline/diesel | : Gasoline |
| Cutting height | : 25-75 mm |
| Mulching | : Yes |
| Number of high adjustments | : 6 positions |
| Dispatch tupe | : Yes |
| Number of knives | : 1 pce. |
| Shield material | : Steel |
| Weight | : 29,8 kg |
| Box width | : 77 cm |
| Box length | : 56 cm |
| Box height | : 48 cm |
| Engine type | : 4 stroke |
| Engine model | : RV170 |
| Pull | : Yes |
| Collecting box | : 75 litre |
| Height ajustment | : Central |
| Knife | : Metal |
| CC | : 170 cc |
| Power | : 2,8 kW v. 2900 rev./min. |
| Wheel size front | : 7'' |
| Wheel size rear | : 11'' |
| Engine oil | : 0,45 litre |
| Tank capacity | : 1 litre |
| Handle bar | : Adjustable |
| Rear discharge | : Yes |
| Noise level | : 98 dB |
| Oil | : SAE 30 |
| Cutting width | : 51 cm |
| Engine | : Texas |
| Bioplug | : Ja |
| Speed forward max | : 3,6 km/hr |
| Rear wheel drive | : Yes |
| Manufacturer | : Texas A/S |
ZT 5175TR/W
Art. number: 90066263
EAN: 5714829003856
Description
The innovative ZT series from TEXAS is lawn mowers developed specifically for the demanding user's needs.
This model has only 3 wheels, which makes the mower ideal for maneuvering around trees, flower beds etc.
The front wheel can easily be locked for straight-ahead driving only, or it can be turned freely for optimum maneuverability.
The design gives a new and smart look and the new 46 cm cutting decks are all designed to ensure an even better collection of all grass types.
The ZT 5175TR/W is fitted with the new RV-series of engines from TEXAS and here with a 170 cc engine. The mower is a push model and has a cutting width of 51 cm.
The model has a large handle for height adjustment so that the cutting height can be quickly and easily adjusted in 6 different positions from 28-75 mm.
Video
Note: The video may cover multiple models.
Specifications
Starter
: Recoil
Airfilter
: Foam
Cylinder
: 1
Gasoline/diesel
: Gasoline
Cutting height
: 25-75 mm
Mulching
: Yes
Number of high adjustments
: 6 positions
Dispatch tupe
: Yes
Number of knives
: 1 pce.
Shield material
: Steel
Weight
: 29,8 kg
Box width
: 77 cm
Box length
: 56 cm
Box height
: 48 cm
Engine type
: 4 stroke
Engine model
: RV170
Pull
: Yes
Collecting box
: 75 litre
Height ajustment
: Central
Knife
: Metal
CC
: 170 cc
Power
: 2,8 kW v. 2900 rev./min.
Wheel size front
: 7''
Wheel size rear
: 11''
Engine oil
: 0,45 litre
Tank capacity
: 1 litre
Handle bar
: Adjustable
Rear discharge
: Yes
Noise level
: 98 dB
Oil
: SAE 30
Cutting width
: 51 cm
Engine
: Texas
Bioplug
: Ja
Speed forward max
: 3,6 km/hr
Rear wheel drive
: Yes
Manufacturer
: Texas A/S
Manual
Spare part drawing
The innovative ZT series from TEXAS is lawn mowers developed specifically for the demanding user's needs.
This model has only 3 wheels, which makes the mower ideal for maneuvering around trees, flower beds etc.
The front wheel can easily be locked for straight-ahead driving only, or it can be turned freely for optimum maneuverability.
The design gives a new and smart look and the new 46 cm cutting decks are all designed to ensure an even better collection of all grass types.
The ZT 5175TR/W is fitted with the new RV-series of engines from TEXAS and here with a 170 cc engine. The mower is a push model and has a cutting width of 51 cm.
The model has a large handle for height adjustment so that the cutting height can be quickly and easily adjusted in 6 different positions from 28-75 mm.
Note: The video may cover multiple models.
| Starter | : Recoil |
| Airfilter | : Foam |
| Cylinder | : 1 |
| Gasoline/diesel | : Gasoline |
| Cutting height | : 25-75 mm |
| Mulching | : Yes |
| Number of high adjustments | : 6 positions |
| Dispatch tupe | : Yes |
| Number of knives | : 1 pce. |
| Shield material | : Steel |
| Weight | : 29,8 kg |
| Box width | : 77 cm |
| Box length | : 56 cm |
| Box height | : 48 cm |
| Engine type | : 4 stroke |
| Engine model | : RV170 |
| Pull | : Yes |
| Collecting box | : 75 litre |
| Height ajustment | : Central |
| Knife | : Metal |
| CC | : 170 cc |
| Power | : 2,8 kW v. 2900 rev./min. |
| Wheel size front | : 7'' |
| Wheel size rear | : 11'' |
| Engine oil | : 0,45 litre |
| Tank capacity | : 1 litre |
| Handle bar | : Adjustable |
| Rear discharge | : Yes |
| Noise level | : 98 dB |
| Oil | : SAE 30 |
| Cutting width | : 51 cm |
| Engine | : Texas |
| Bioplug | : Ja |
| Speed forward max | : 3,6 km/hr |
| Rear wheel drive | : Yes |
| Manufacturer | : Texas A/S |
