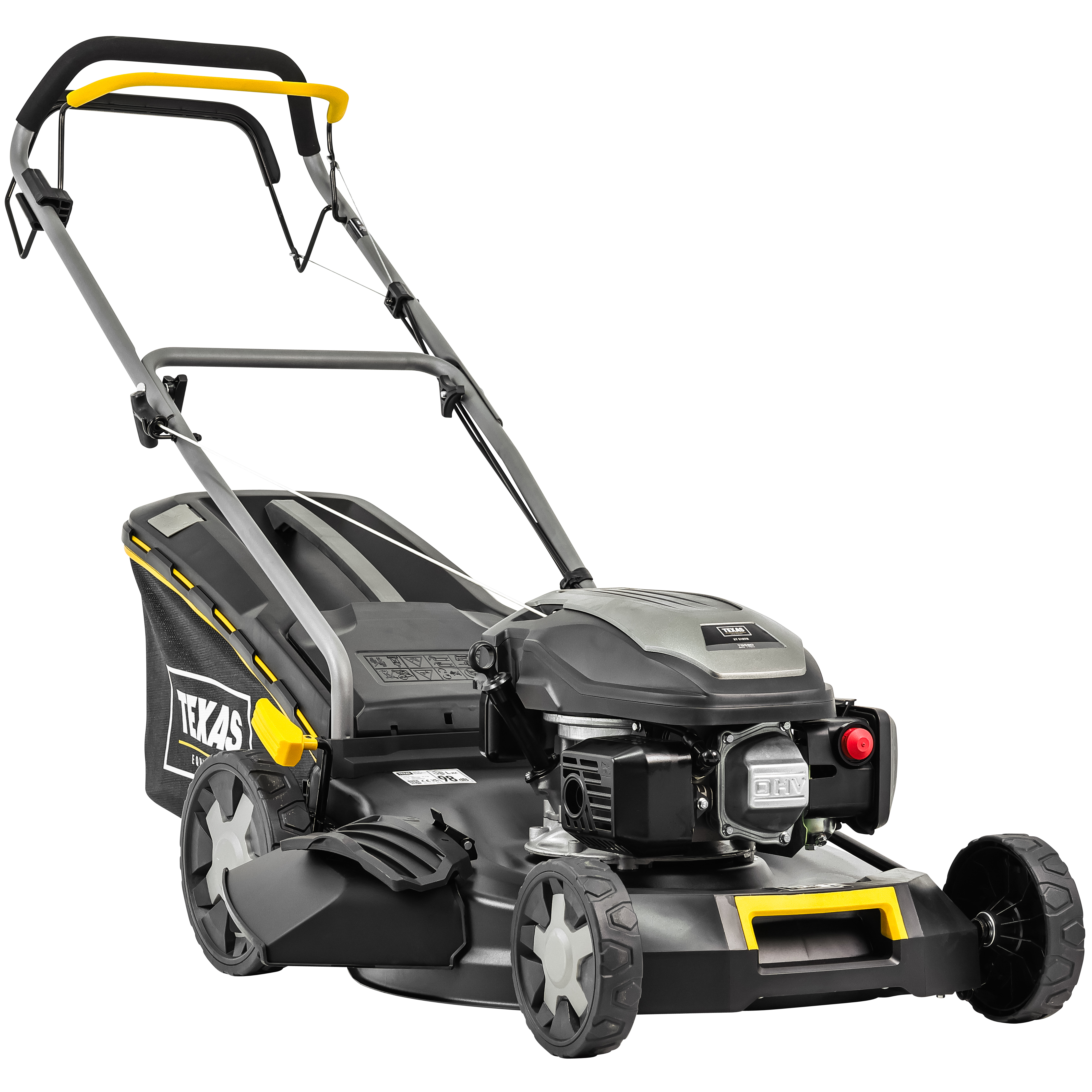

TEXAS' XT series is a new line of lawn mowers designed with focus on low weight, smart features, and modern design. That is why the XT 510TR and the other XT models come in a matte black finish, giving them a unique and exclusive appearance. But the XT 510TR offers more than just good looks. It is powered by a strong TEXAS TG580 engine with 170 cc, delivering plenty of cutting power.

The cutting deck is made of steel, ensuring durability and resistance against stone impacts, yet the XT 510TR still weighs only 27 kg. Large rear wheels provide great stability and maneuverability, and with rear-wheel drive, the mower is easy to handle across the lawn, even around corners and edges.

The XT 510TR comes with a 4-in-1 function, giving you every mowing option. With rear discharge or side discharge, the mower expels grass behind or to the right side. With mulching, the grass is finely chopped and spread back into the lawn as natural fertilizer. With the included collector box, you can achieve a clean lawn with no grass residue. (The mulching plug is integrated into the rear discharge cover.)

The included large 60 L collector box efficiently gathers clippings, allowing you to mow for a long time before emptying. It also features a smart indicator that shows when the box is full.

Central height adjustment makes it easy to set the cutting height using the large lever by the rear wheel. Choose between 7 positions from 25-75 mm, whether you want a very short cut or prefer a longer lawn.

With a cutting width of 51 cm, the XT 510TR covers a wide area with every pass, making it well-suited for mowing lawns up to 600 m².

The XT 510TR is started with a recoil starter while holding the safety handle. Activate the second lever and the self-propulsion engages, assisting you with forward drive. The soft grip handlebar ensures comfortable operation, so you are ready to start mowing right away.

The XT 510TR also comes with ball bearings in all four wheels and a practical front lifting handle, making it easier to move around.

Cleaning is simple with the built-in water nozzle: just connect the garden hose and start the engine, and the blade will clean the cutting deck of most grass residues.

With the XT 510TR you get a highly user-friendly petrol lawn mower with a wide cutting width. Its low weight and rear-wheel drive make it extra easy to maneuver in the garden. The multiple mowing functions give you flexibility when mowing, while the stylish design ensures it looks as good as it performs.

This engine requires only 0.5 L motor oil.

The machine is supplied without oil.

TEXAS recommends using unleaded 98/100 gasoline (also called E5) for all our gasoline engines, even if the manual specifies unleaded 95 gasoline (E10).

This recommendation is due to changes from January 1, 2020, when unleaded 95 gasoline (E10) began to contain 10% bioethanol instead of the previous 5%. The increased bioethanol content attracts condensation/water over time and shortens the fuel's shelf life, which can lead to poorer combustion and starting issues.

Remove moss from your lawn
Frequent mowing promotes healthy lawn growth, but if your lawn is filled with moss, you may need stronger solutions. Explore our wide selection of lawn aerators and dethatchers, giving your lawn mower a reliable companion to help you achieve a beautifully maintained lawn.

Grass trimmer for edges
Reaching every corner can be challenging, even with the best lawn mower. A simple grass trimmer is the perfect partner for quickly and easily trimming lawn edges.
