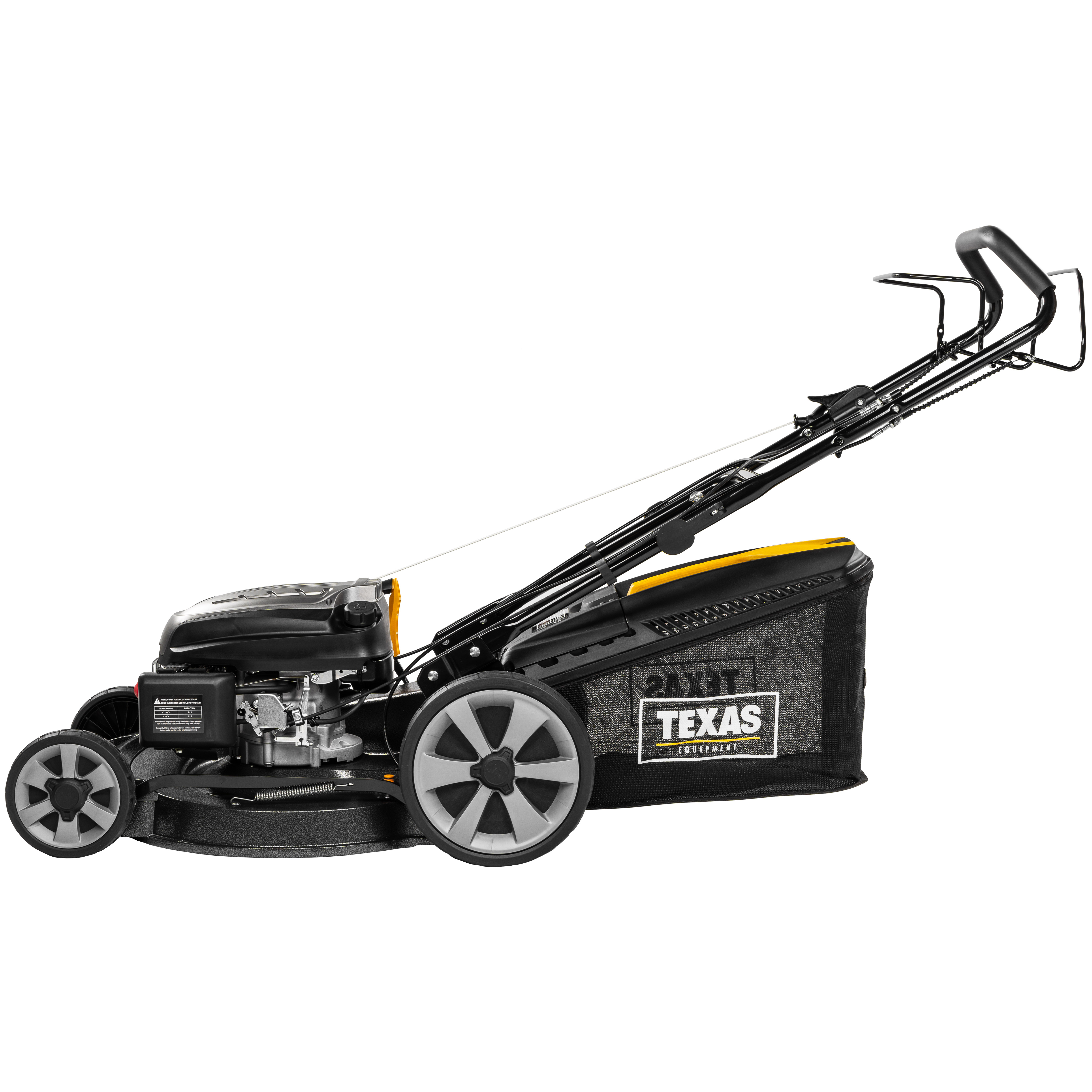

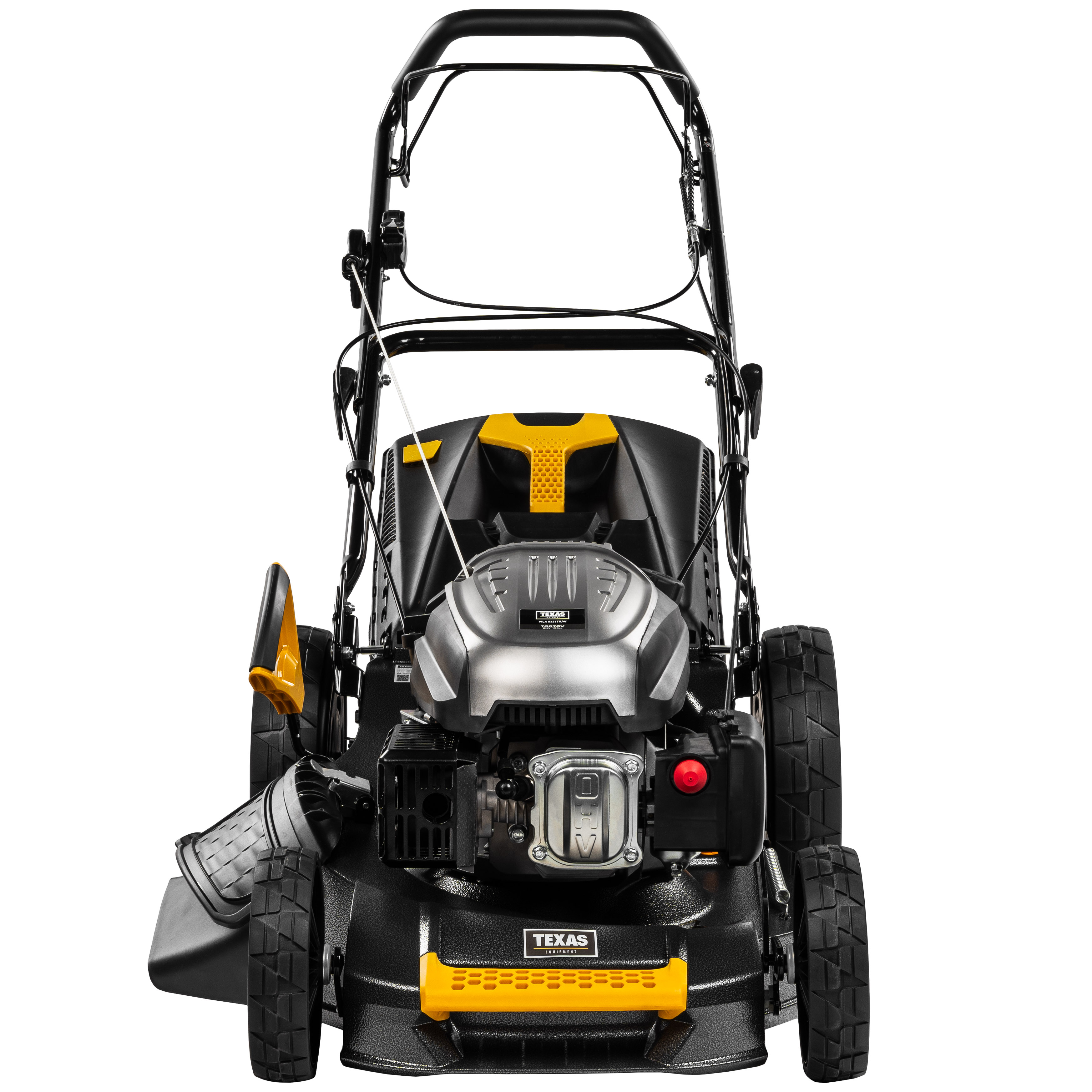

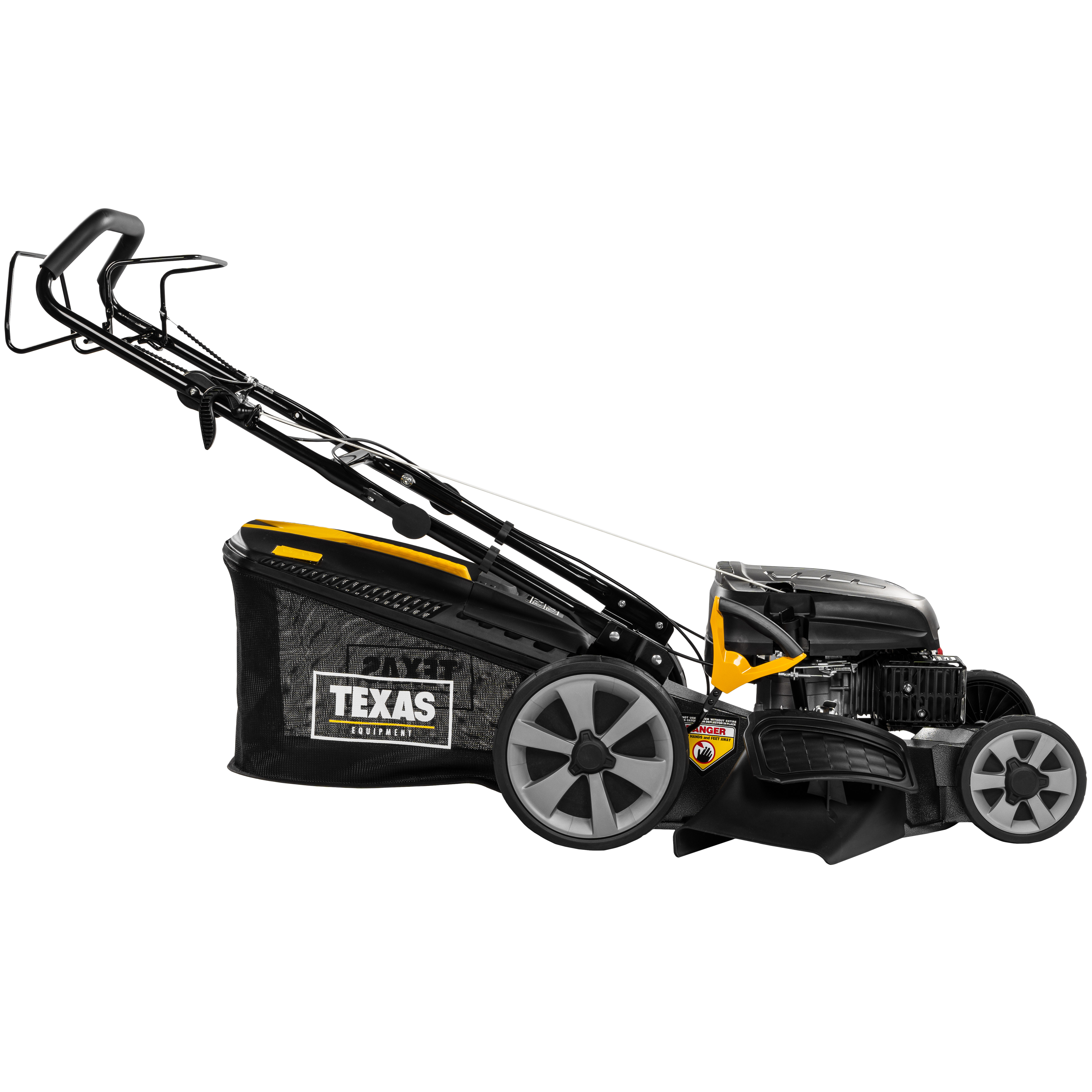

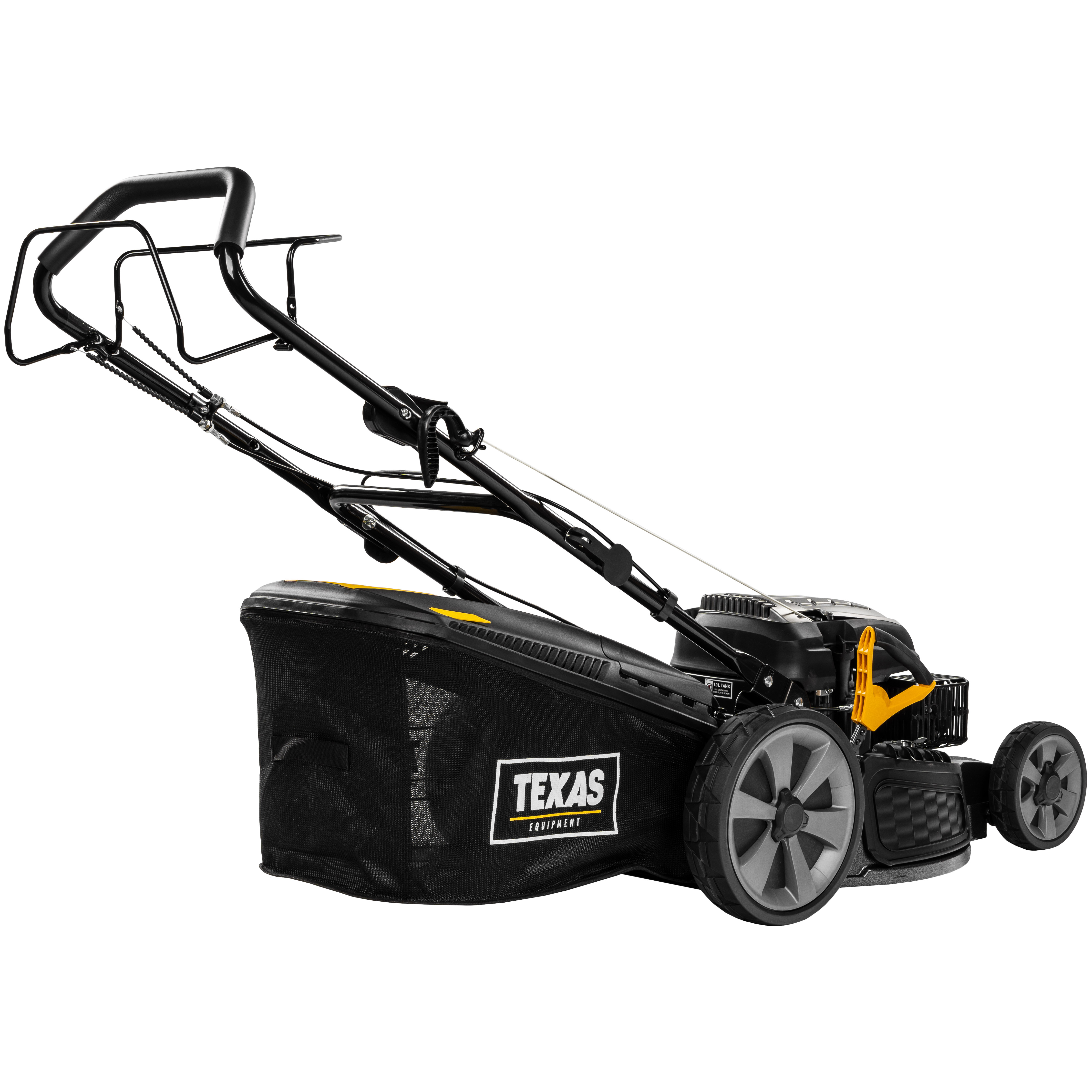

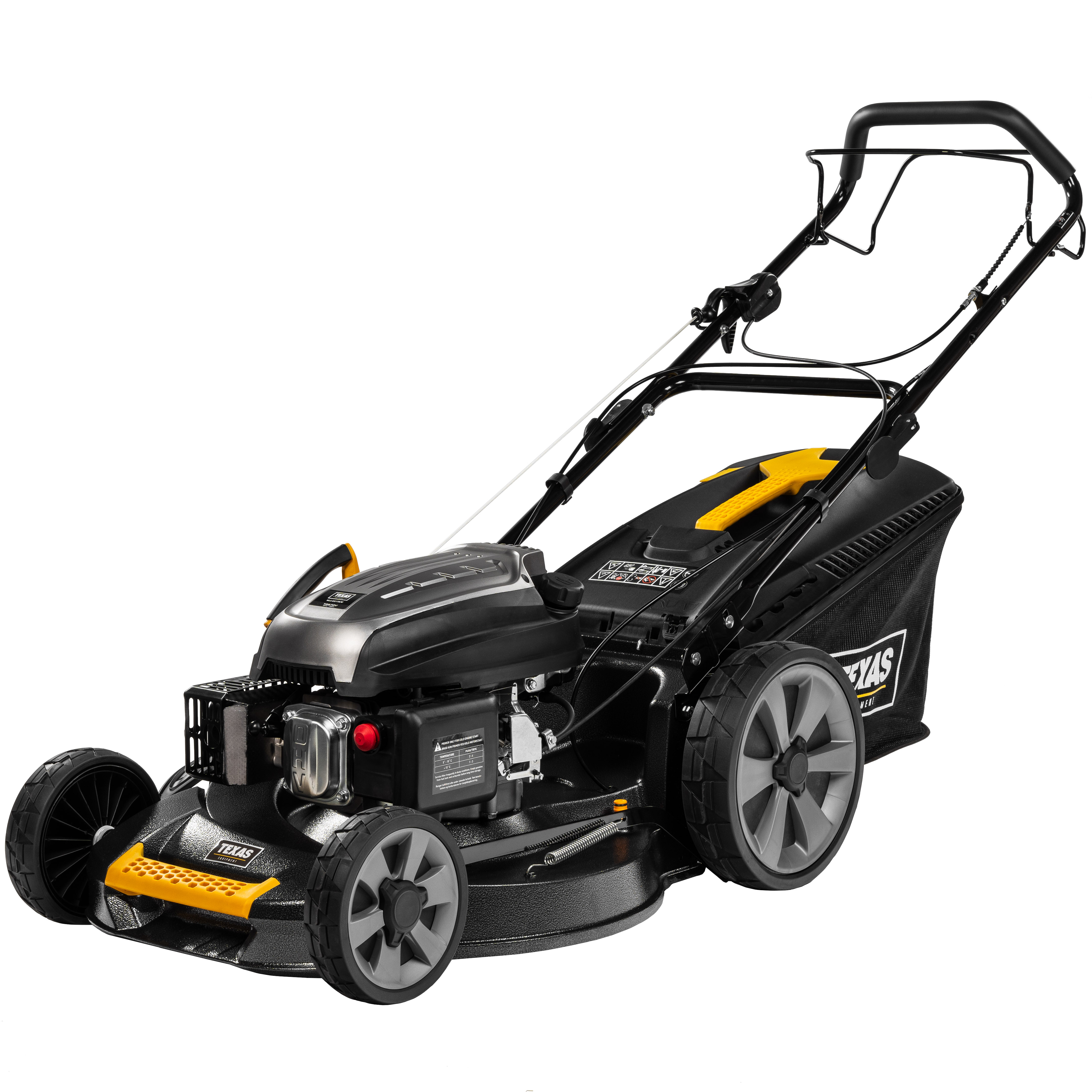

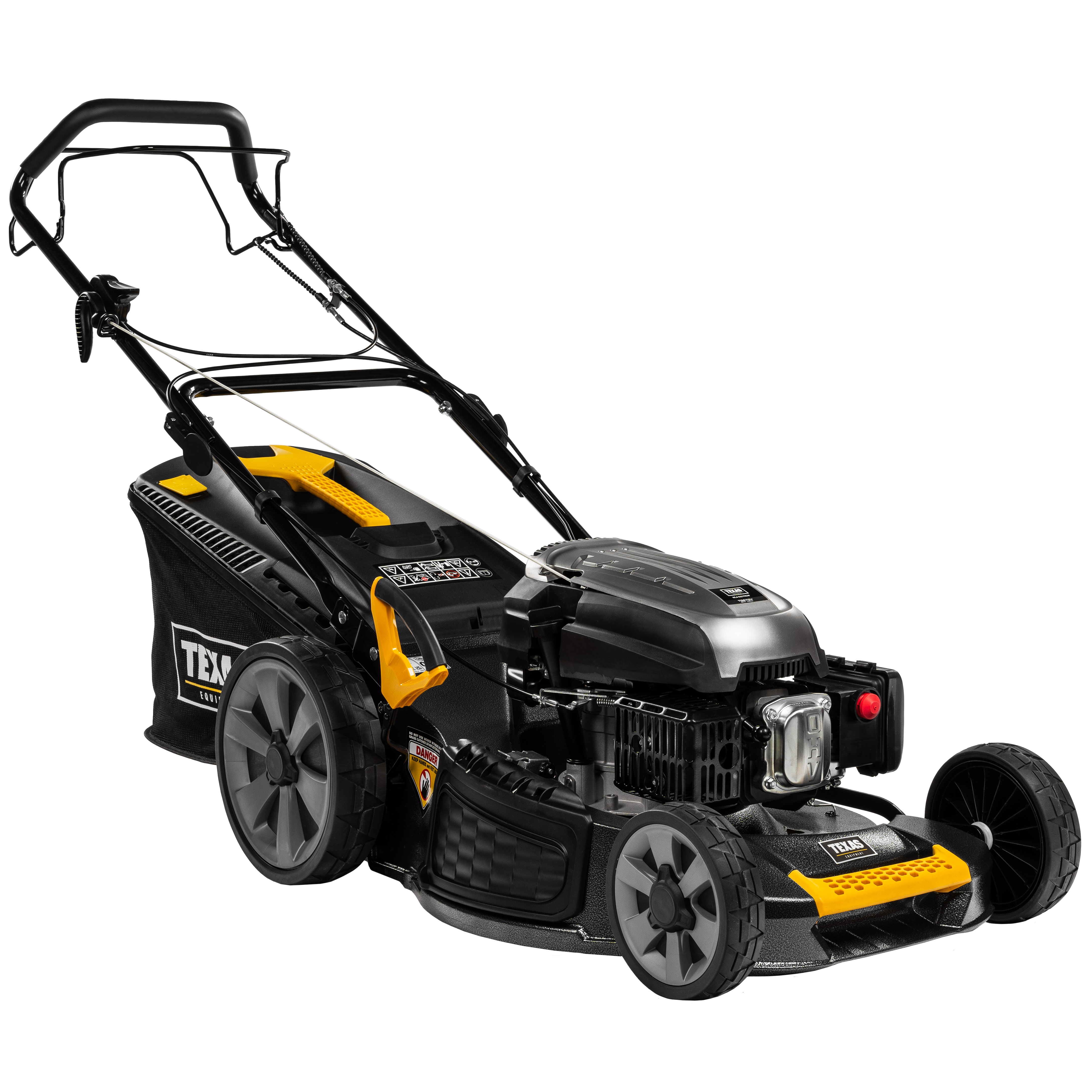

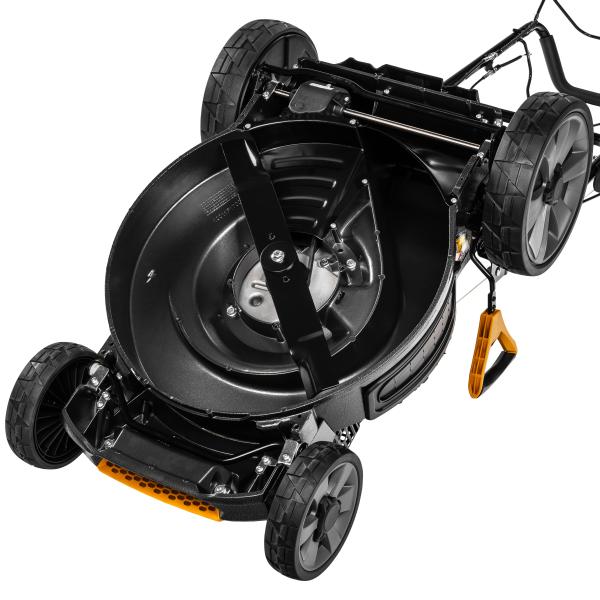

WLA 5321TR/W (alu skjold)
Specifications
Starter | : Recoil |
Airfilter | : Paper with foam filter |
Cylinder | : 1 |
Gasoline/diesel | : Gasoline |
Cutting height | : 15-80 mm |

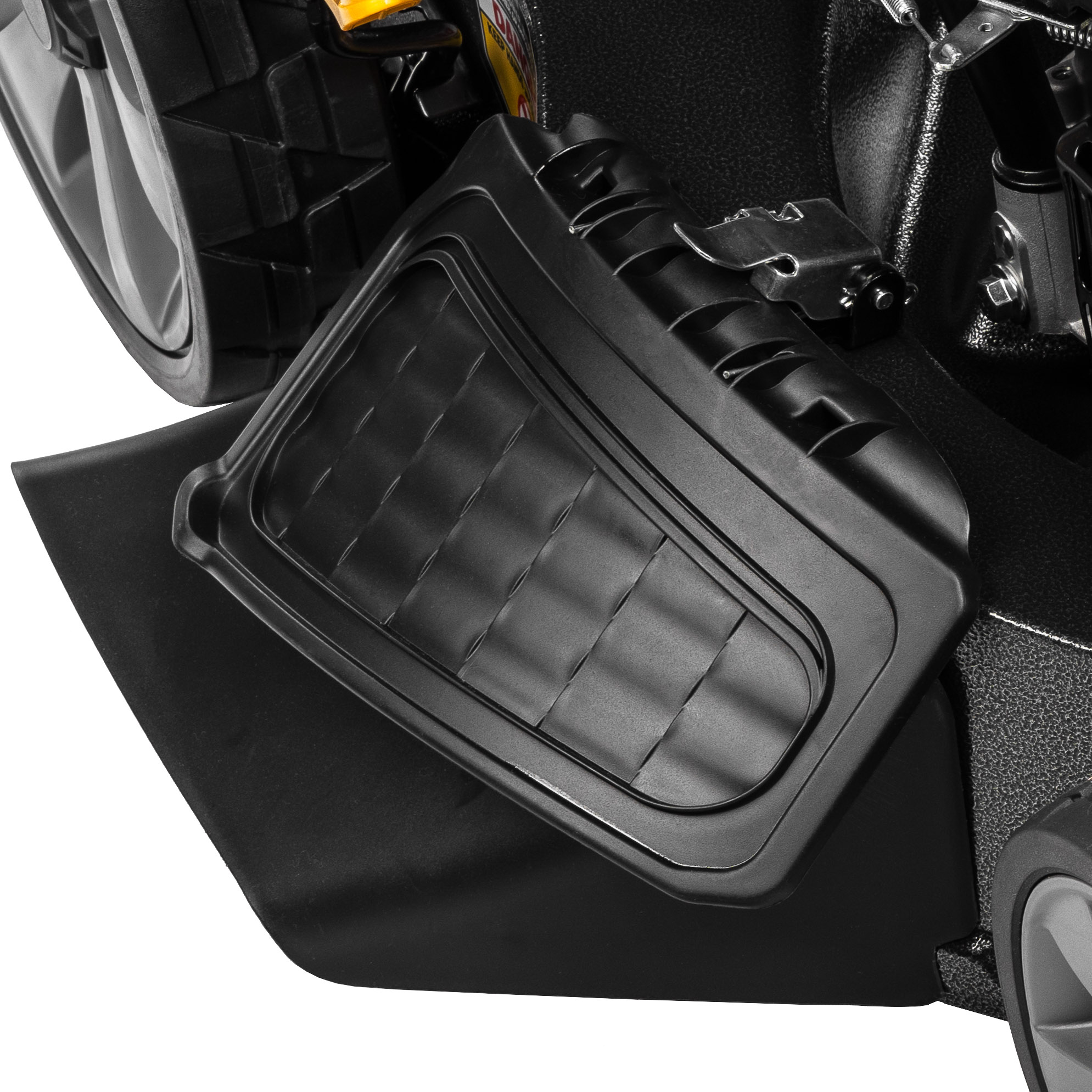

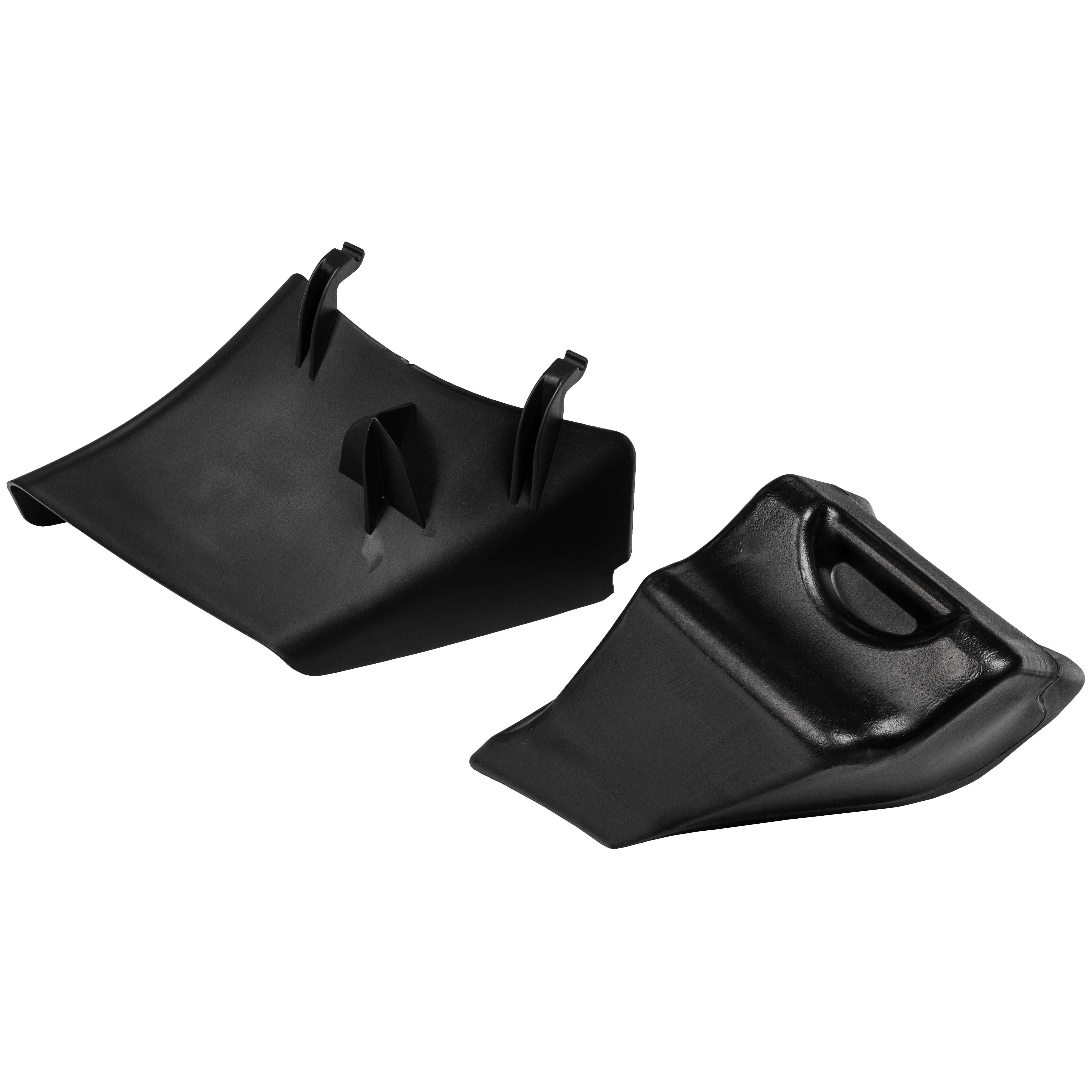

Mulching | : Yes |
Number of high adjustments | : 8 positions |
Dispatch tupe | : Yes |
Bearings | : Ball bearing |

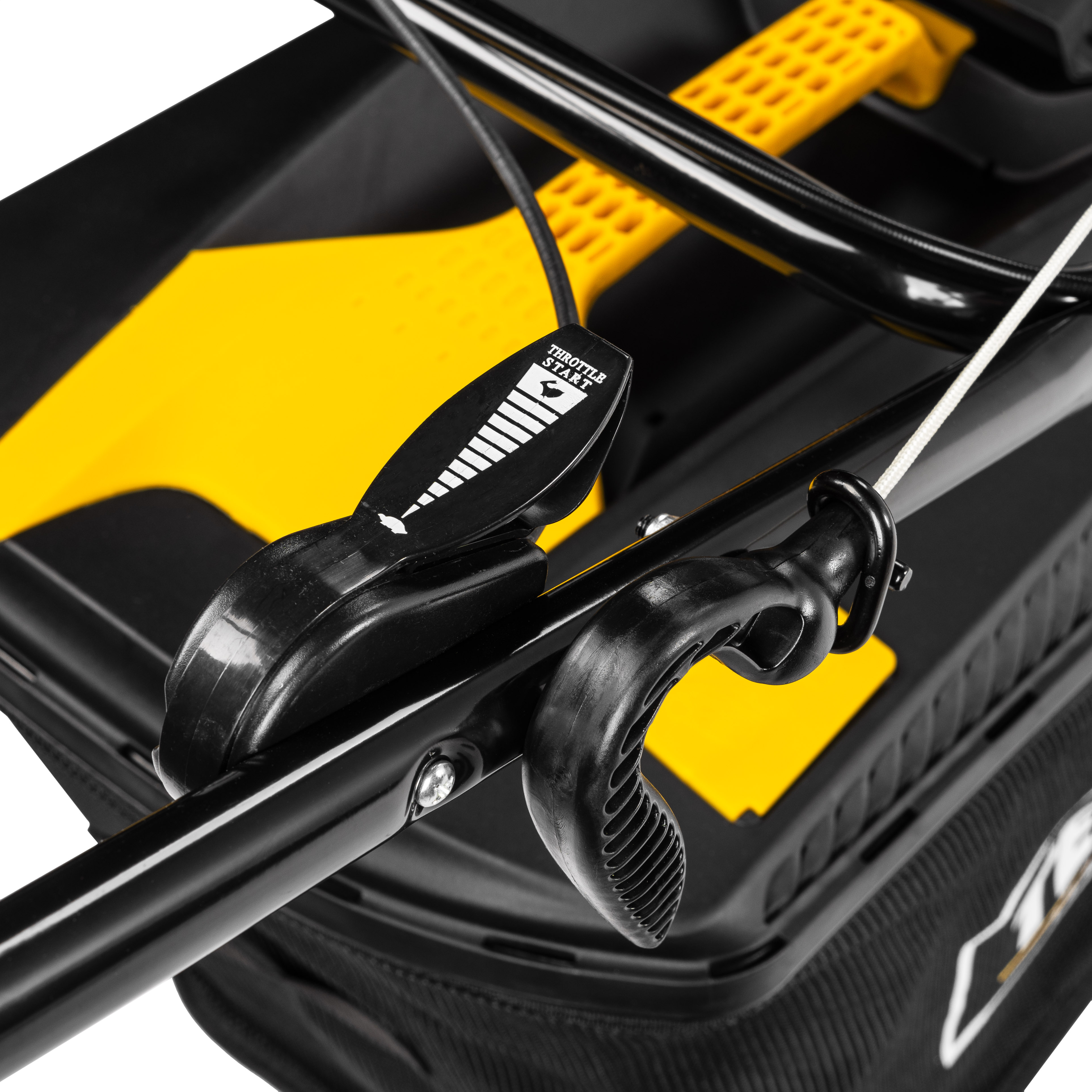

Gas adjustment | : Yes |
Shield material | : Aluminium |
Weight | : 45 kg |
Box width | : 61 cm |
Box length | : 47 cm |
Box height | : 92 cm |
Engine type | : 4 stroke |

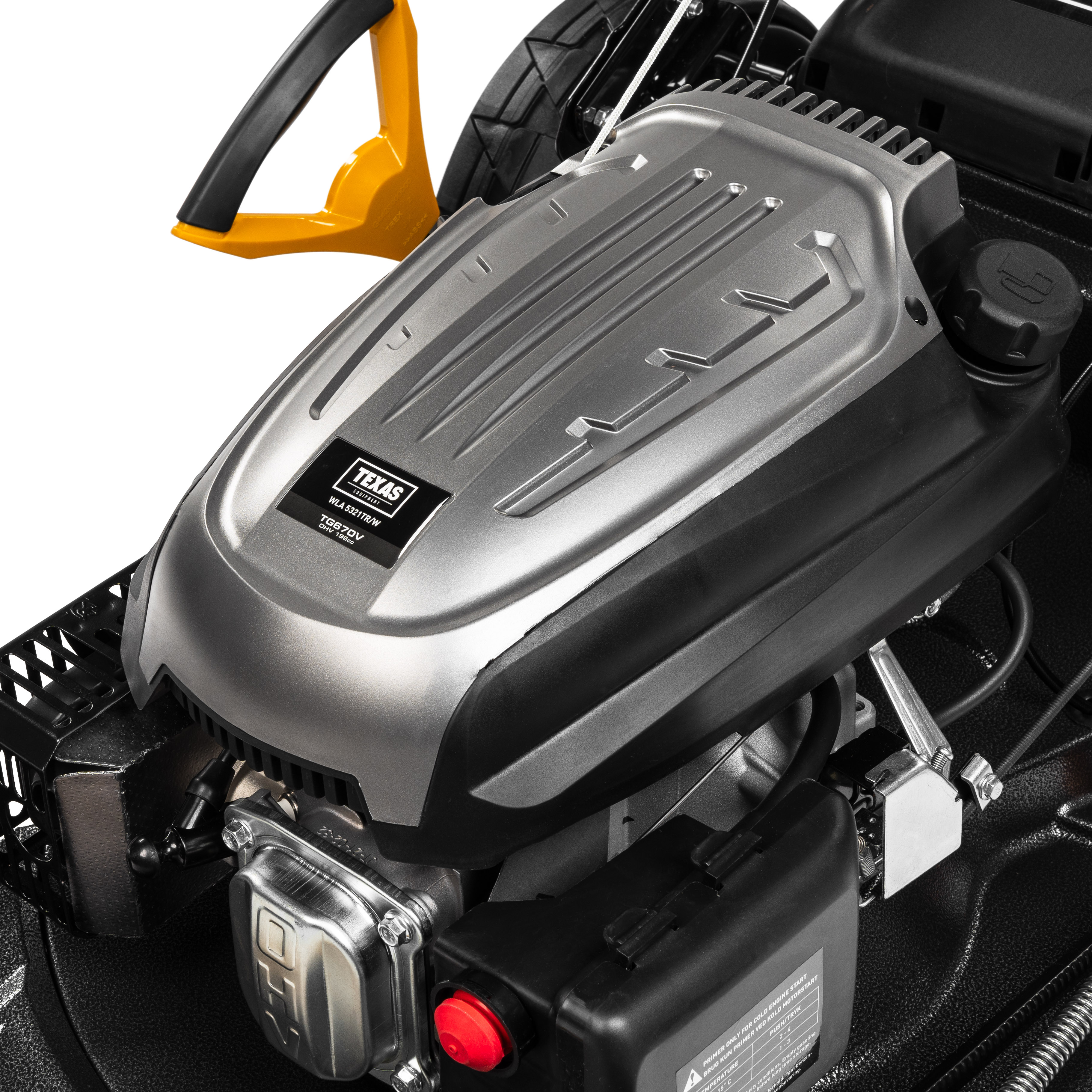

Engine model | : TG670V |
Pull | : Yes |
Collecting box | : 65 litre |

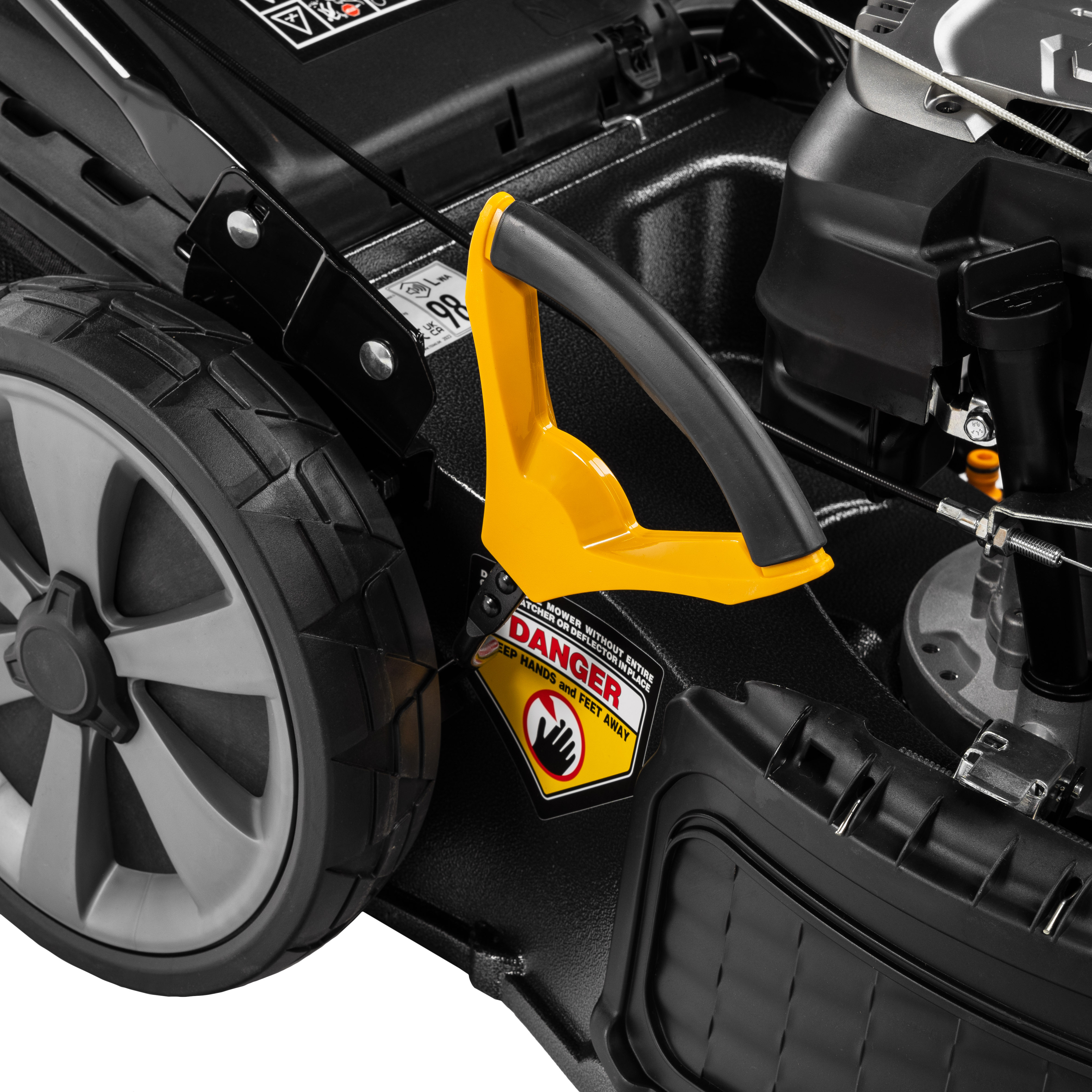

Height ajustment | : Central |
Knife | : Metal |
CC | : 196 cc |
Power | : 3,6 kW v. 2800 rev./min. |
Wheel size front | : 8'' |
Wheel size rear | : 12'' |
Engine oil | : 0,6 litre |
Tank capacity | : 1 litre |

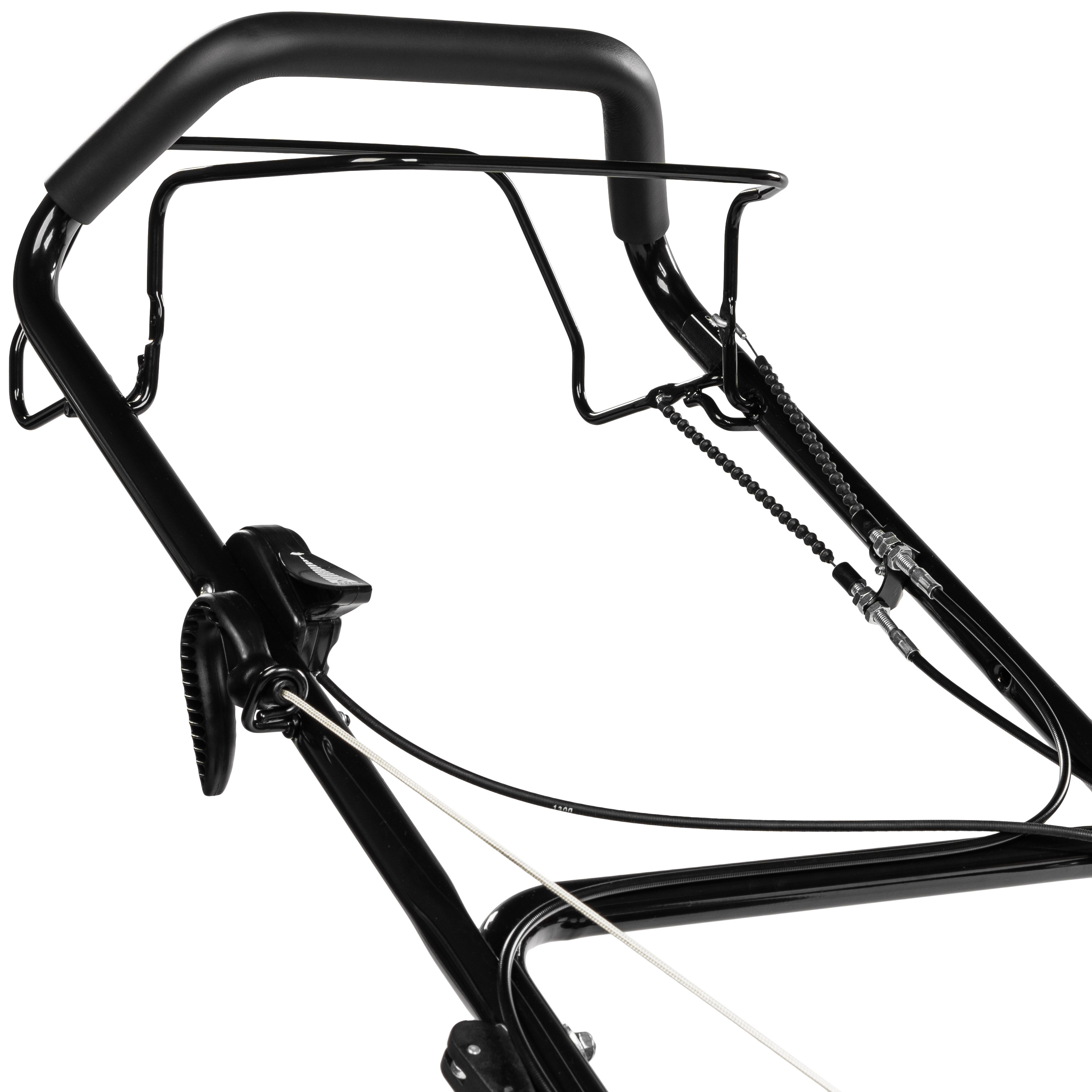

Handle bar | : Adjustable |

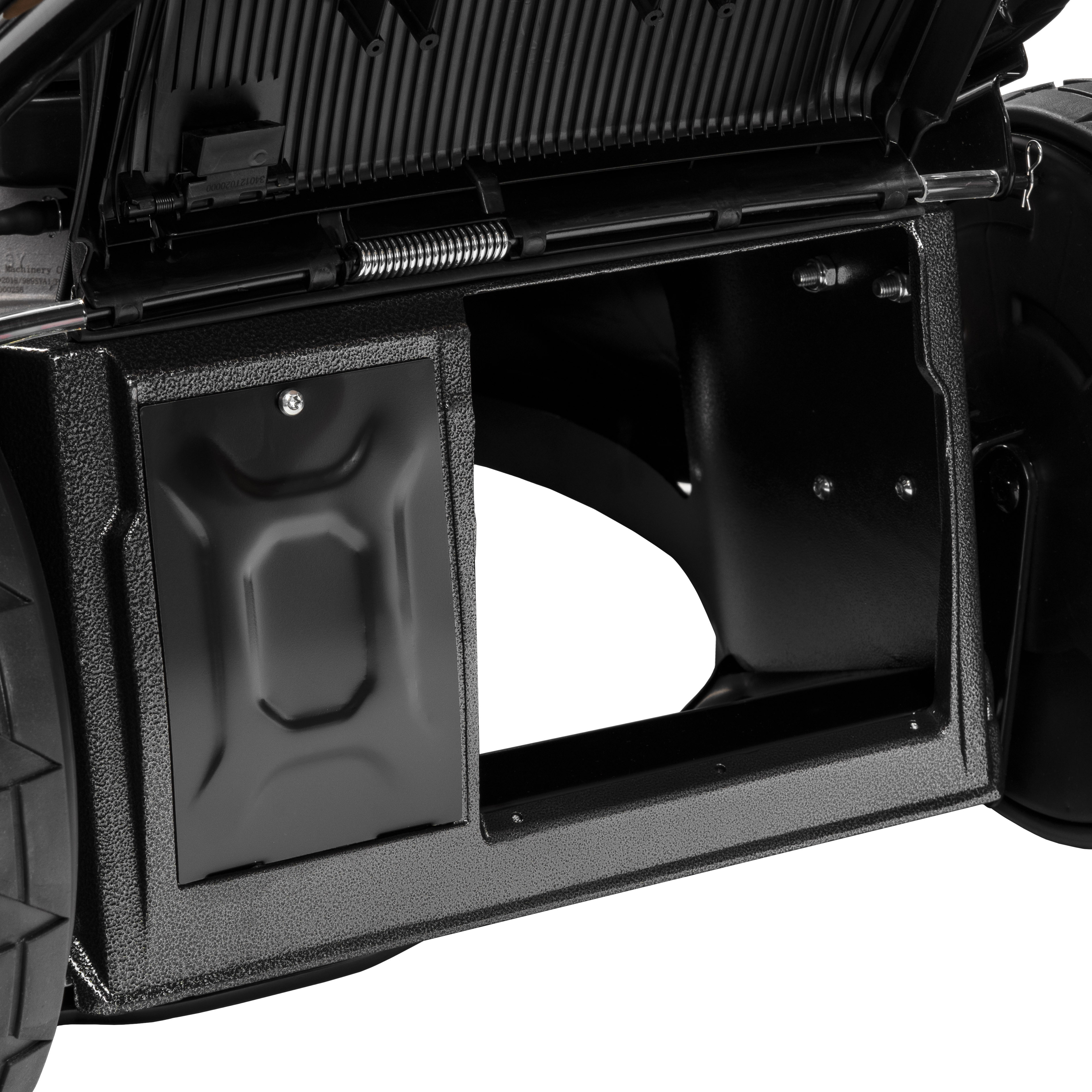

Rear discharge | : Yes |
Noise level | : 98 dB |
Oil | : SAE 30 |
Cutting width | : 53 cm |
Engine | : Texas |
Speed forward max | : 3,6 km/hr |
Rear wheel drive | : Yes |
Manual
Spare part drawing
WLA 5321TR/W (alu skjold)
Dimensioner
53cm
Art. number: 90066241
EAN: 5714829067186
