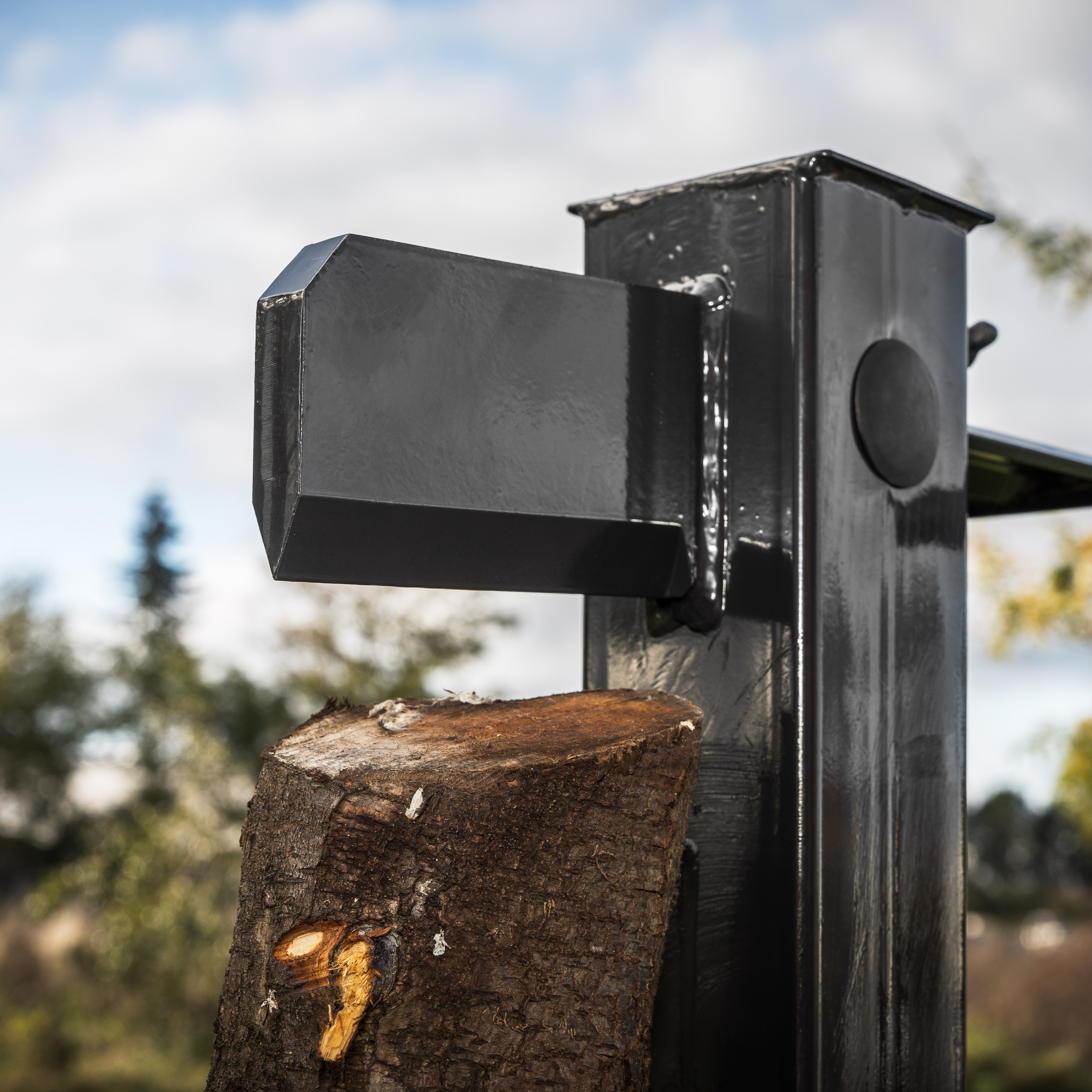

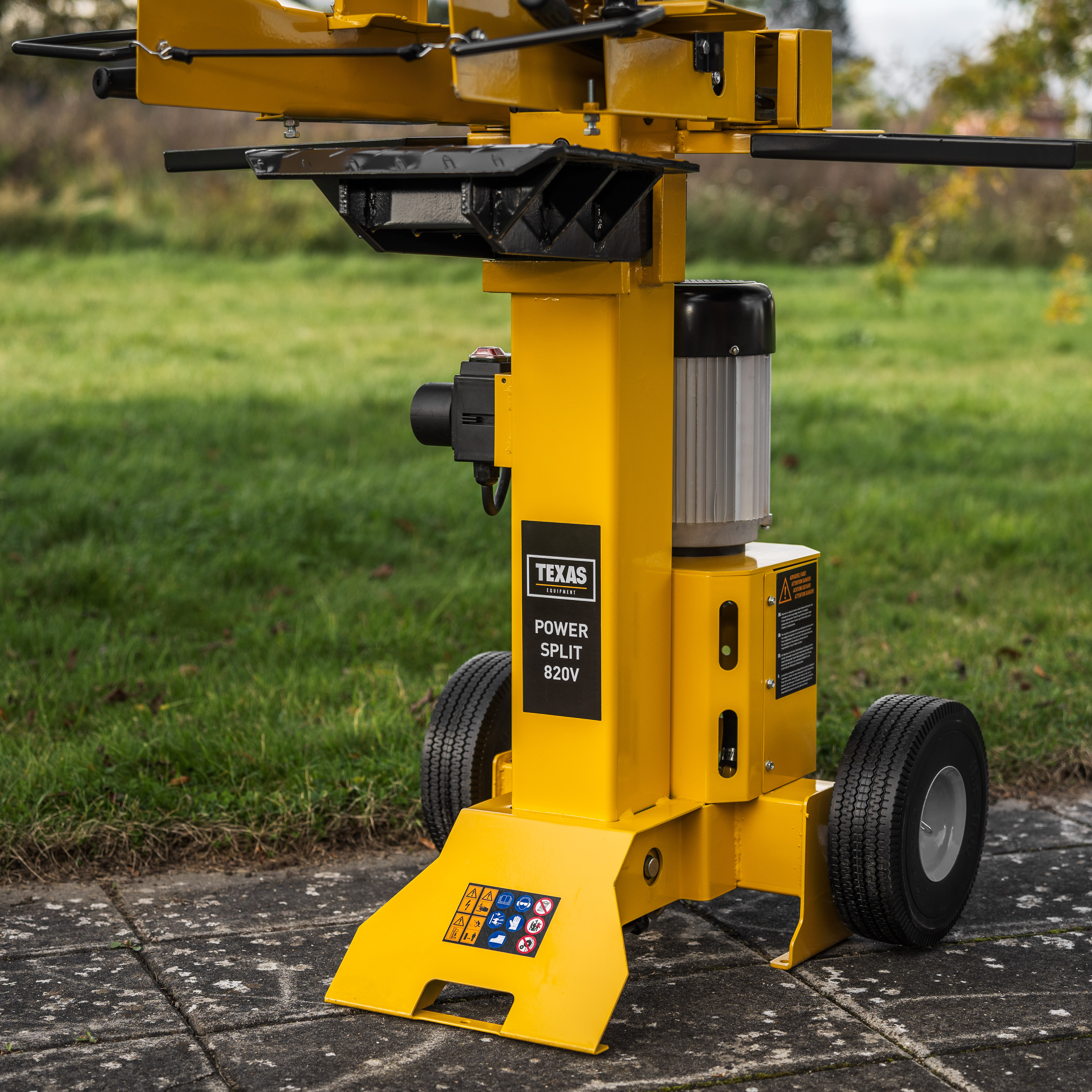

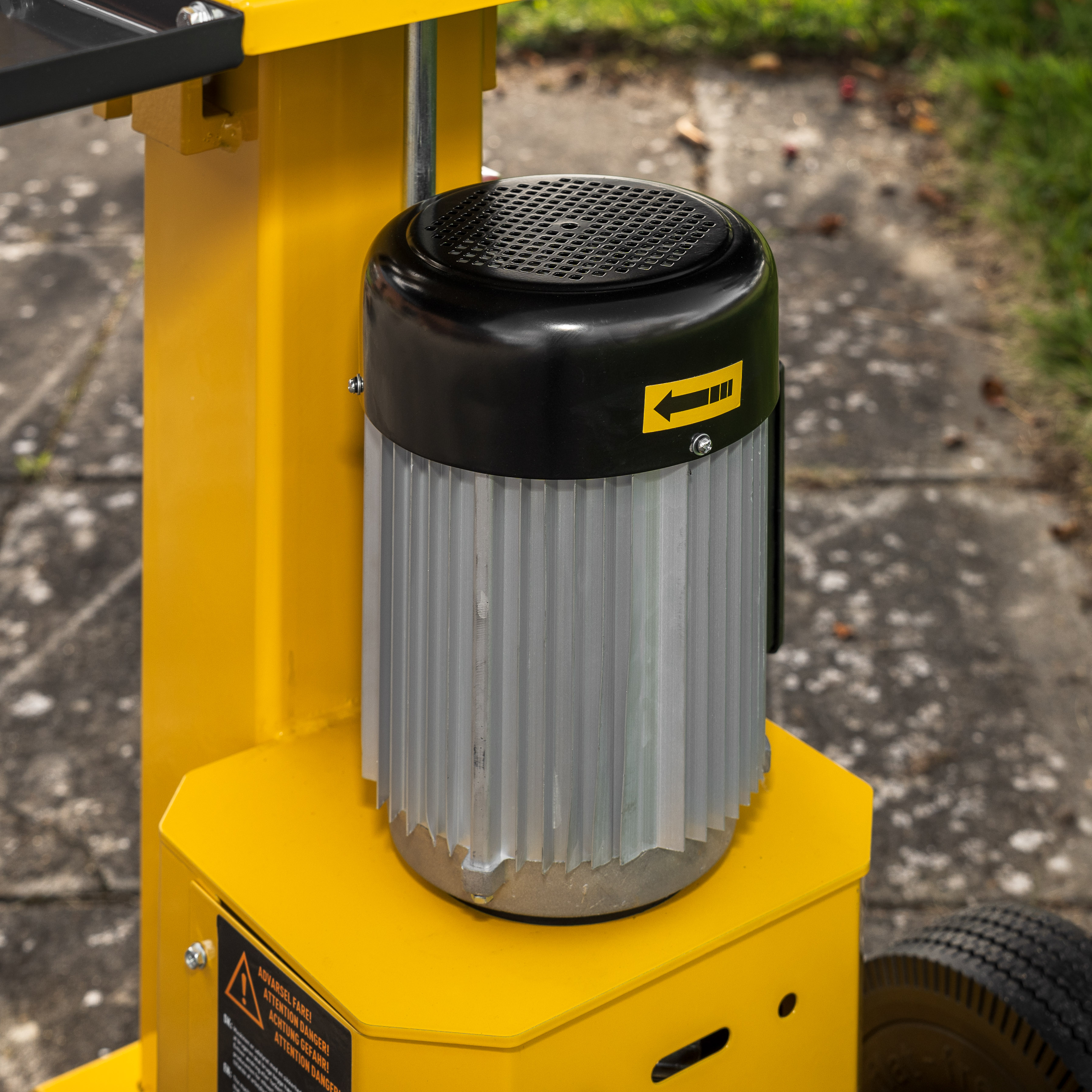

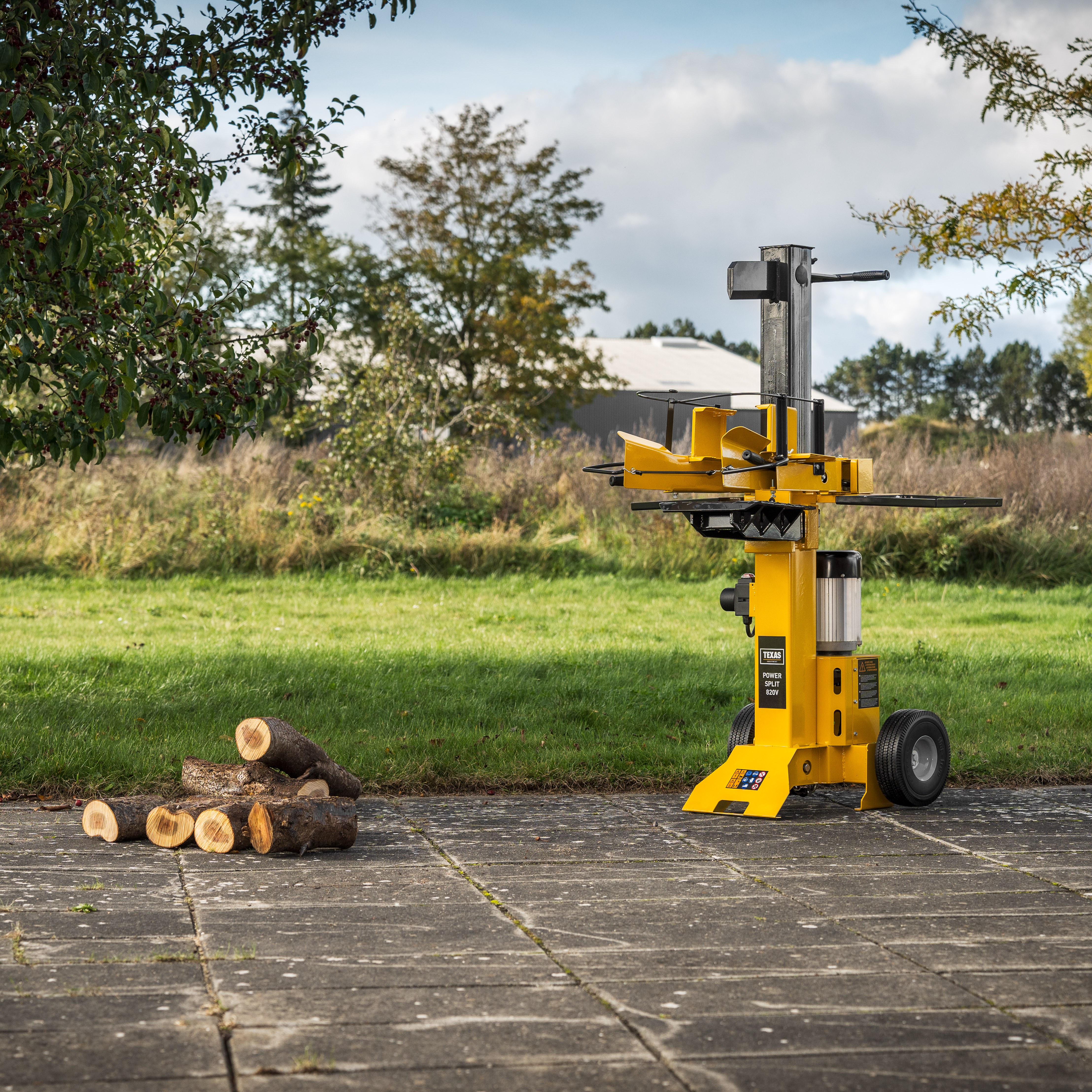

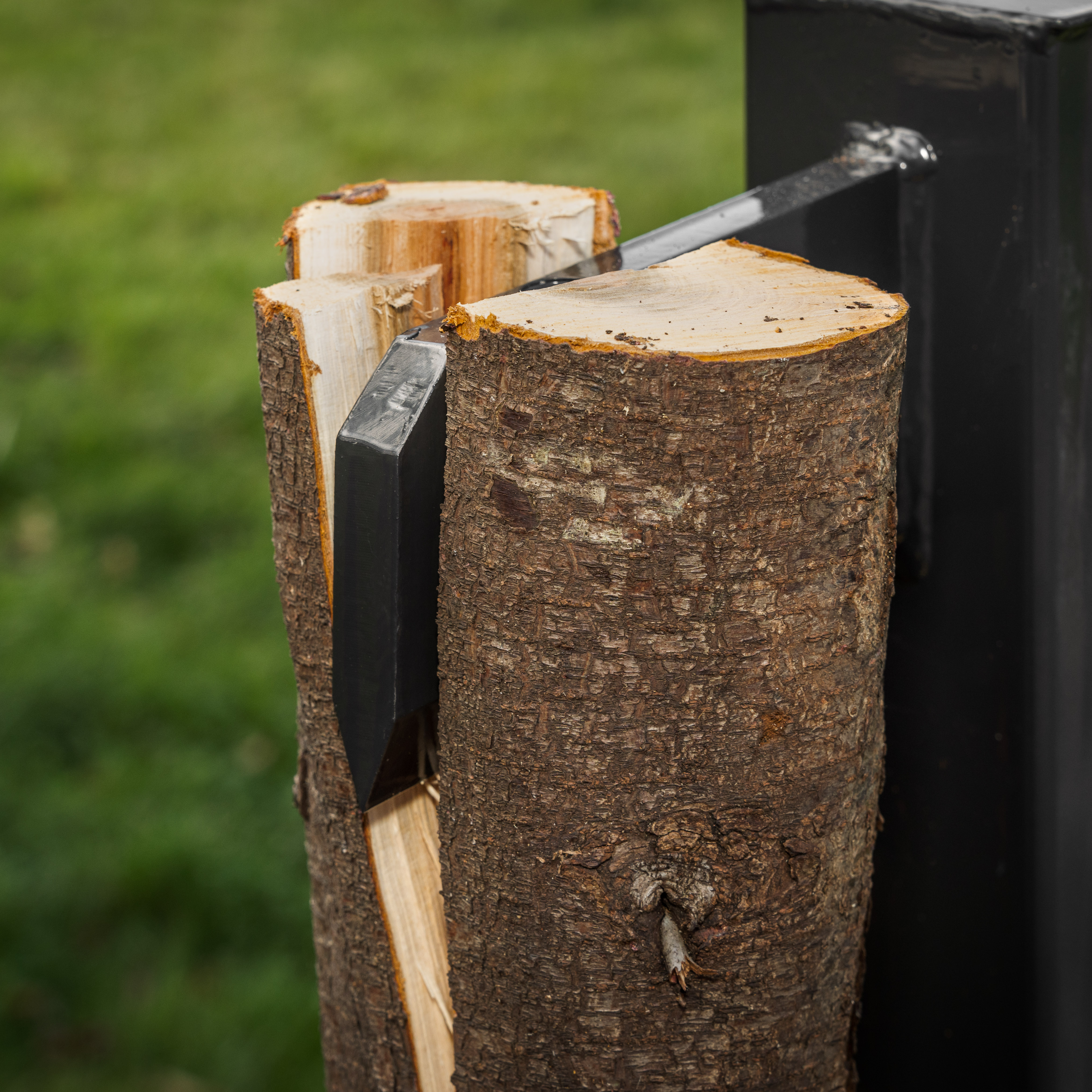

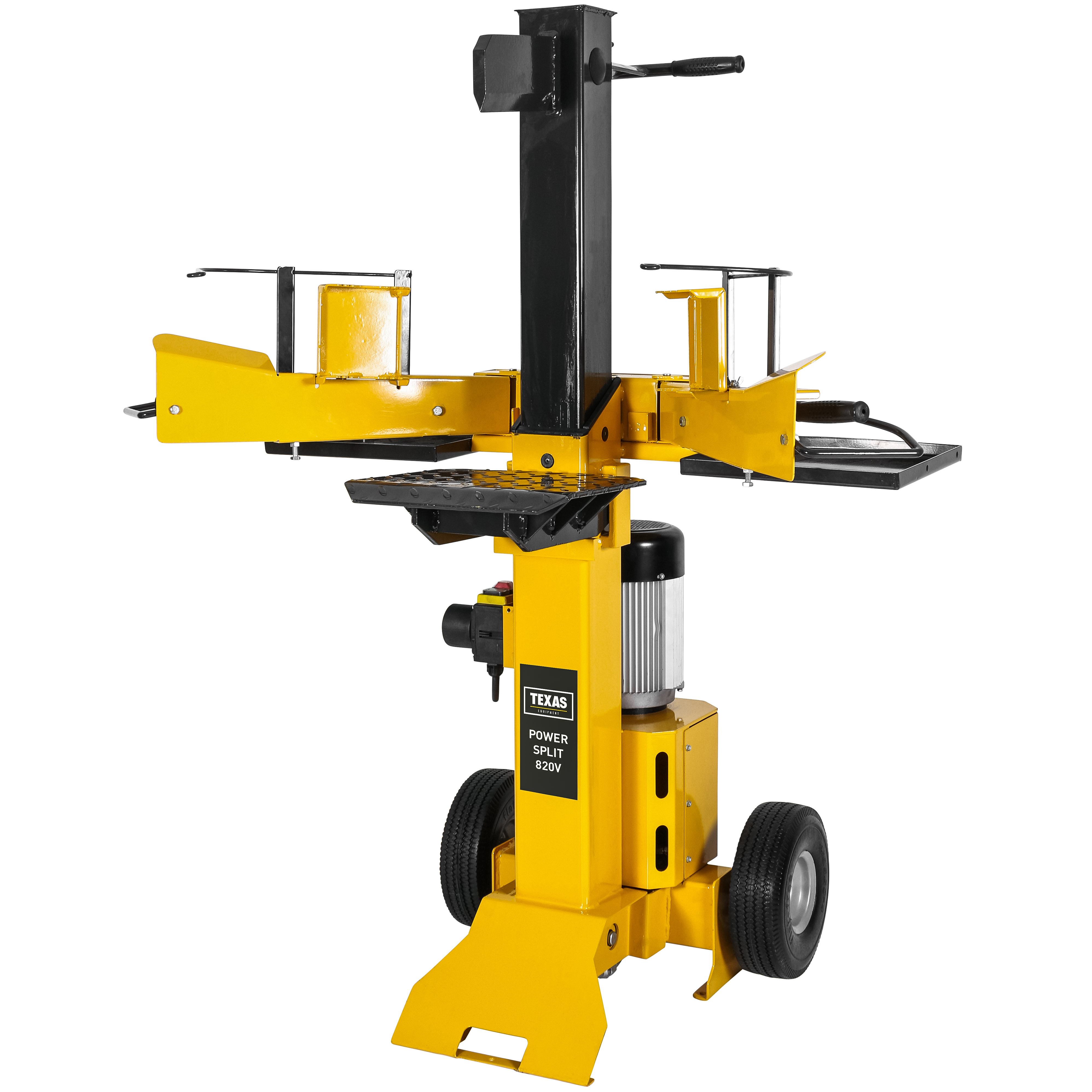

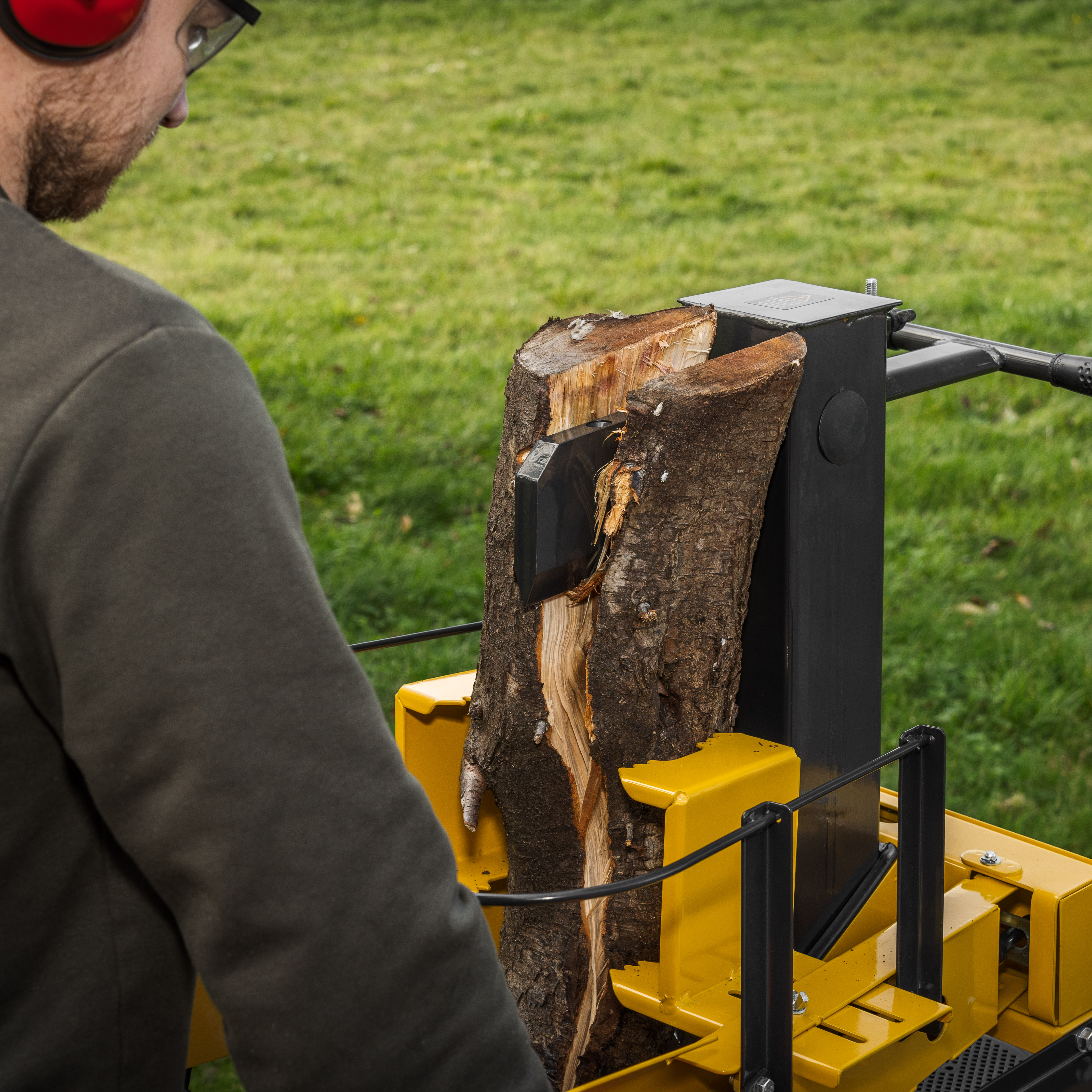

The TEXAS Power Split 820V is a 3500 W electric log splitter with a 230V plug, enabling you to quickly and easily start splitting your firewood. This log splitter handles logs with a diameter between 8 cm and 35 cm, applying 8 tons of pressure to efficiently split wood into two pieces.

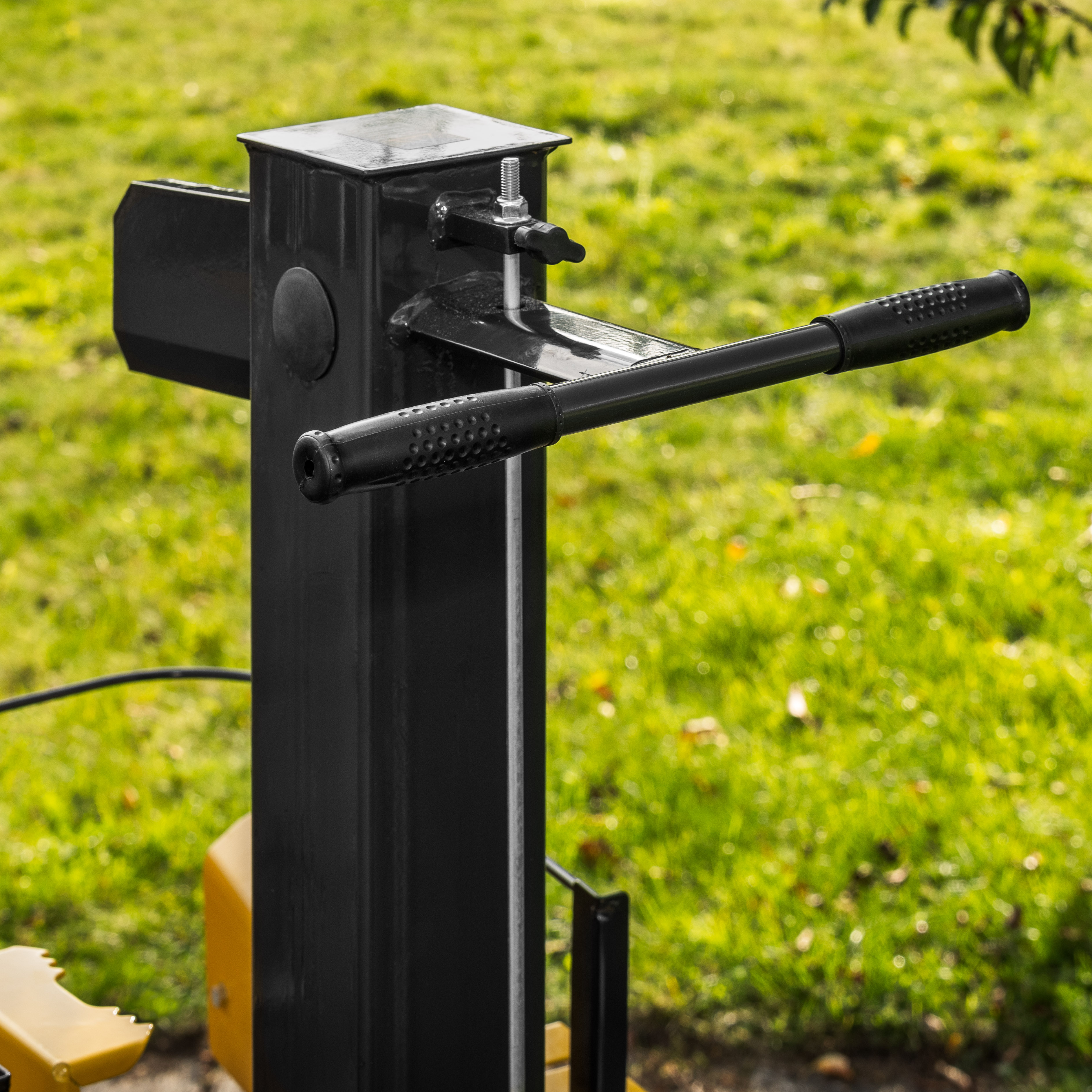

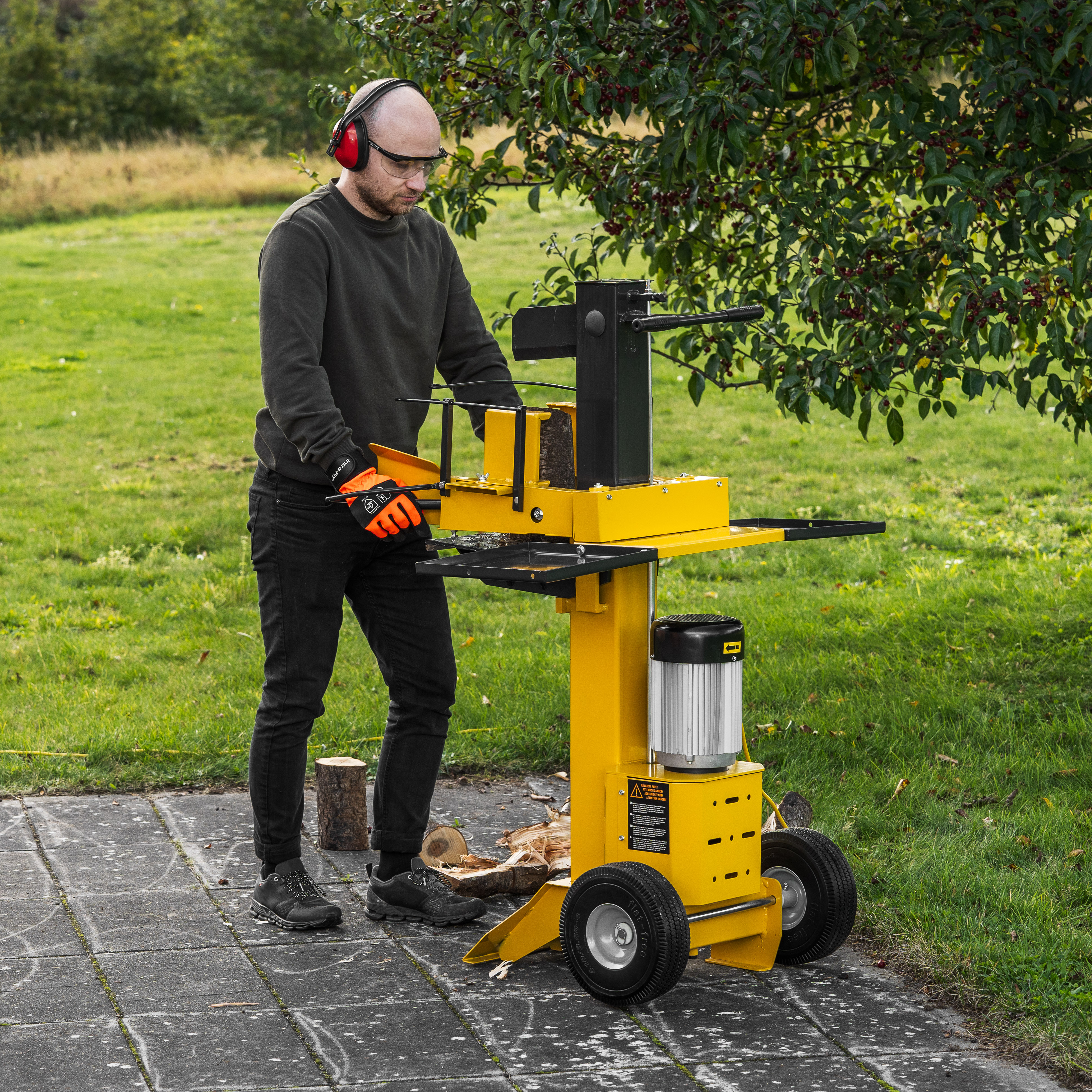

At maximum height, the splitter offers a full splitting cycle of 15 seconds and a return cycle of 4 seconds without load. With its adjustable splitting length, you can seamlessly set the piston height between 25 and 50 cm, allowing for faster splitting of shorter logs. The splitter is designed for user comfort, with both the control handles and the splitting plate positioned at a natural working height.

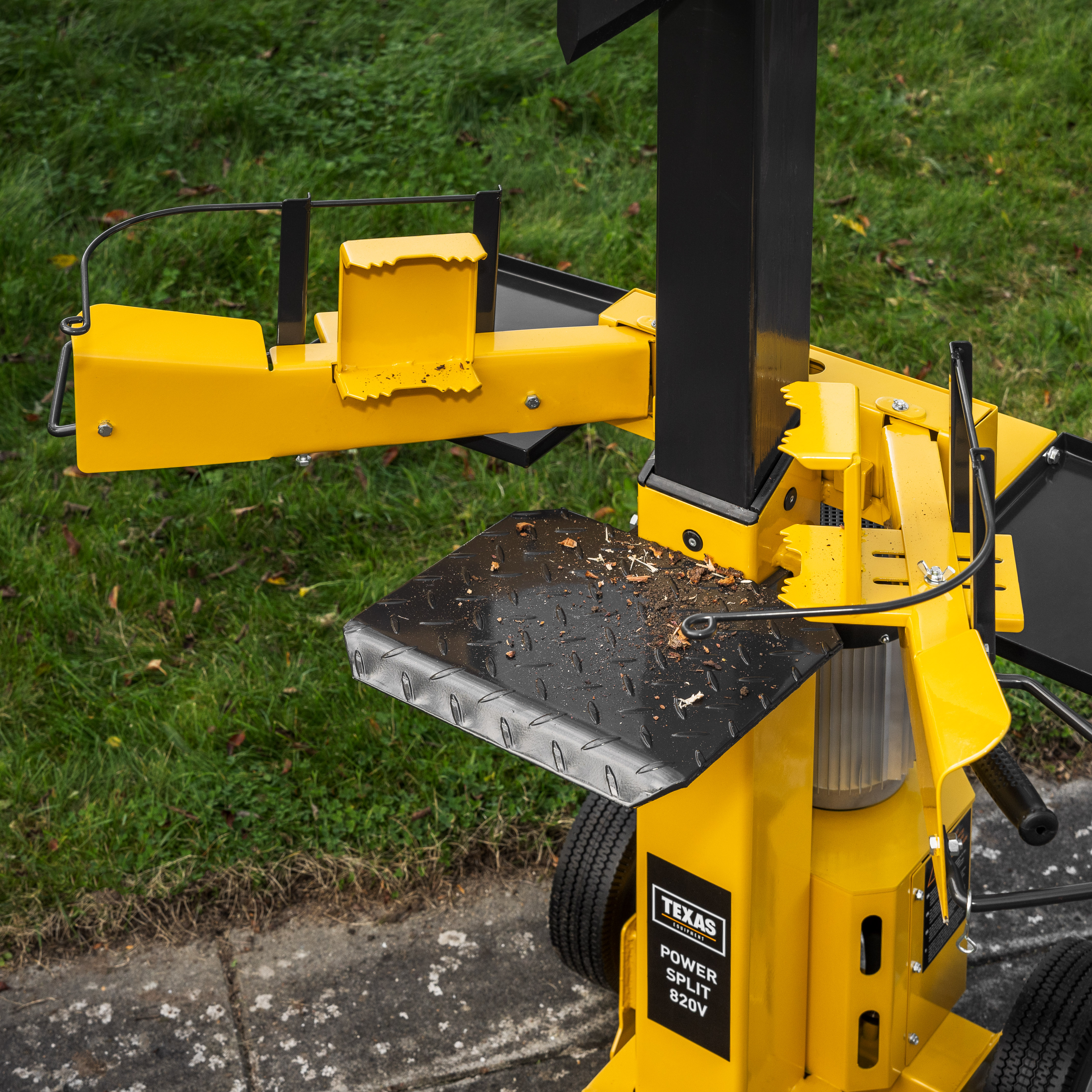

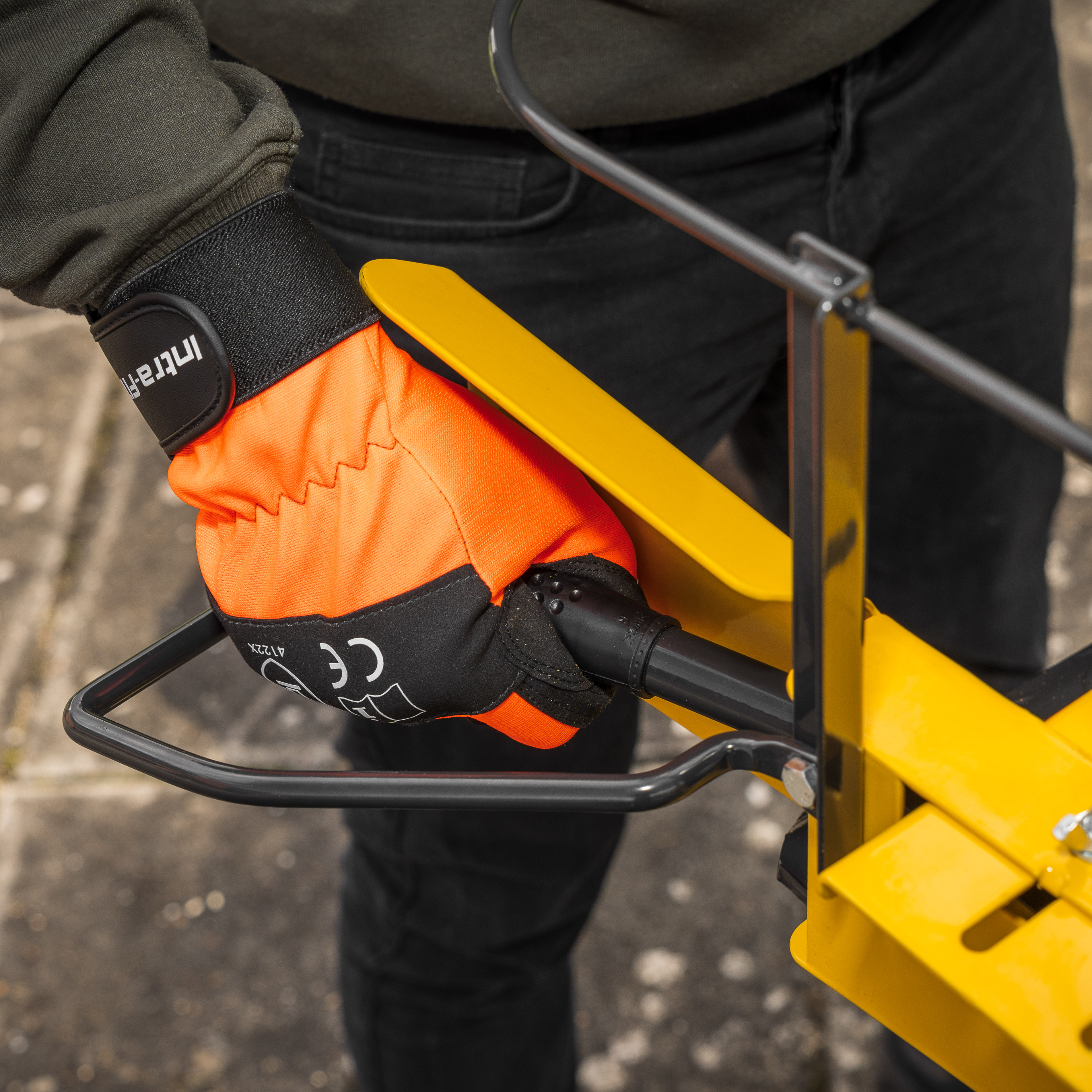

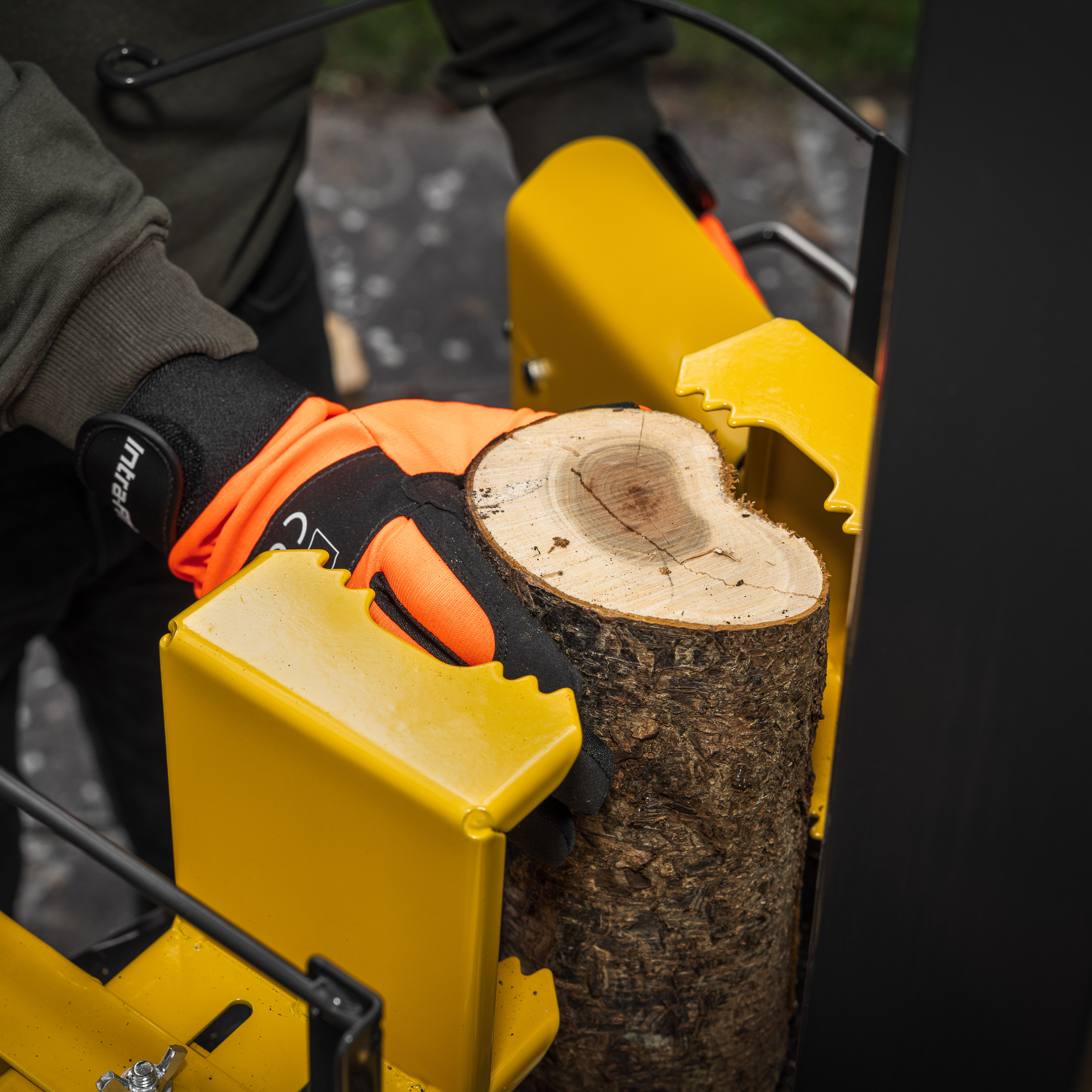

The Power Split 820V requires two-handed operation, with both control handles needing to be engaged simultaneously, ensuring enhanced safety during use. The handles are mounted on two sturdy arms, each featuring adjustable log fixtures to securely hold logs in place during splitting.

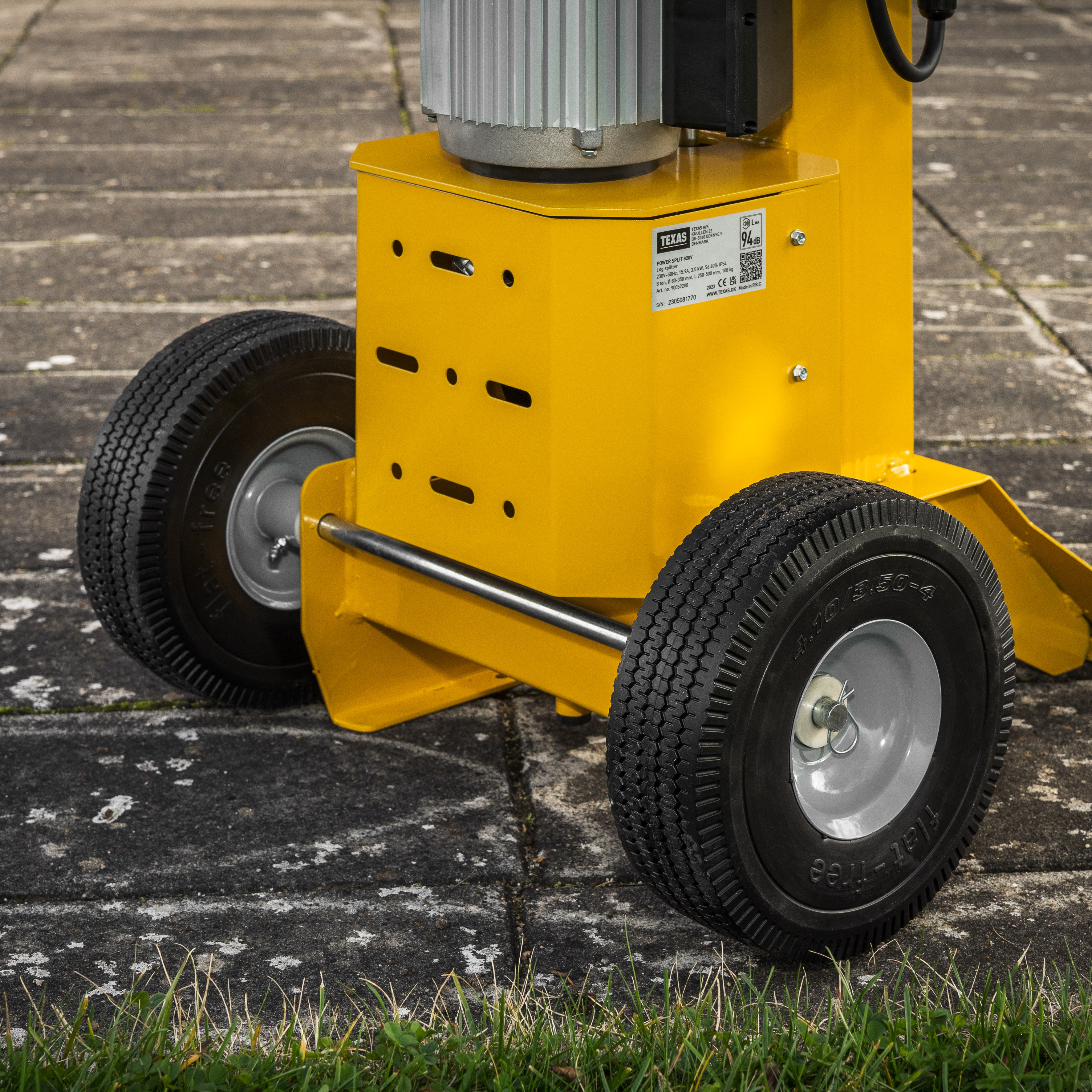

Weighing 111 kg, this log splitter is solid and robust for heavy-duty tasks. It also features large puncture-proof wheels, making transport easier. Additionally, it includes small side-trays for holding split logs.

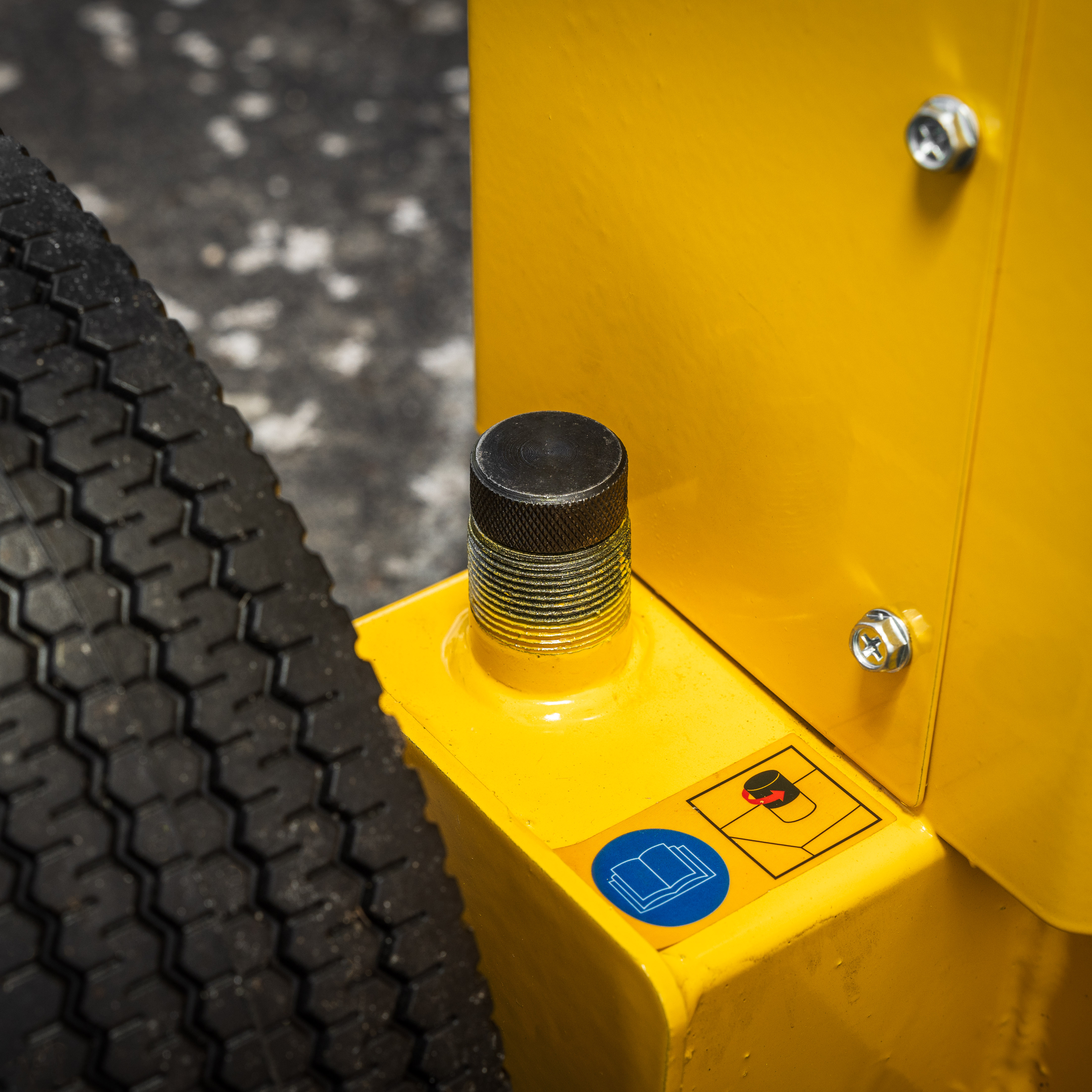

Hydraulic oil is pre-filled from the factory.

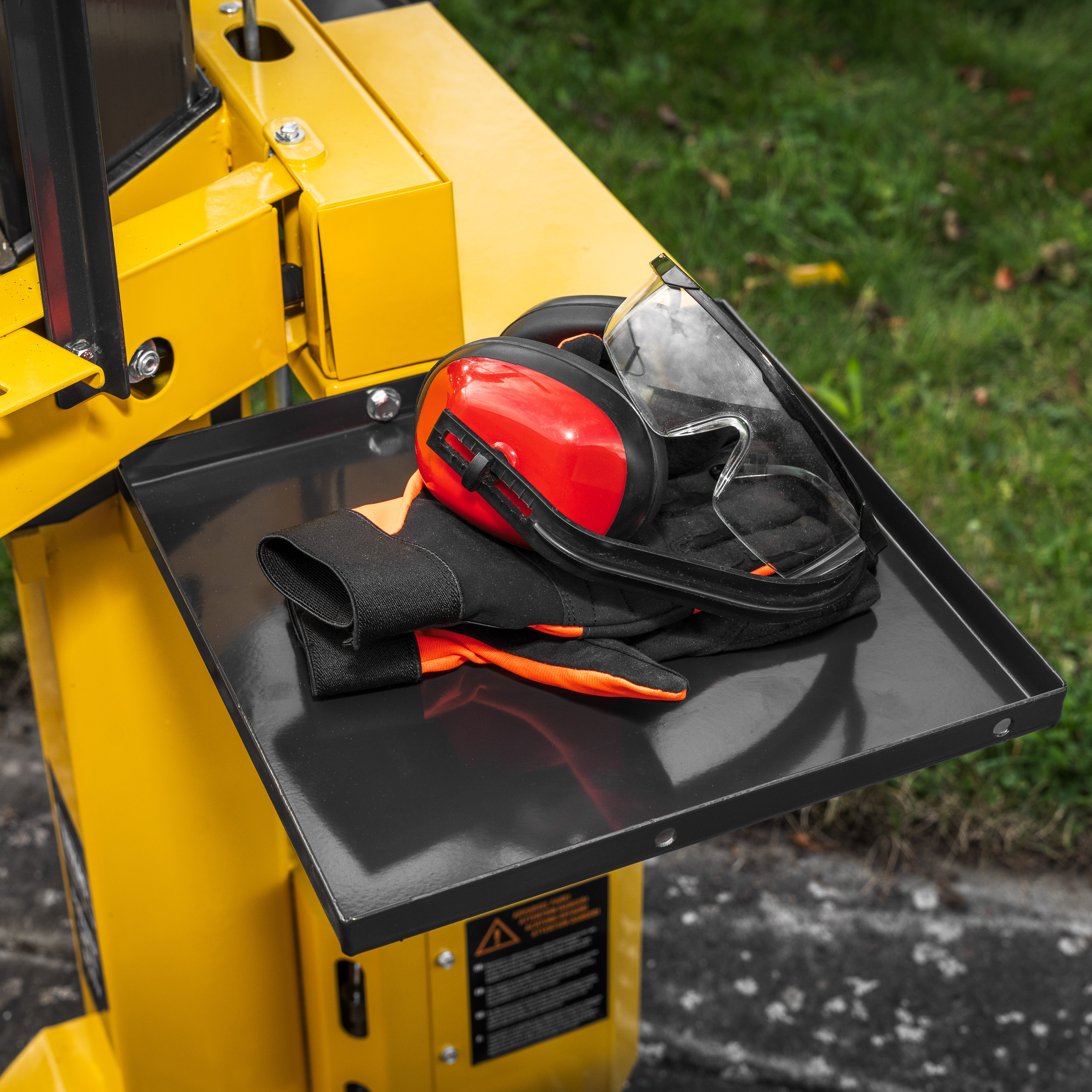

Protective clothing is included.

Ensure the splitter is connected to a power supply matching the specifications on the machine's nameplate. For cables shorter than 25 meters, the copper cross-section must be at least 1.5 mm²; for cables longer than 25 meters, a minimum of 2.5 mm² is required. A 16-amp fuse is necessary.
