XC160-108H

Product data
Art no : 90063131
EAN : 5708906928446
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele

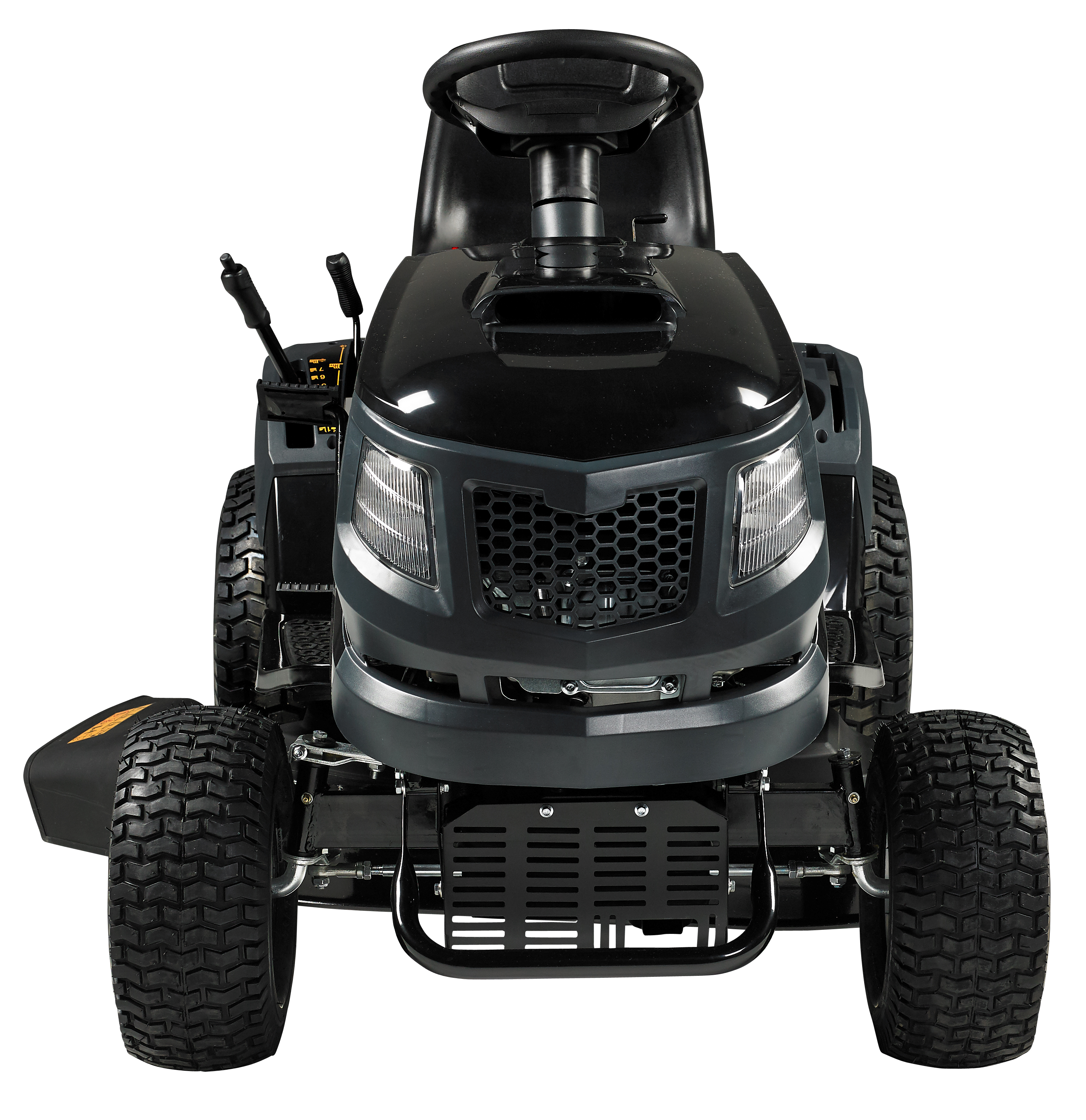

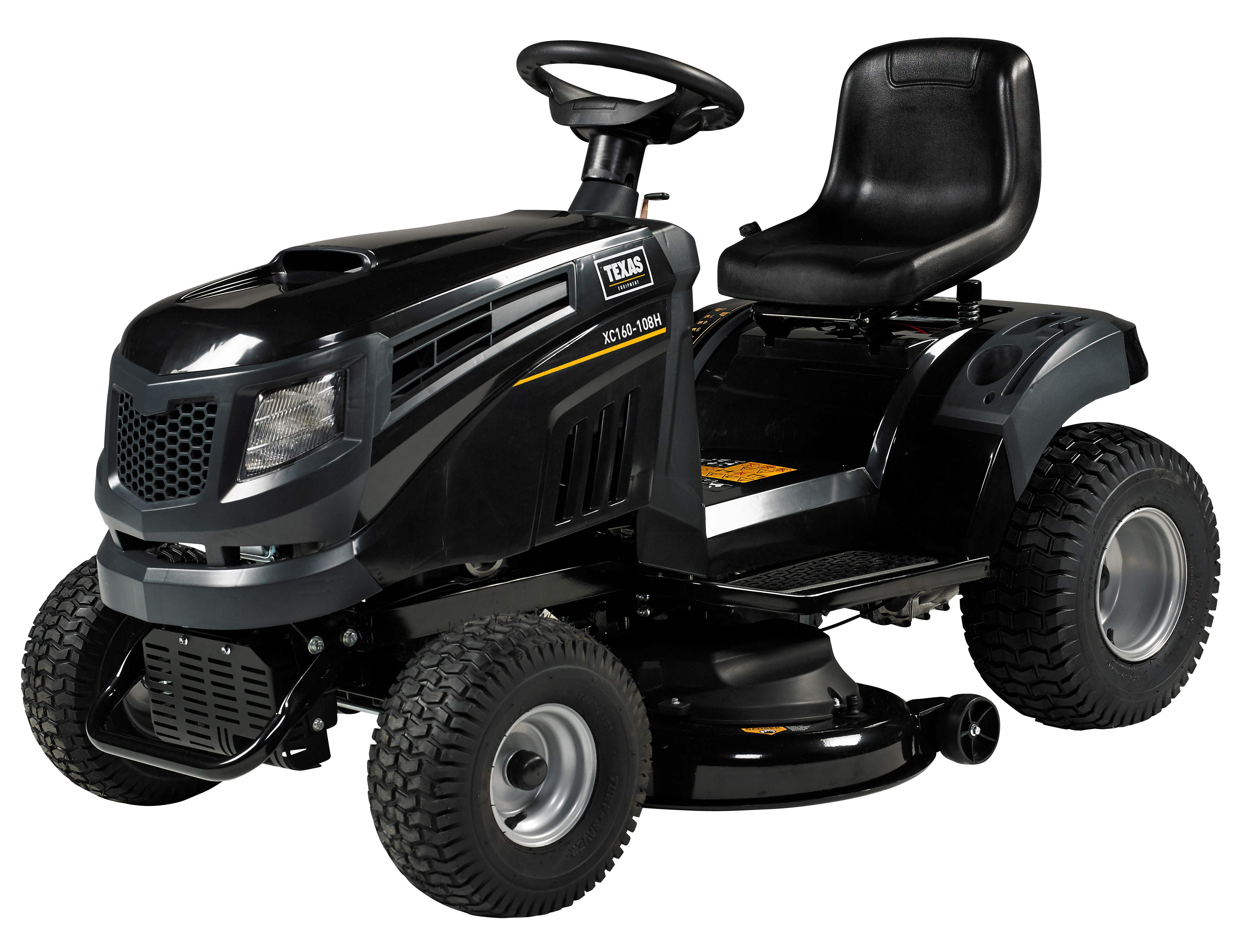

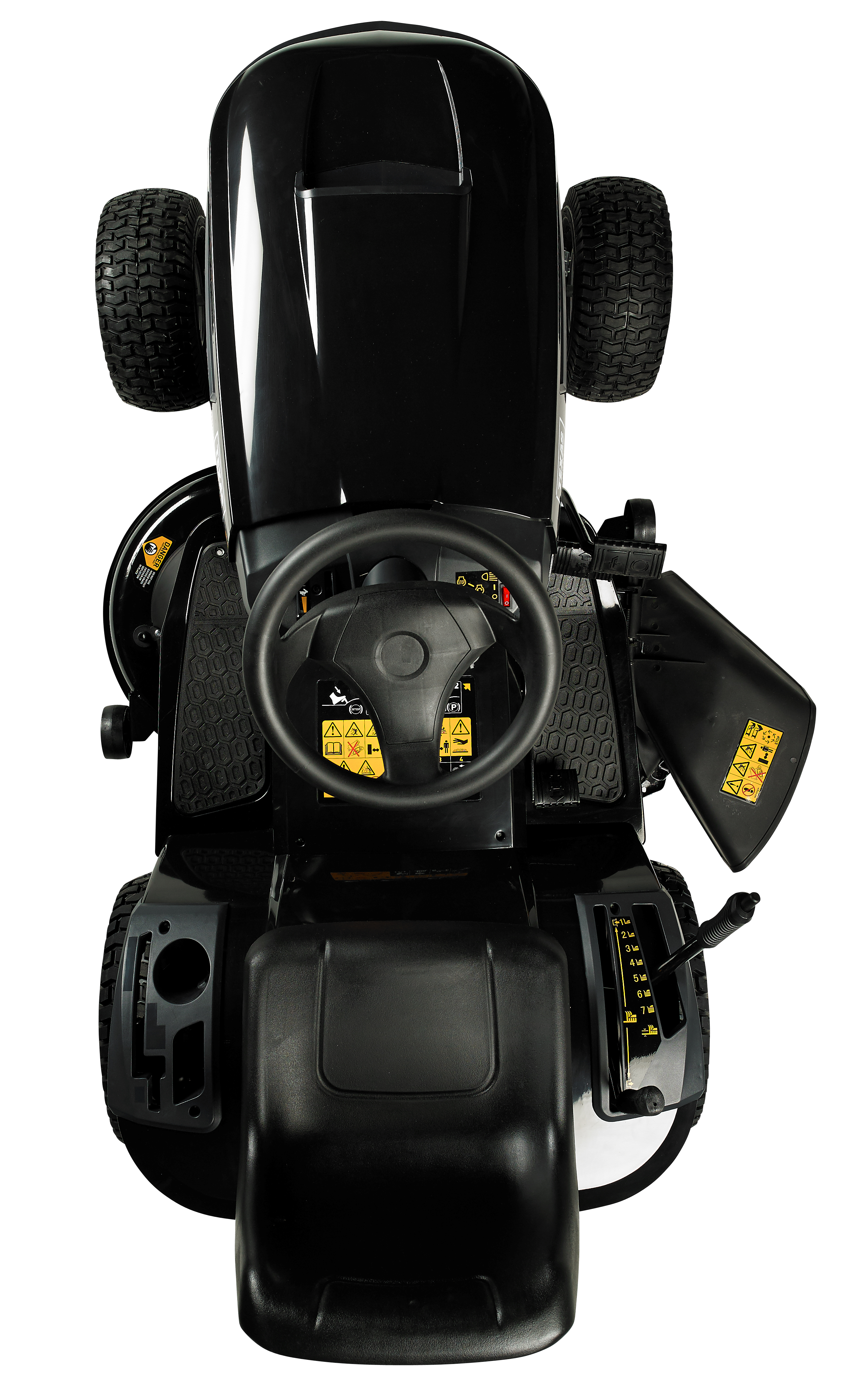

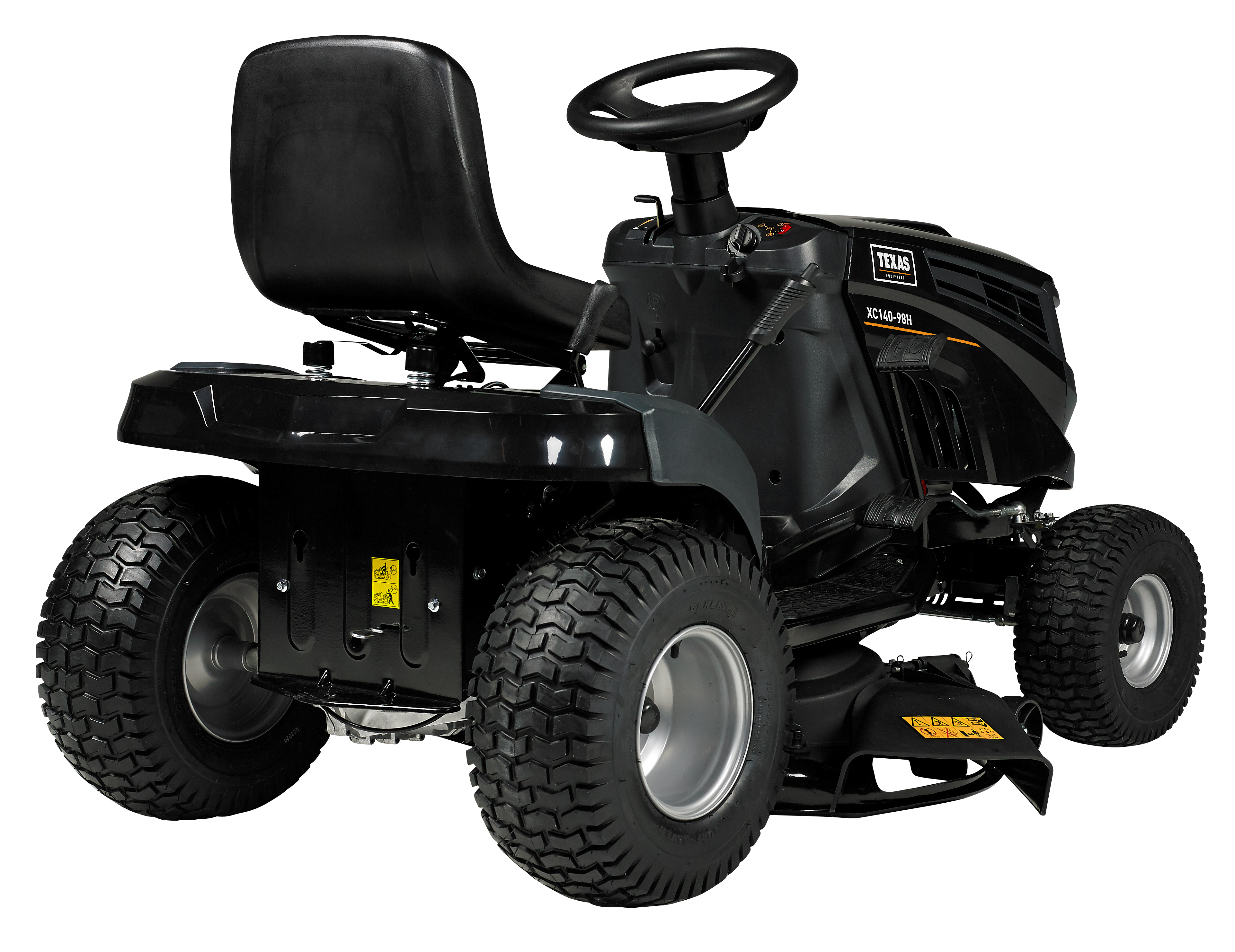

Productdescription XC160-108H


TEXAS XC models are built on a strong frame and fitted with powerful engine.

TEXAS XC160-108H is a lawn tractor with a powerful 452 cc Loncin engine. and 18 V electric start function.

XC160-108H is fitted with hydrostatic transmission from USA (acts as a kind of automatic transmission)

XC160-108H has a cutting width of 108 cm and there is a 7-step height adjustment from 30-90 mm, and a turning radius of only 45 cm.

The model has several small practical features:
1. A front bumper protects the lawn tractor from damage.
2. All control levers are conveniently located near the driver's seat
3. Extra large fuel tank of about 7.5 L

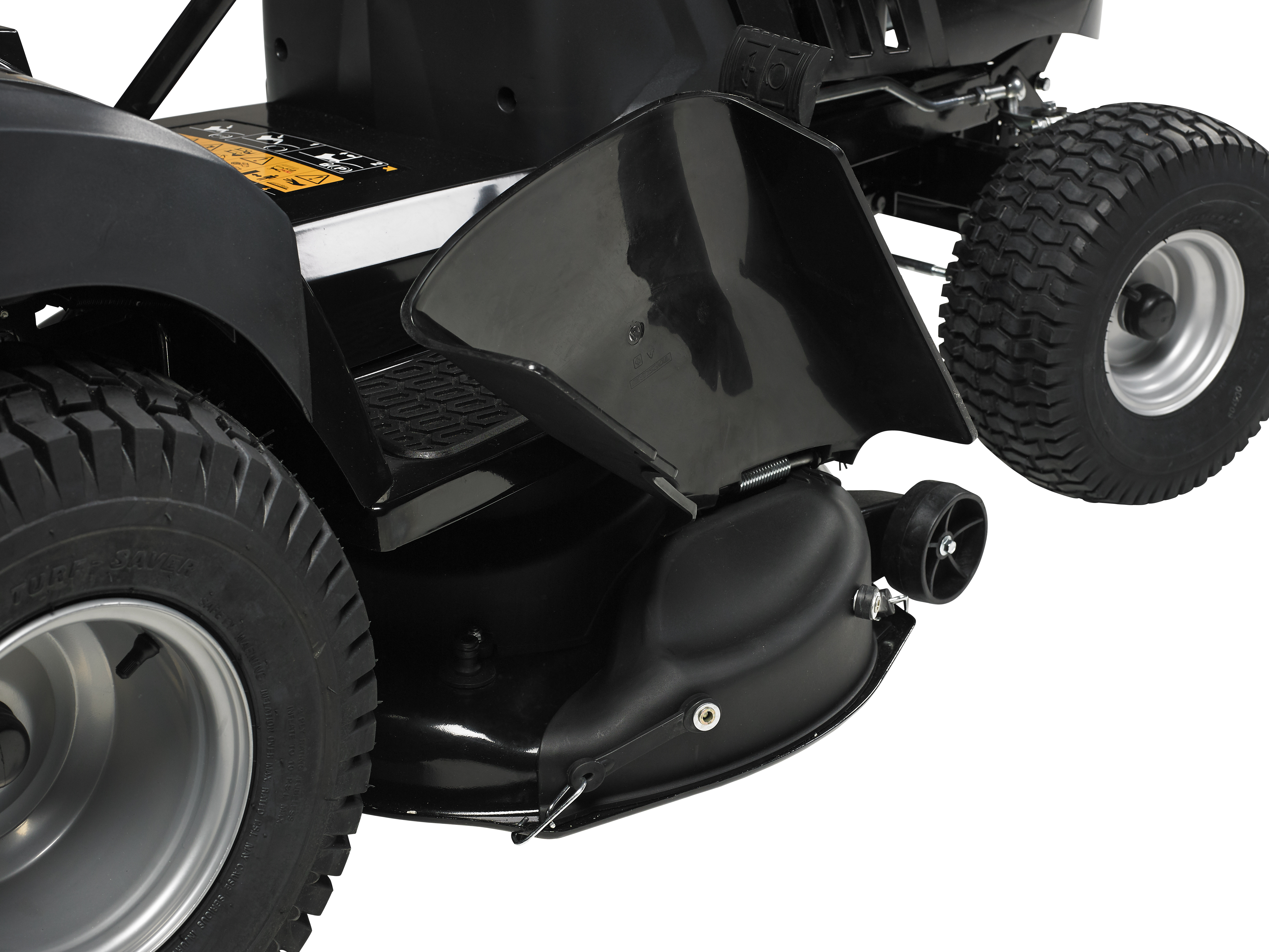

Mulching kit is included, so that you have possibility for mulching or side discharge. The model has a trailer hook for rearmounted accessories such as trailer, scarifier or grass / leaf collector).




Specifikationer


Engine
Engine : Loncin
Engine type : 4 stroke
CC : 452 cc
Tank capacity : 7,5 litre
Output (Max) : 9,2 kW v. 3600 rev./min.
Power : 8,3 kW v. 2800 rev./min.
Starter : Electric
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 1,2 litre
Equipment
Mulching : Extra equipment
Dispatch tupe : Yes
Functions
Cutting height : 30-90 mm
Cutting width : 108 cm
Trailer hook : Yes
Number of knives : 2 pce.
Height ajustment : Central
Knife : Metal
Kniv clutch : Manual
Shield material : Steel
Number of high adjustments : 7 positions
Front light : Yes
Adjustable seat : Adjustable
Speed : 0-8,8 km/hr
Operation
Rear wheel drive : Yes
Gear system : Hydrostatic
Wheels
Wheel size front : 15 x 6.00-6
Big air pressured rubber wheels : Inflatable rubber tyres
Wheel size rear : 18 x 8.50-8
Battery
Power : 12V/18 Ah
Emission
LWA guaranteed : 100
Dimensions
Machine width : 132 cm
Machine length : 173 cm
Machine height : 105 cm
Weight : 170 kg
Box width : 171 cm
Box length : 117 cm
Box height : 84 cm
