Rider 7600E 3i1

Product data
Art no : 90063120
EAN : 5708906917426
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy


Productdescription Rider 7600E 3i1


TEXAS Rider 7600E is a small and compact ride-on-mower with easy operation and suitable for gardens between 800-1500 m2.

Rider 7600 Series is fitted with a strong steel deck, large wheels and a wide cutting width of 76 cm.

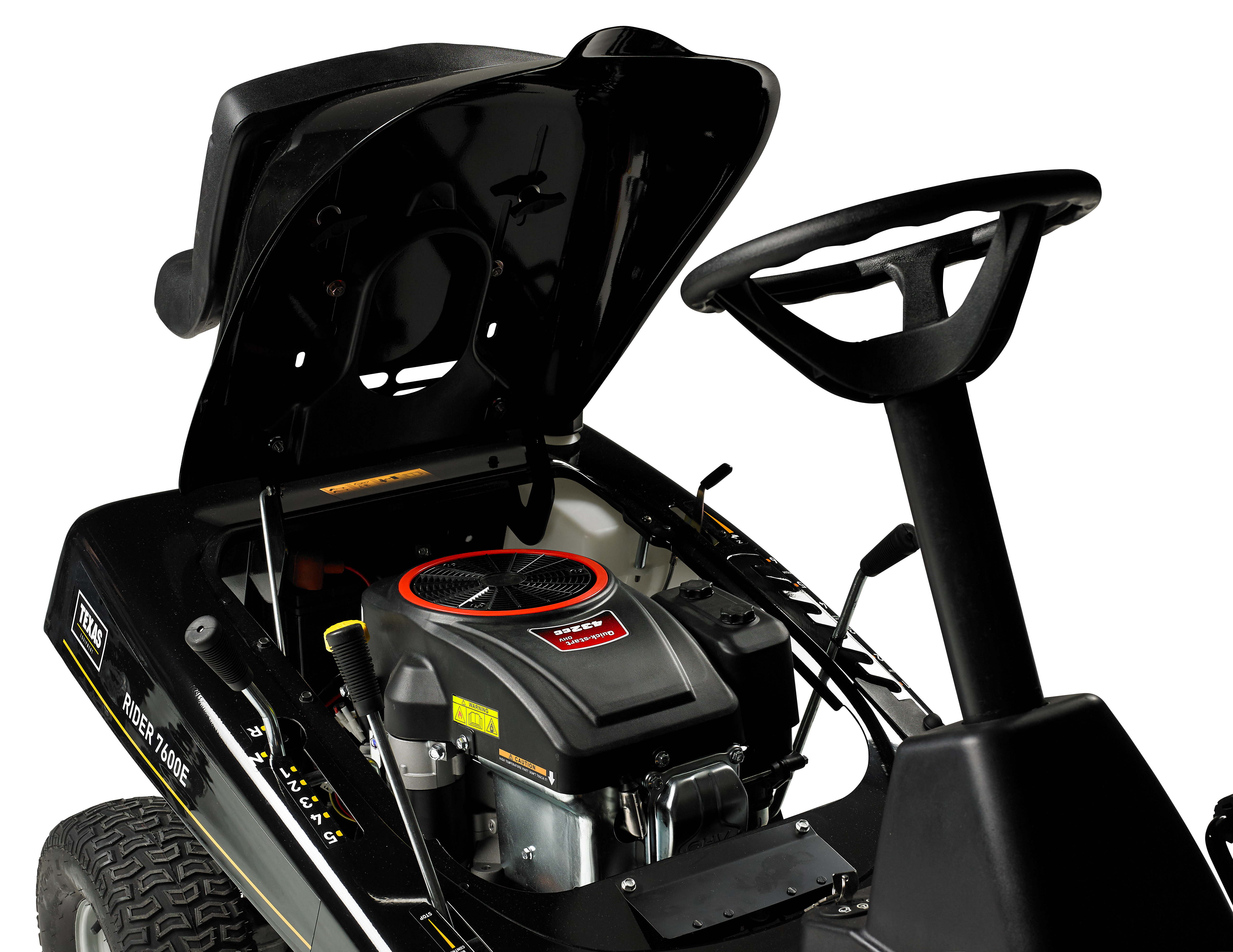

Teh model has a powerful 432 cc 4-stroke Loncin engine with 12V electric start.
Furthermore, it has 5 gears forward and 1 reverse gear, and it is fitted with clutch, brake, parking brake, choke / throttle control and mechanical start of knife.

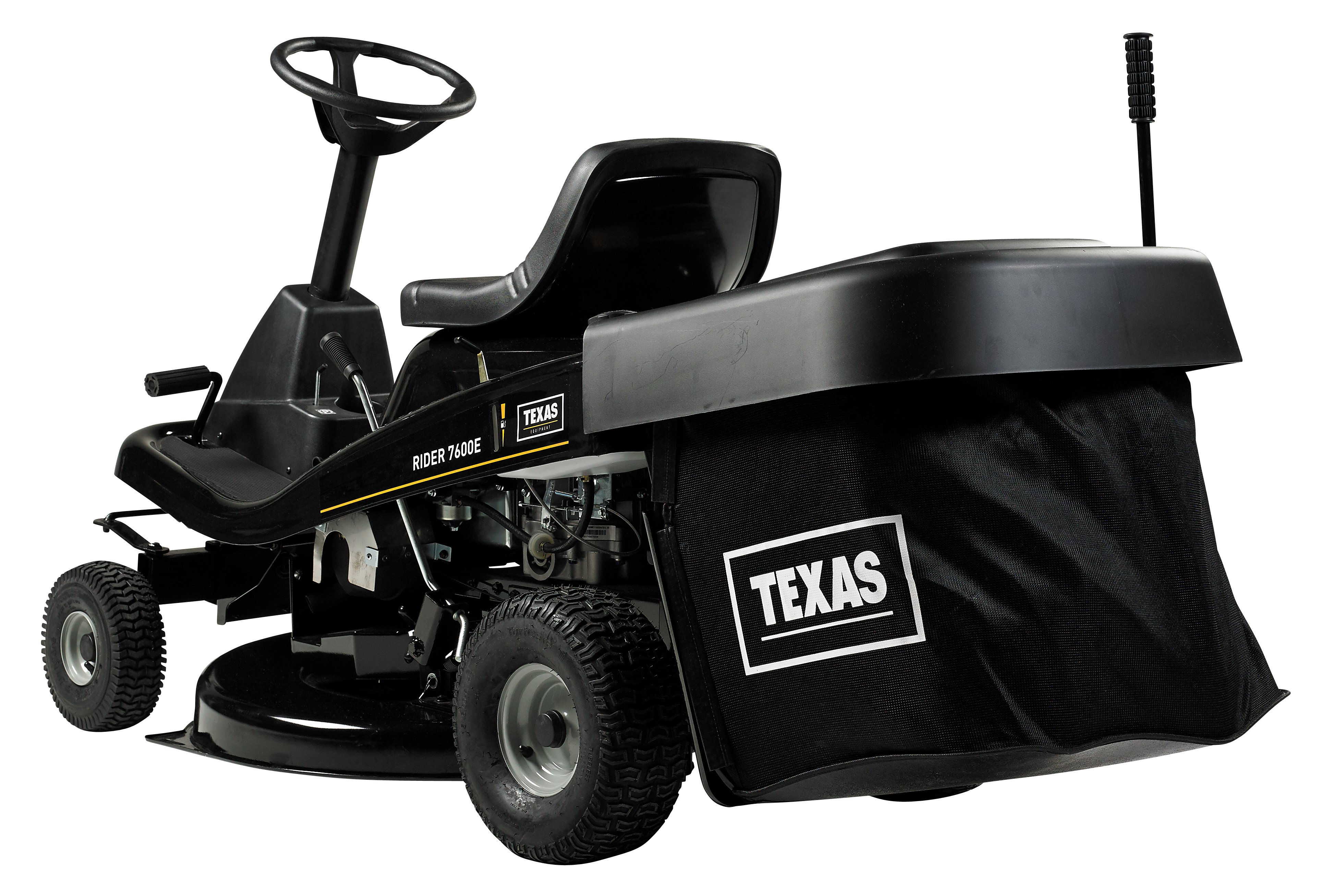

Rider 7600E 3in1 offers cutting function mulching, side discharge and collection with the 250 L collector box.

Furthermore TEXAS Rider 7600E is fitted with a trailer hook, for a small trailer (Max load. 50 kg) spreader or a leaf/grass collector.

Rider 7600E is recommended for lawns that are relatively flat.




Specifikationer


Engine
Engine : Loncin
Engine model : LC1P90F-1
Engine type : 4 stroke
CC : 432 cc
Tank capacity : 4,2 litre
Output (Max) : 8,8 kW v. 3600 rev./min.
Power : 8,0 kW v. 2800 rev./min.
Starter : Electric
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 1,2 litre
Equipment
Mulching : Yes
Dispatch tupe : Yes
Working width : 90- 100 cm
Functions
Cutting height : 30-76 mm
Cutting width : 76 cm
Trailer hook : Yes
Number of knives : 1 pce.
Height ajustment : Central
Knife : Metal
Turning radious (inner mesurements) : 107 cm
Kniv clutch : Manual
Shield material : Steel
Number of high adjustments : 6 positions
Speed : 1,5-4,6 km/hr
Operation
Rearward gears : 1
Forward gears : 5
Gear system : Manual
Wheels
Wheel size front : 10''
Big air pressured rubber wheels : Inflatable rubber tyres
Wheel size rear : 15''
Battery
Power : 12V/7 Ah
Emission
LWA guaranteed : 100
Features
Collecting box : 170 litre
Dimensions
Machine width : 92 cm
Width : 90 cm
Machine length : 171 cm
Machine height : 77 cm
Weight : 160 kg
