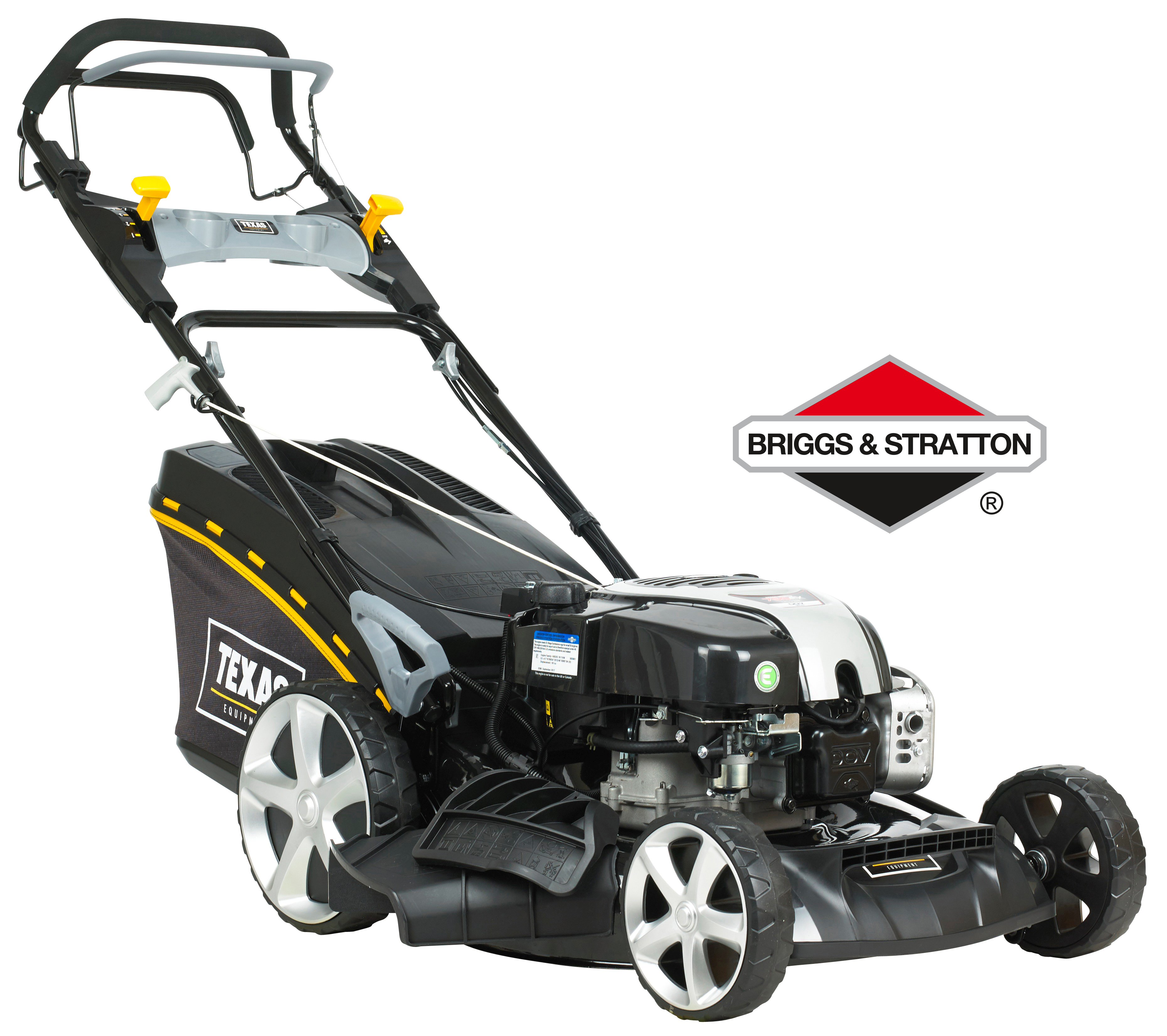

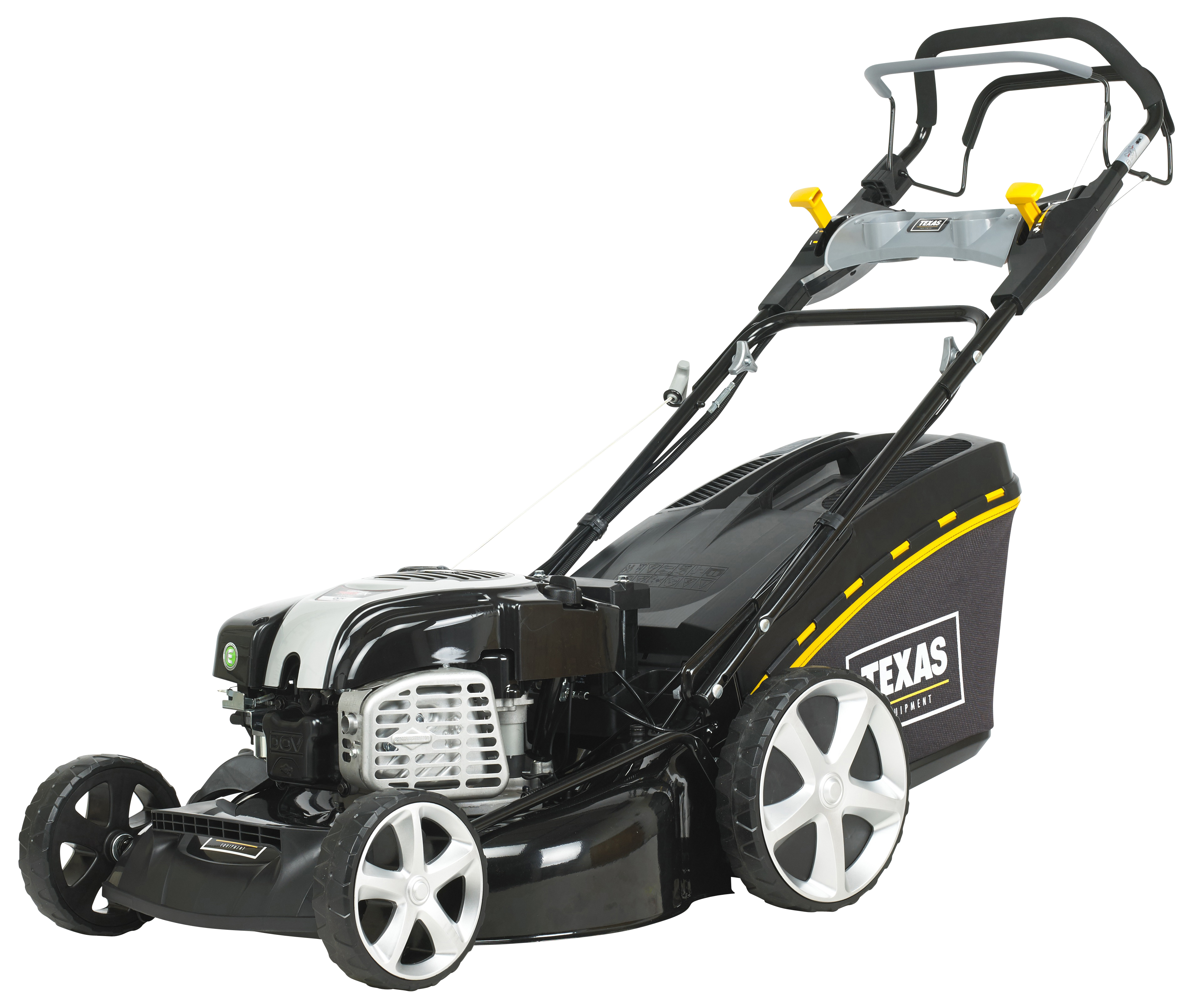

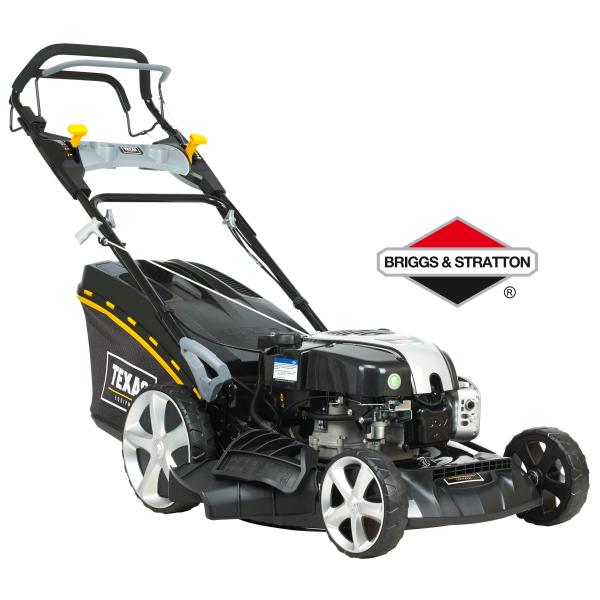

Razor 5180TR/WE 4-speed

Product data
Art no : 90066579
EAN : 5708906901173
Catalogues
EN
(2022)
DE
(2022)
FR
(2022)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele


Specifikationer


Engine

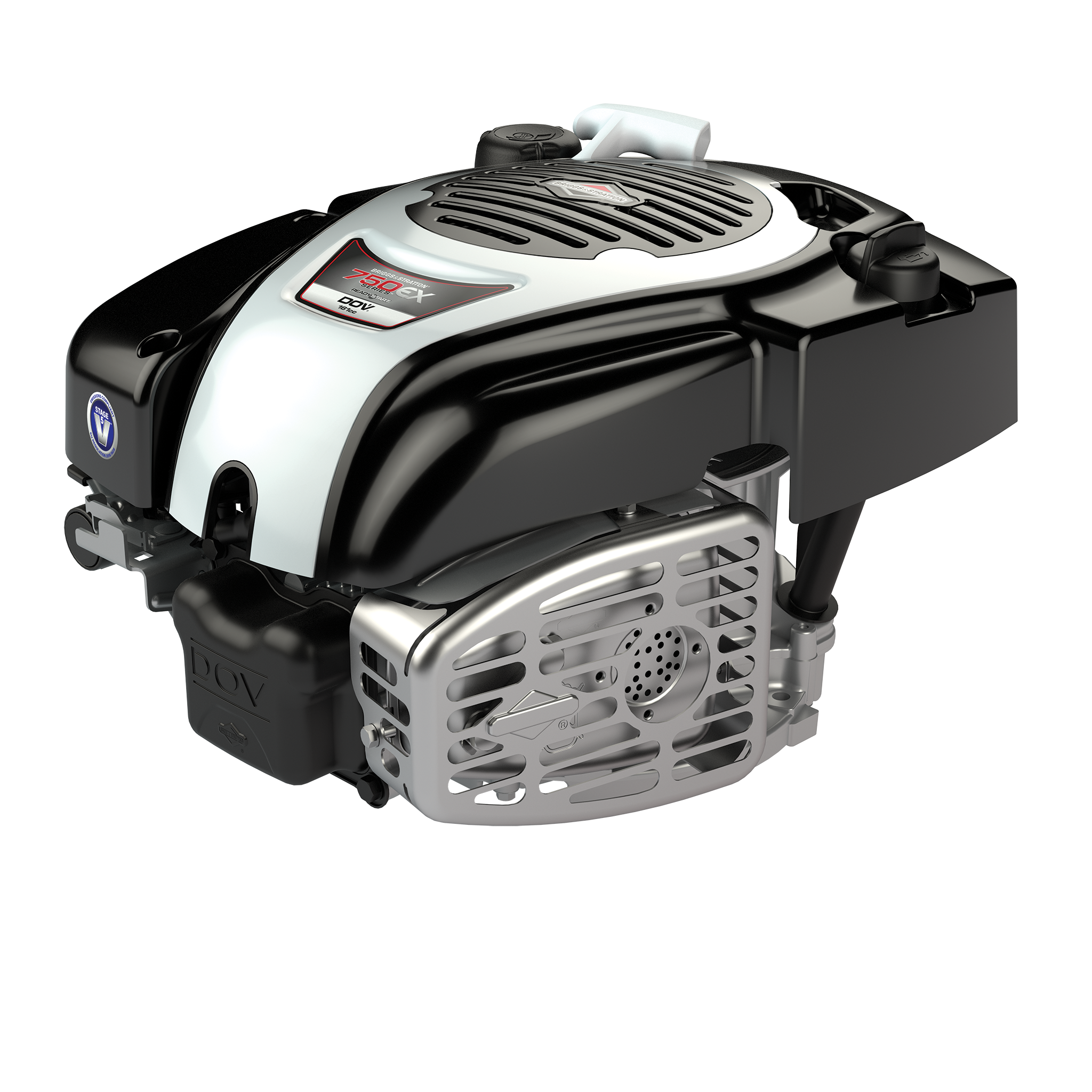

Engine : Briggs & Stratton
Engine model : DOV 750EX Series
Engine type : 4 stroke
CC : 161 cc
Tank capacity : 1 litre
Power : 2,6 kW v. 2800 rev./min.
Noise level : 98 dB
Airfilter : Paper
Cylinder : 1
Starter : Electric/recoil start
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Mulching : Yes
Speed forward max : 2,3-4,3 km/hr
Dispatch tupe : Yes
Handle

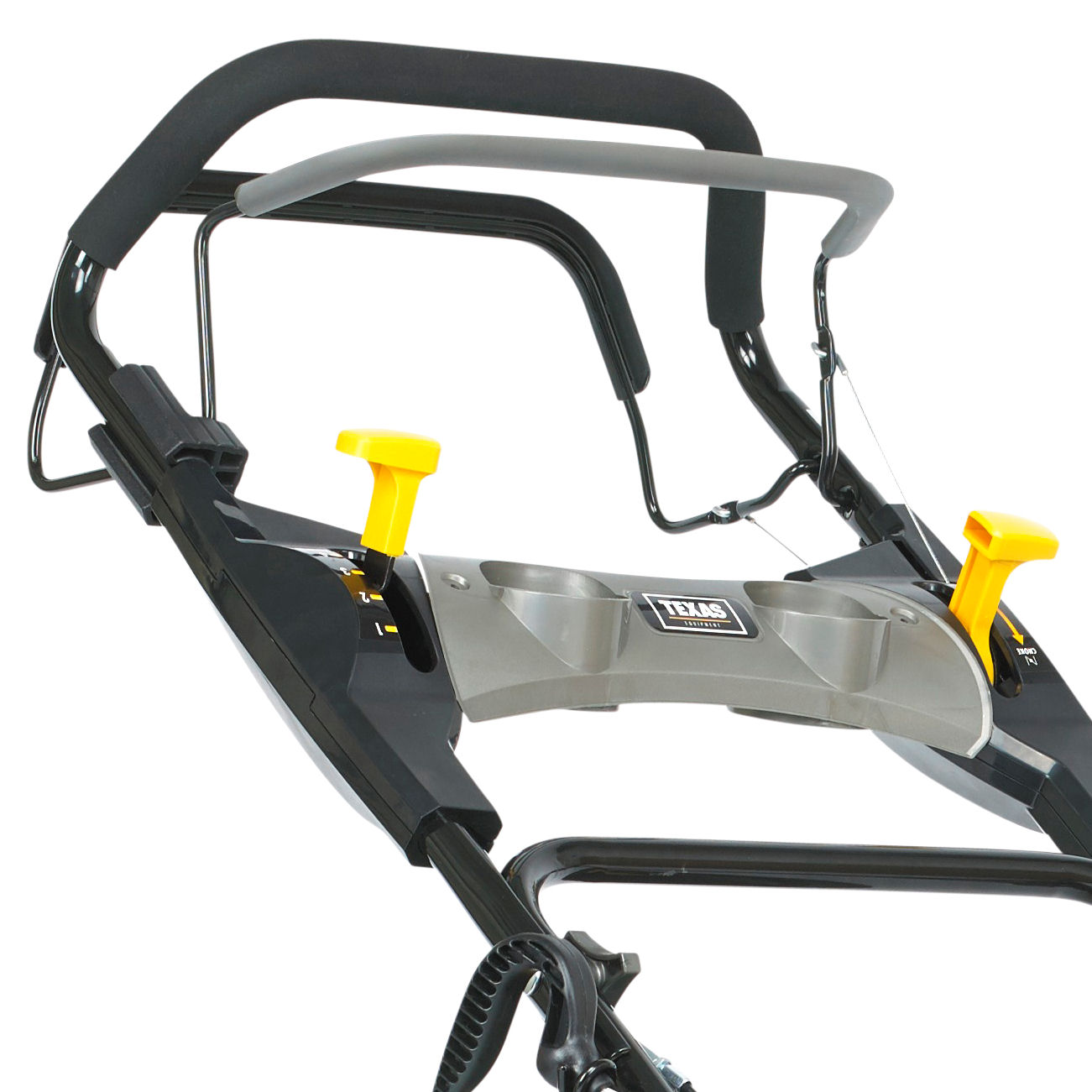

Handle bar : Adjustable
Functions
Cutting height : 28-75 mm
Cutting width : 51 cm
Rear discharge : Yes
Pull : Yes
Number of knives : 1 pce.
Height ajustment : Central
Knife : Metal
Shield material : Steel
Number of high adjustments : 6 positions
Gas adjustment : Yes
Operation
Forward gears : 4
Wheels
Wheel size front : 8''
Wheel size rear : 11''
Bearings : Ball bearing
Features
Collecting box : 65 litre
Dimensions
Weight : 41 kg
Box width : 82 cm
Box length : 60 cm
Box height : 50 cm
