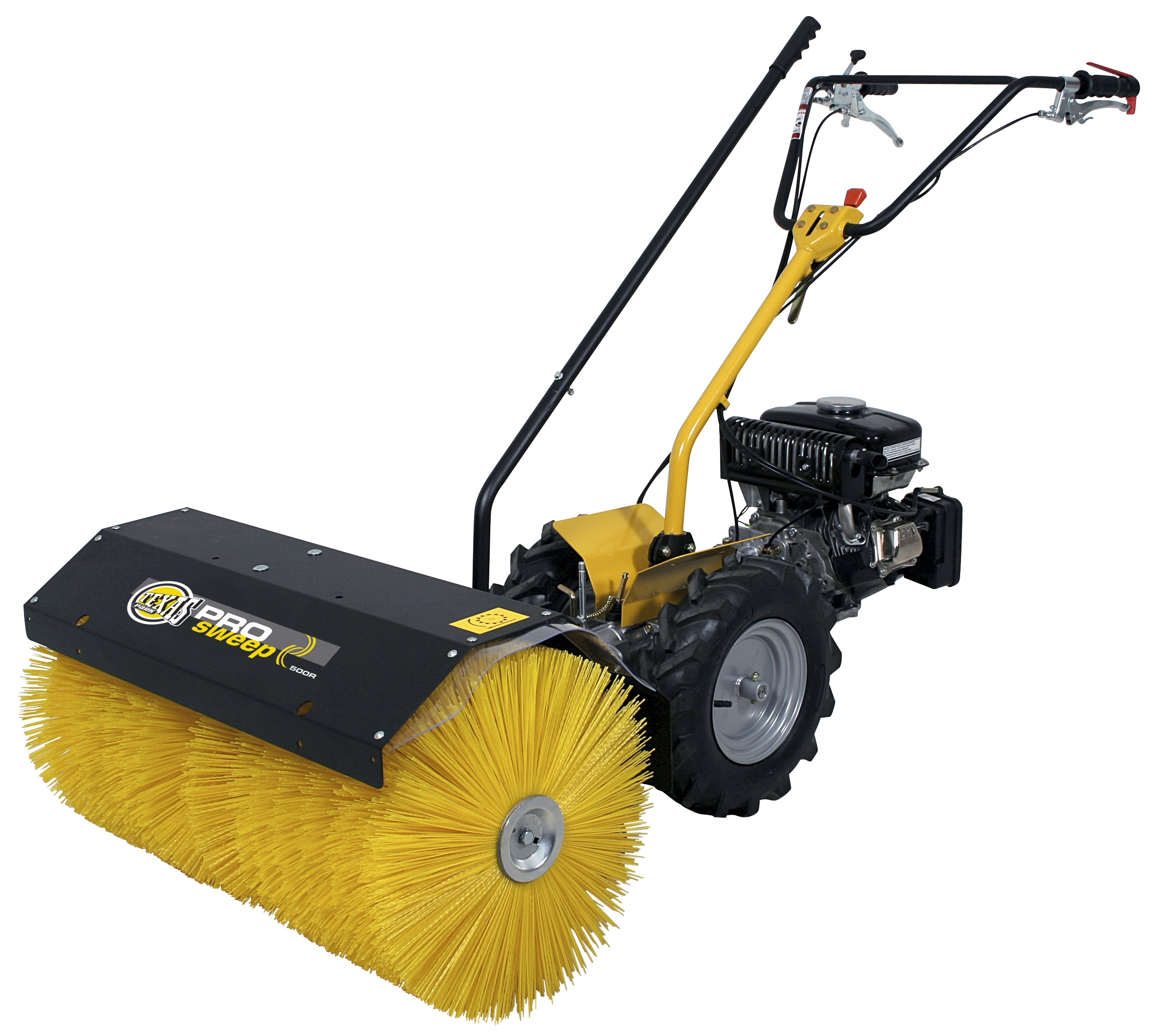

Pro Sweep 500R
Specifications
| Engine | |
| Engine model |
: Power Line
|
| CC |
: 163 cc
|
| Engine type |
: 4 stroke
|
| Tank capacity |
: 4.5 litre
|
| Power |
: 3.7 kW
|
| Power |
: 3600 rev./min.
|
| Noise level |
: 105.0 dB
|
| Spark plug |
: W20 EPU (DENSO)
|
| Airfilter |
: Paper with foam filter
|
| Electrode distance |
: 0.7 - 0.8 mm
|
| Valve adjustment (intake) |
: 0.15 mm
|
| Ignition system |
: TCI
|
| Valve adjustment (exhaust) |
: 0.20 mm
|
| Cylinder |
: 1
|
| Cooling system |
: Air cooled
|
| Starter |
: Recoil
|
| Functions / Equipment | |
| Adjustable sweeper |
: 3 positions
|
| Big air pressured rubber wheels |
: Inflatable rubber tyres
|
| Broom diameter |
: 450 mm
|
| Clutch |
: Dry manual clutch
|
| Engine oil |
: 0.6 litre
|
| Forward gears |
: 1
|
| Gasoline/diesel |
: Gasoline
|
| Handle bar |
: Adjustable
|
| Oil |
: SAE 30
|
| PTO rotation |
: Anti clockwise
|
| Power |
: 5 HP
|
| Rearward gears |
: 1
|
| Speed |
: 3 km/hr
|
| Wheel size |
: 4.00 x 8
|
| Working width |
: 80 cm
|
| broom speed |
: 300 rev./min.
|
| Dimensions | |
| Weight |
: 99 kg
|
| Info | |
| Manufacturer |
Texas A/S
| Knullen 22 | DK-5260 Odense S | Denmark Tel. +45 6395 5555 | www.texas.dk | VAT DK 66212319 |
