XC160-102HC

Product data
Art no : 90063132
EAN : 5708906955701
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele
Manual Spare parts

Productdescription XC160-102HC

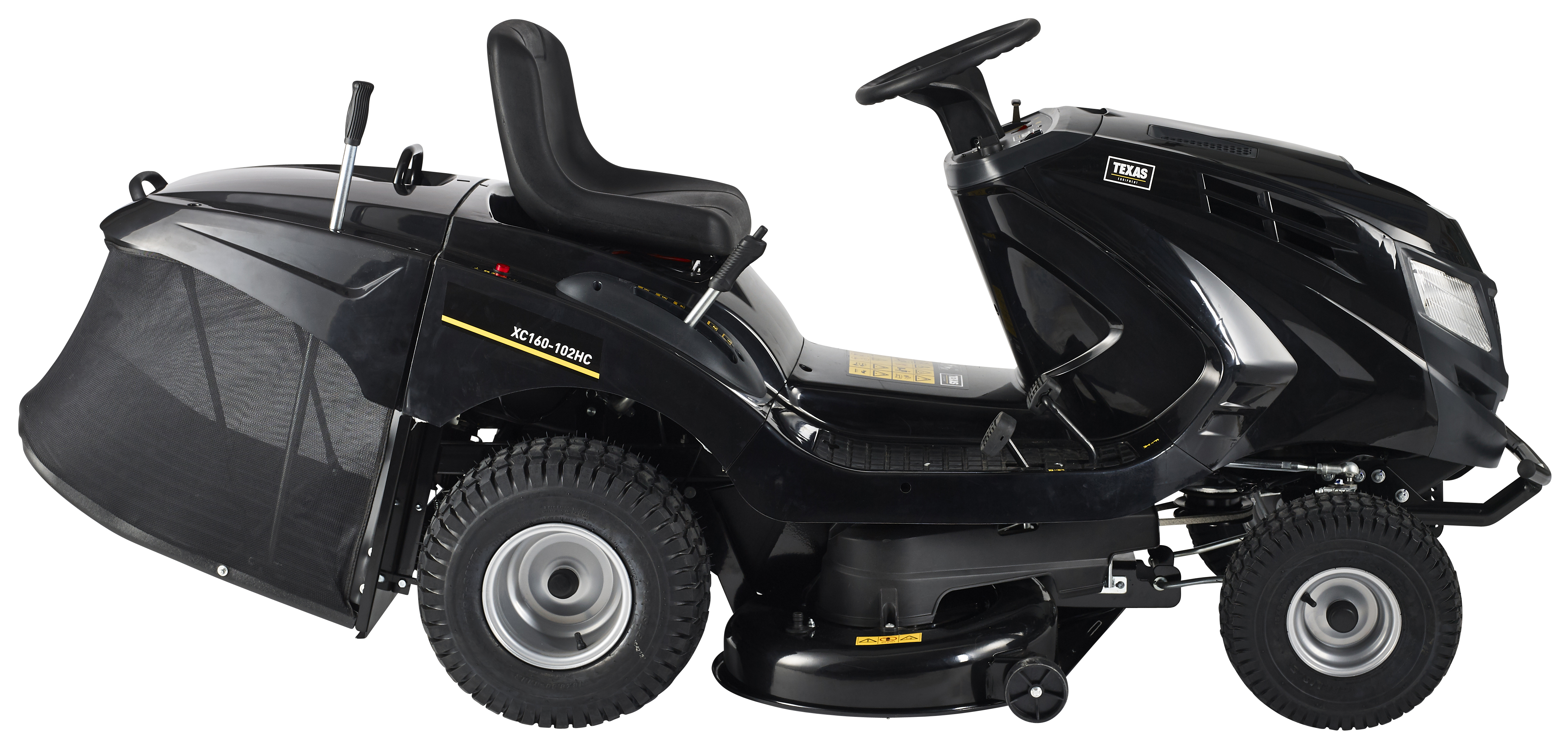

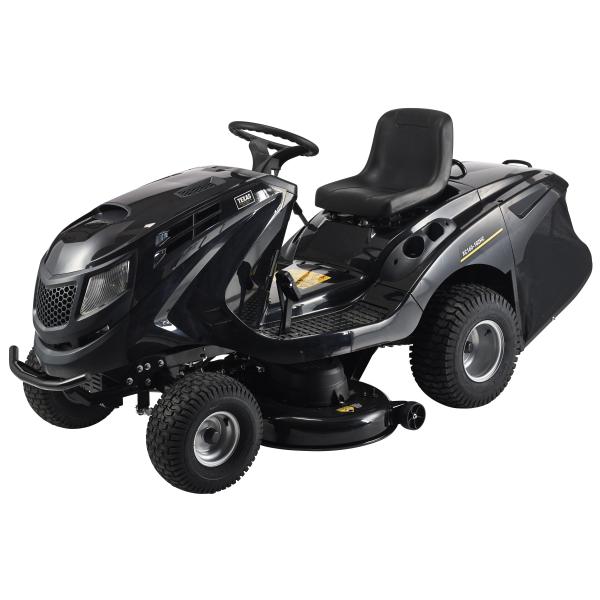

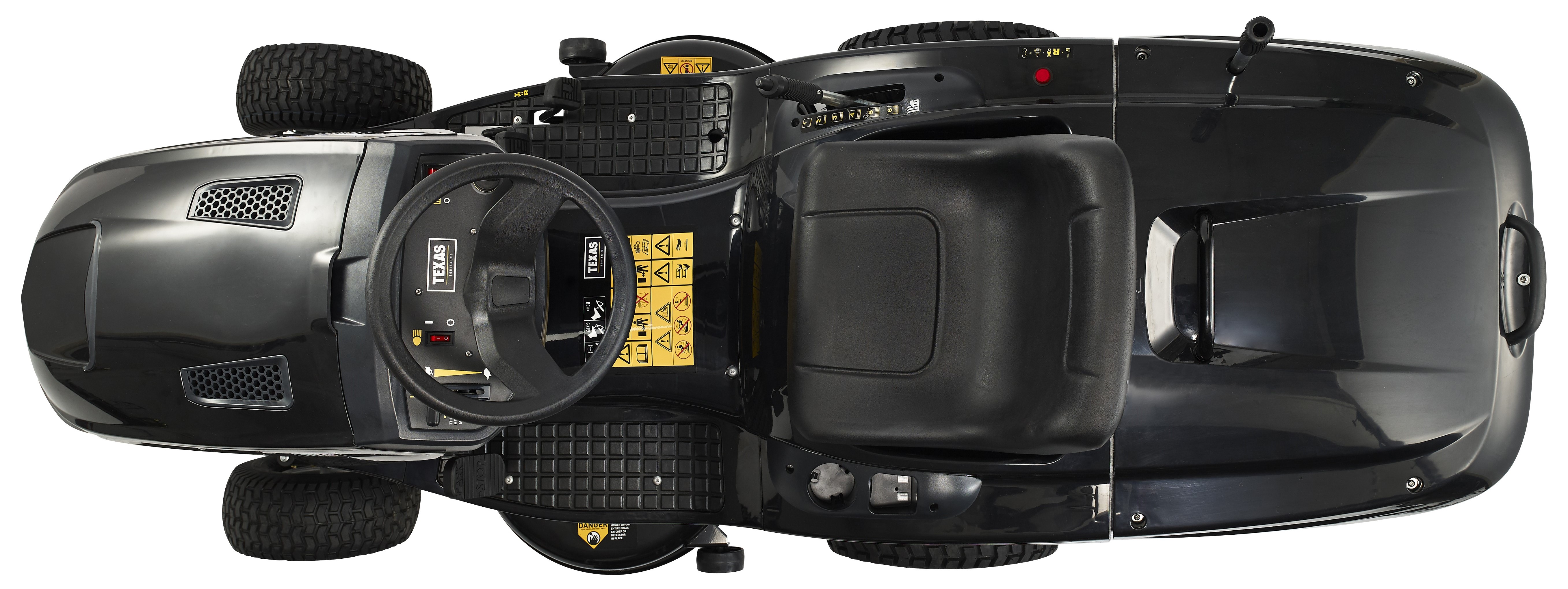

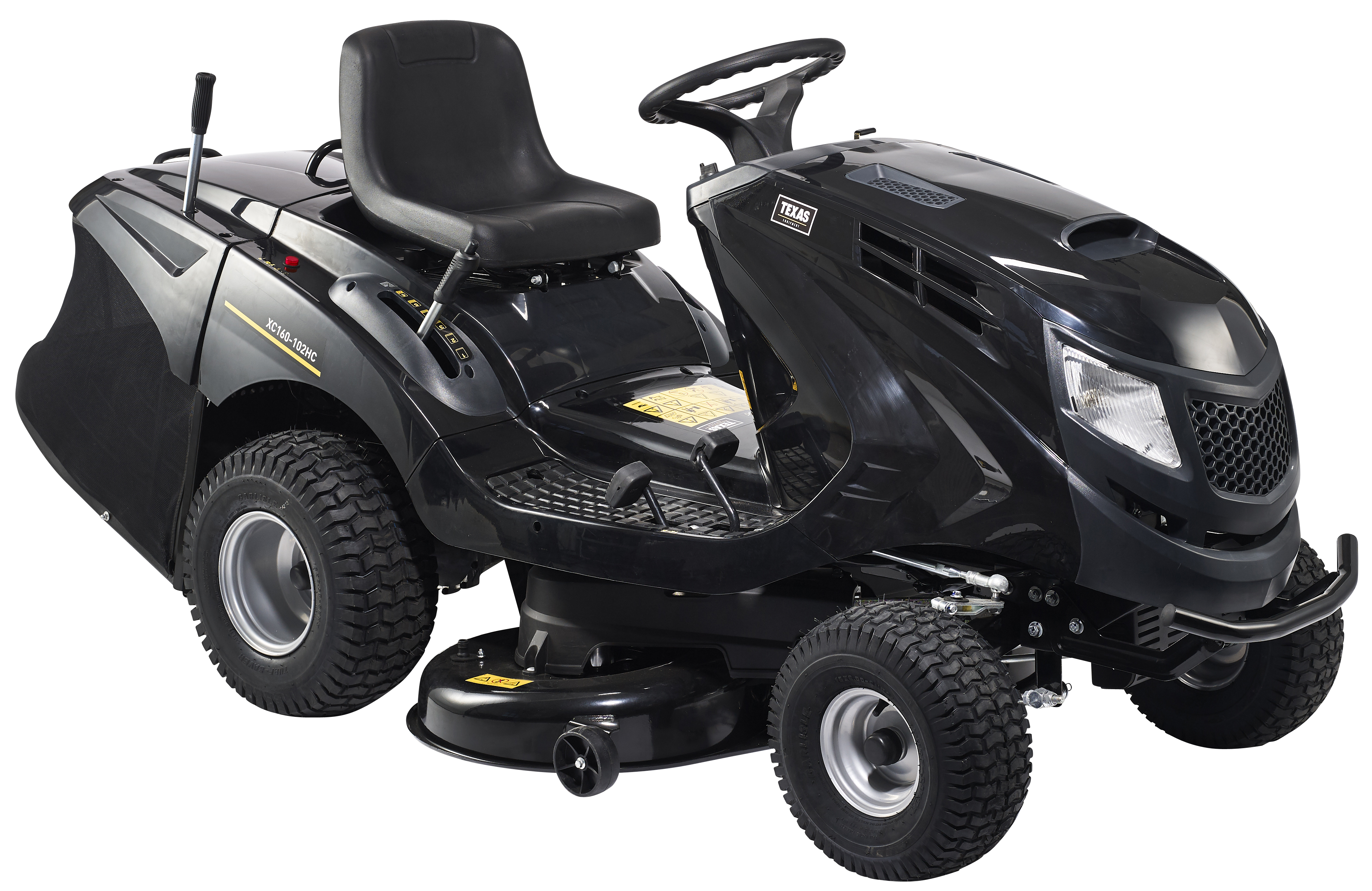

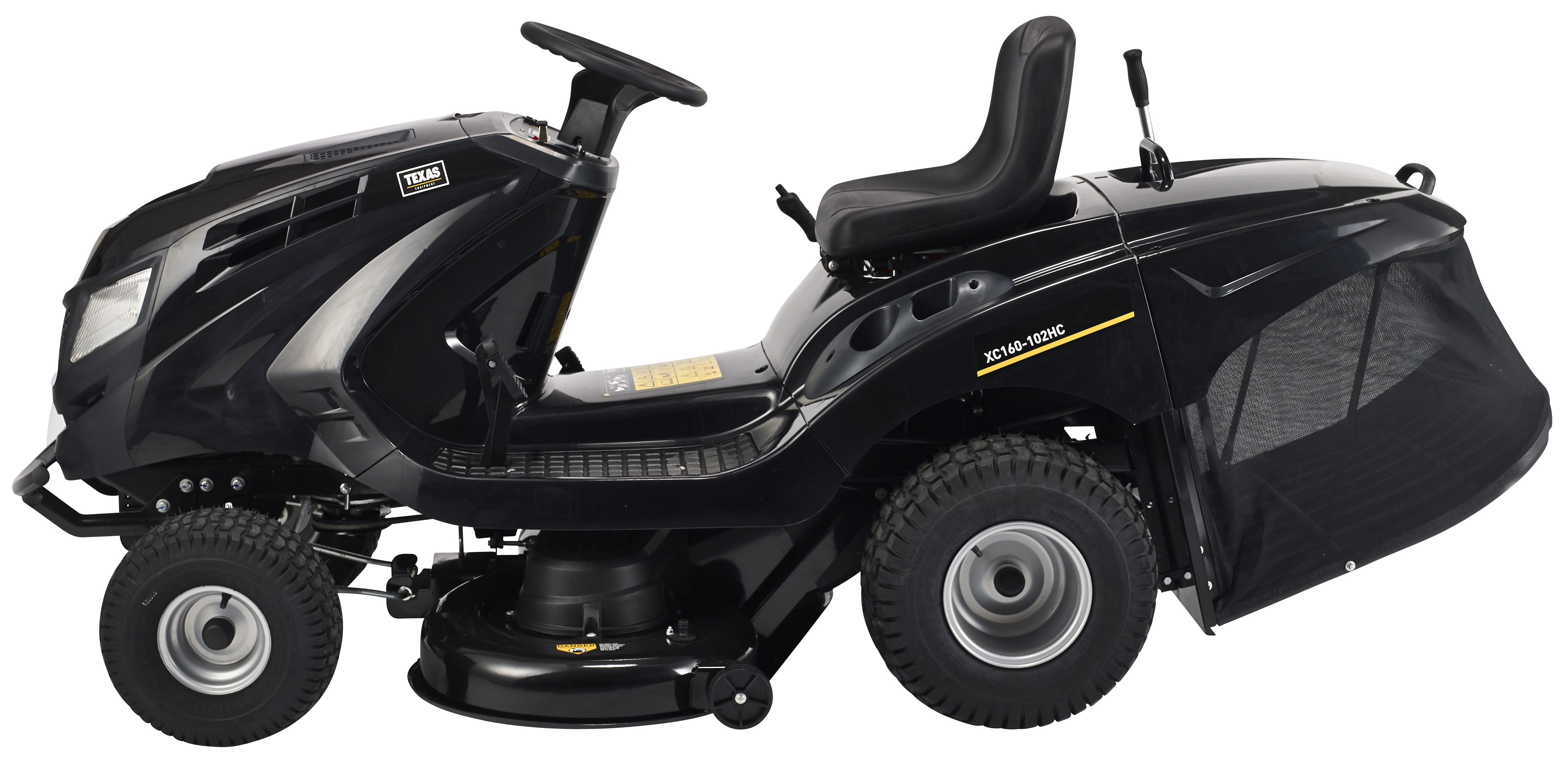

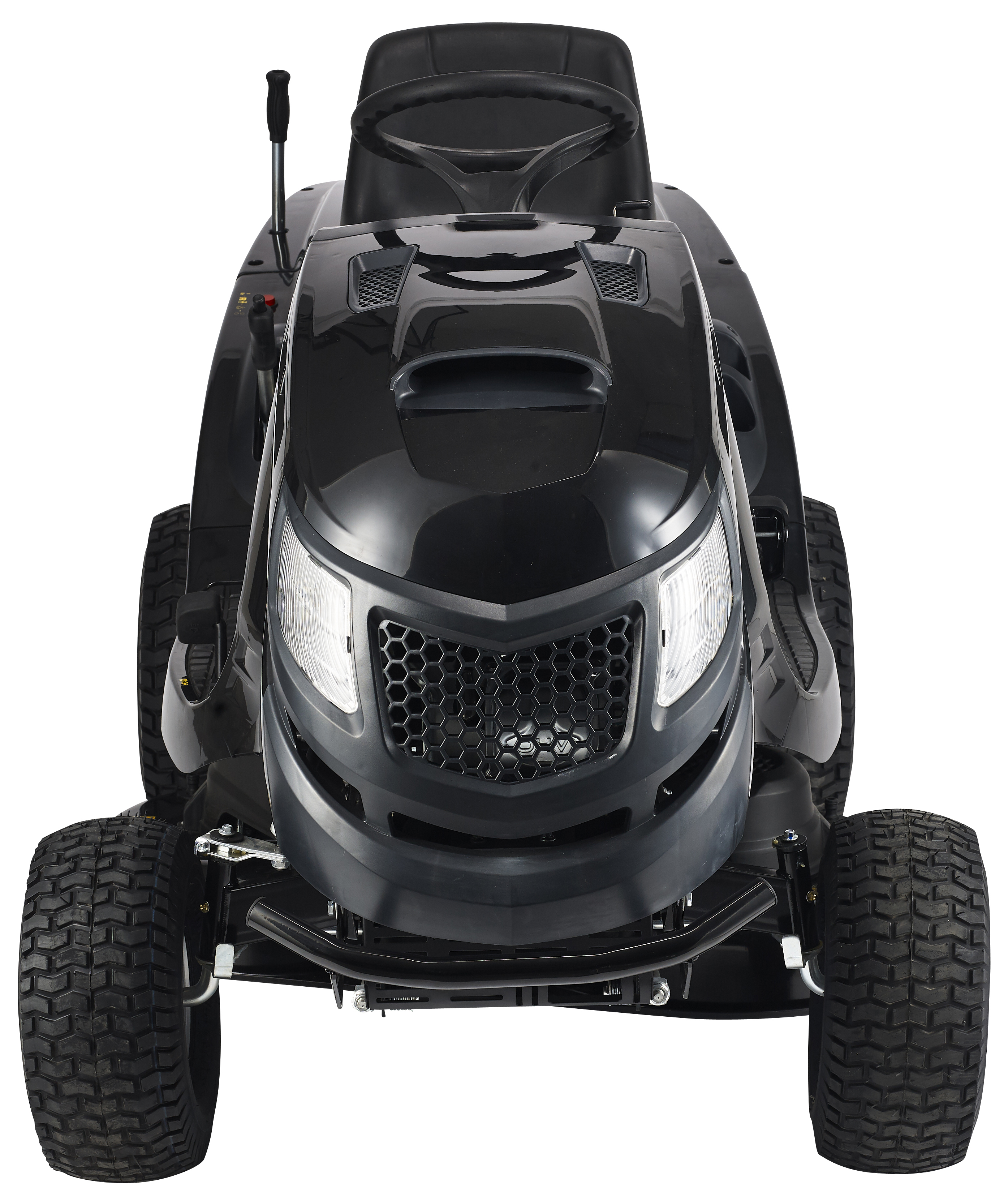

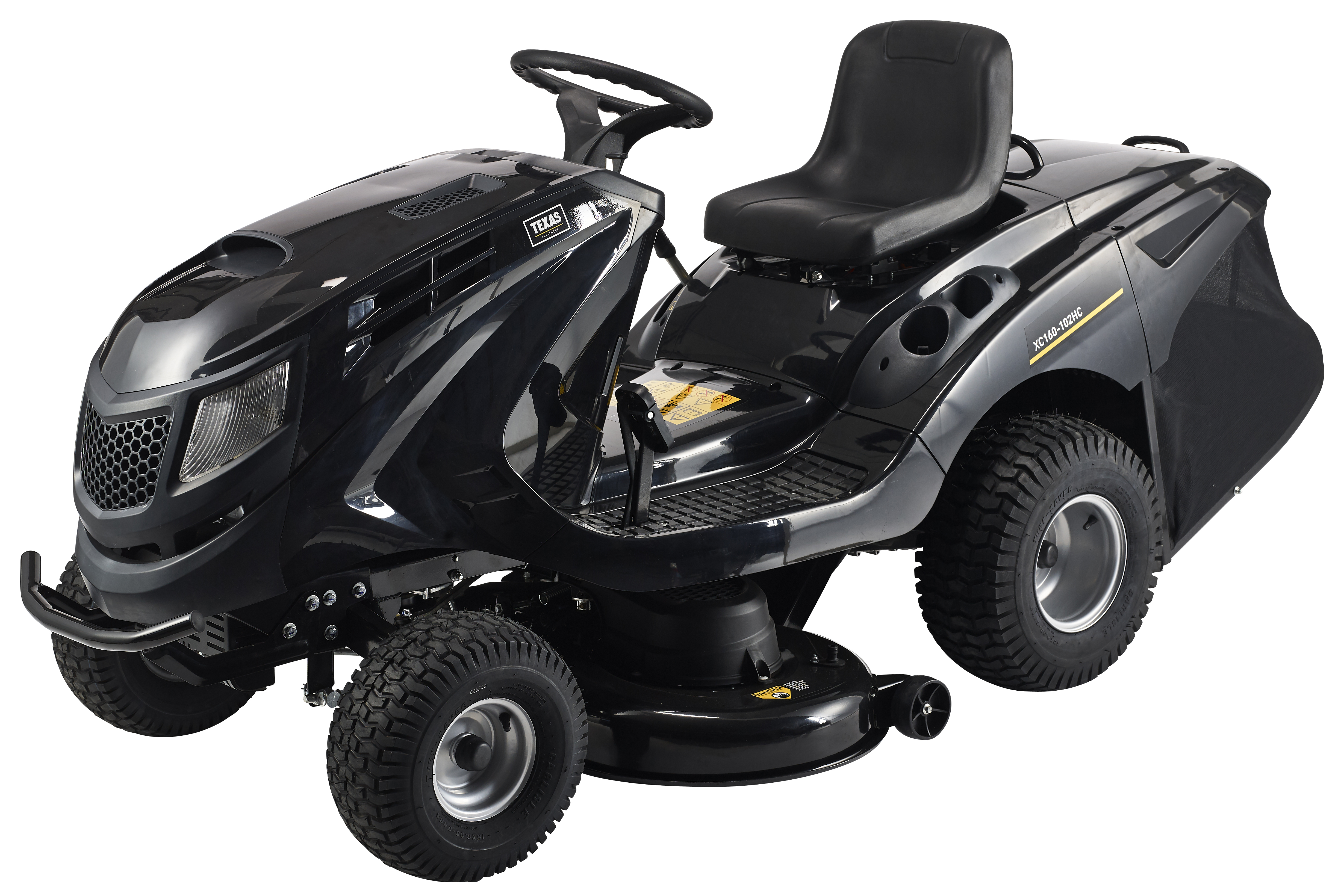

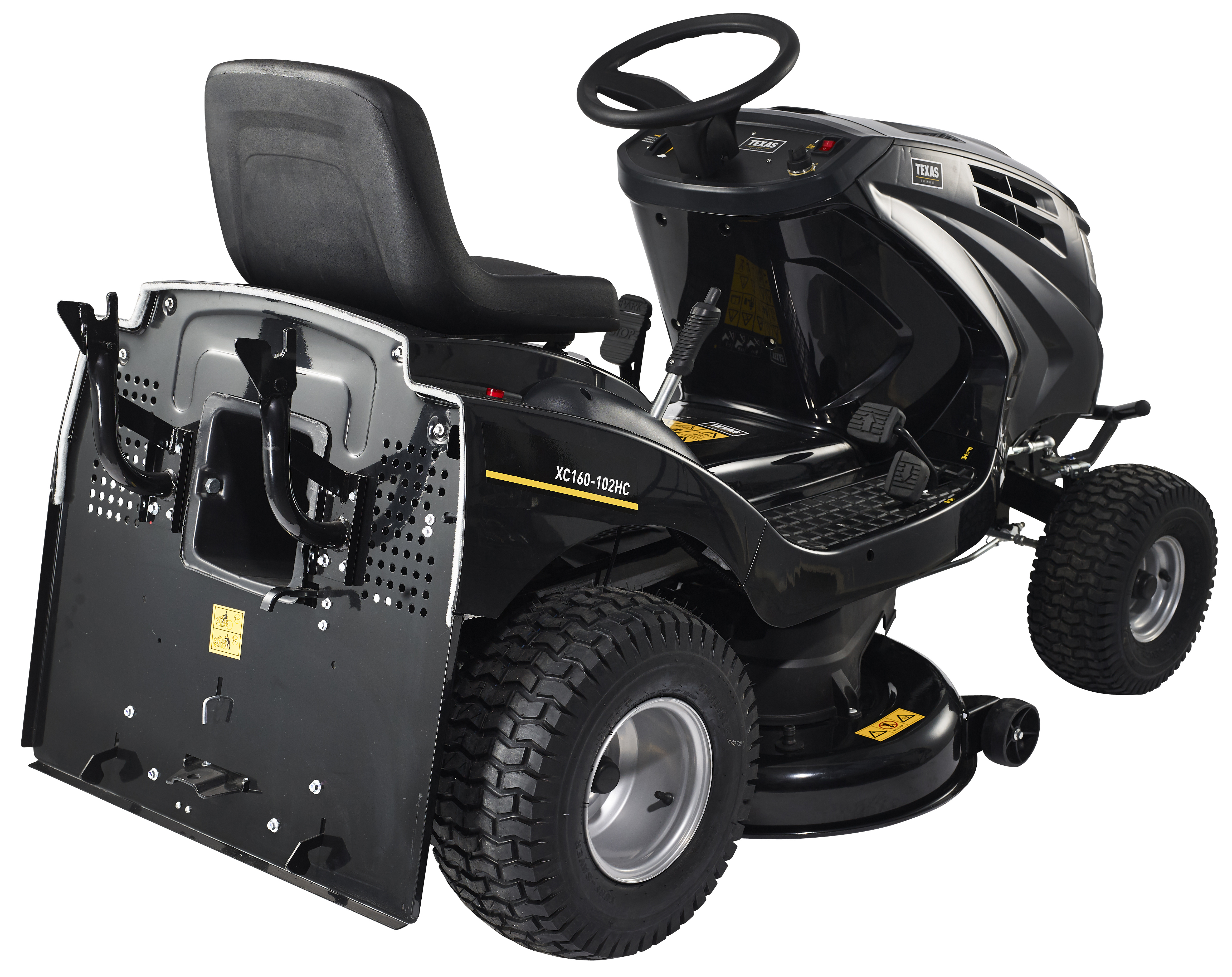

TEXAS XC160-102HC lawn tractor with integrated grass collector is built on a strong frame and fitted with a powerful engine and electric start function.

XC160-102HC is fitted with hydrostatic transmission from USA (acts as a kind of automatic transmission)

XC160-102HC has a cutting width of 108 cm and there is a 7-step height adjustment from 30-90 mm, and a turning radius of only 45 cm.

The model has several small practical features:
1. A front bumper protects the lawn tractor from damage.

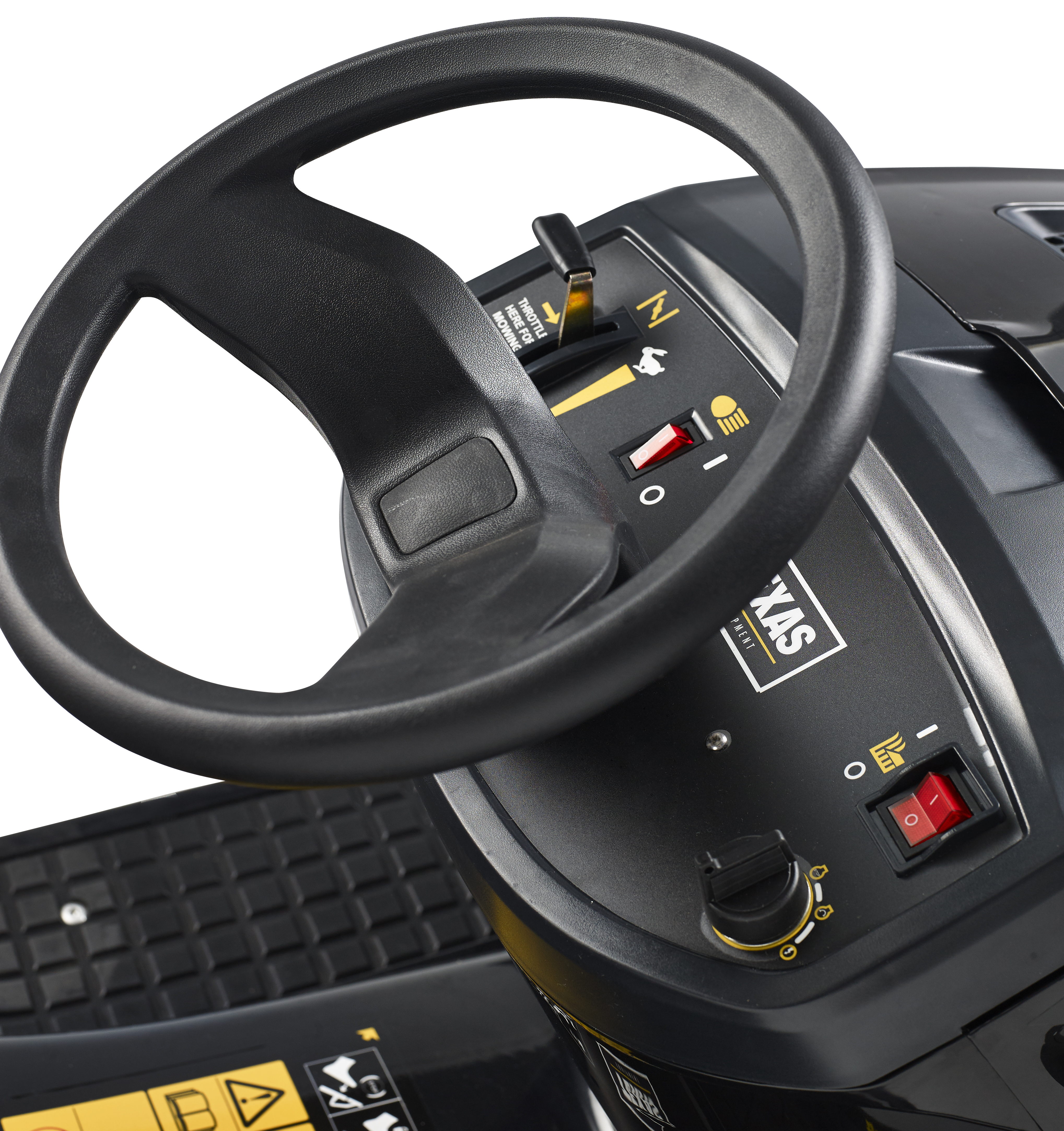

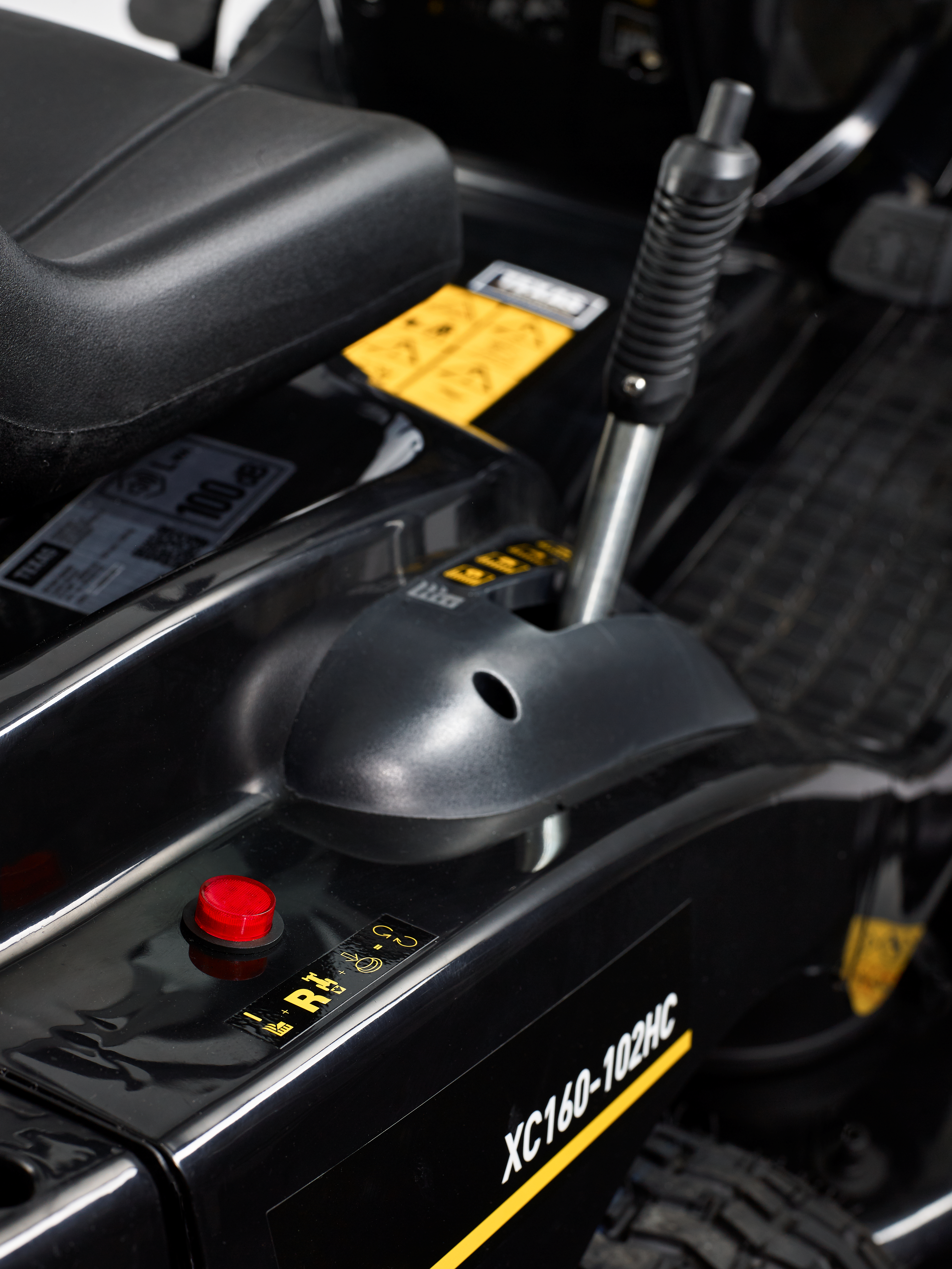

2. All control levers are conveniently located near the driver's seat.
3. Extra large fuel tank of about 7.5 L
4. Easy emptying of the collector box with the convenient handle (can be done from the driver's seat).

Mulching kit can be purchased (optional).
he model has a trailer hook for rearmounted accessories such as trailer, scarifier or grass / leaf collector).




Specifikationer

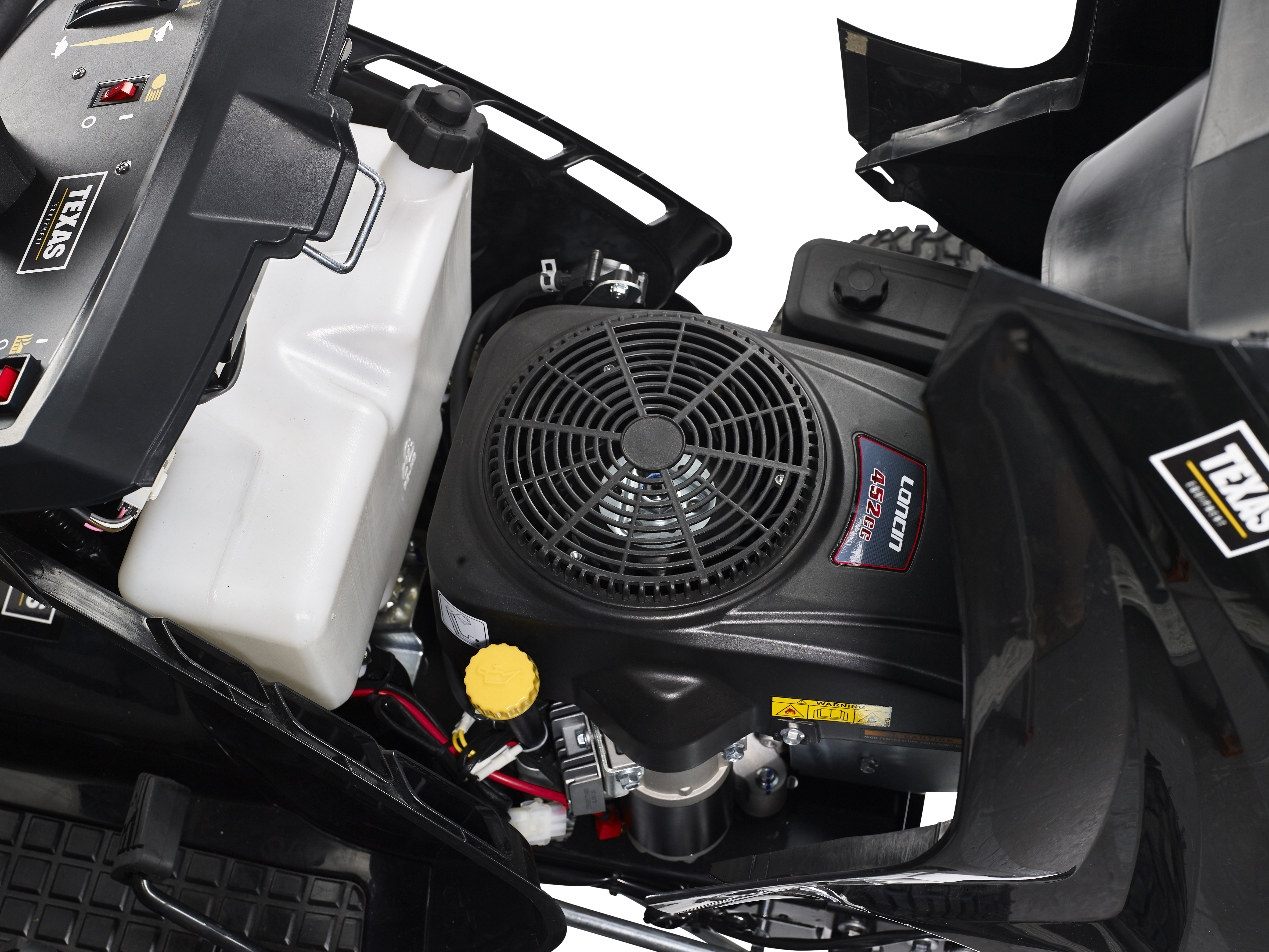

Engine
Engine : Loncin
Engine model : LC1P92F-1
Engine type : 4 stroke
CC : 452 cc
Tank capacity : 7,5 litre
Output (Max) : 9,2 kW v. 3600 rev./min.
Power : 8,3 kW v. 2800 rev./min.
Starter : Electric
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 1,2 litre
Equipment
Mulching : Yes
Functions
Cutting height : 30-90 mm
Cutting width : 102 cm
Trailer hook : Yes
Number of knives : 2 pce.
Height ajustment : Central
Knife : Metal
Turning radious (inner mesurements) : 45 cm
Kniv clutch : Electric
Shield material : Steel
Number of high adjustments : 7 positions
Front light : Yes
Adjustable seat : Adjustable
Operation
Rear wheel drive : Yes
Gear system : Hydrostatic
Wheels
Wheel size front : 15 x 6.00-6
Big air pressured rubber wheels : Inflatable rubber tyres
Wheel size rear : 18 x 8.50-8
Battery
Power : 12V/18 Ah
Emission
Level of vibration back : 7,84
Level of vibration right handle : 4,926
LWA guaranteed : 100
Features
Collecting box : 270 litre
Dimensions
Machine width : 108 cm
Machine length : 260 cm
Machine height : 108 cm
Weight : 220 kg
Box width : 198 cm
Box length : 104 cm
Box height : 113 cm
