Razor 5160TR/WE

Product data
Art no : 90066527
EAN : 5708906836390
Catalogues
EN
(2022)
DE
(2022)
FR
(2022)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele

Productdescription Razor 5160TR/WE

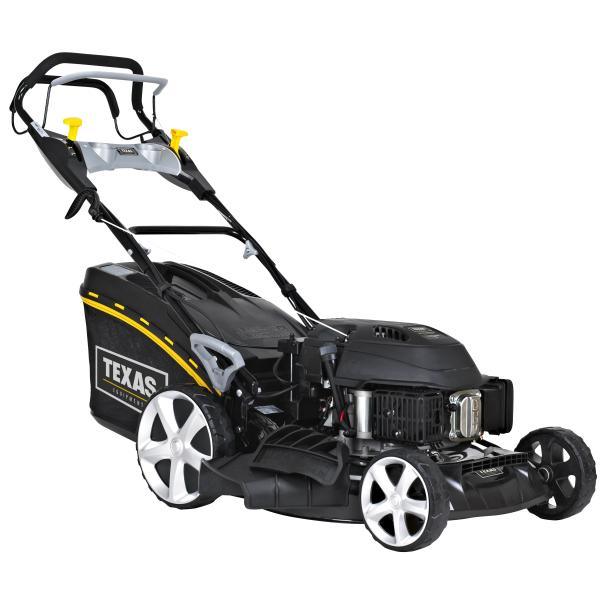

TEXAS Razor 5160TR/WE is a self-propelled 4-speed lawn mower with 51 cm cutting width, TG570E 173 cc engine and 65 L collector.

Razor 5160TR/WE has central height adjustment in 6 positions, which is adjusted by the big handle.

Furthermore this model has electric start function, where the engine starts easily by pushing a button.

Razor 5160TR/WE offers cutting function Mulching, rear discharge, side discharge and collection with a 65 L hard-top collector bag.




Specifikationer


Engine
Engine : Texas
Engine model : TG570E
Engine type : 4 stroke
CC : 173 cc
Tank capacity : 1 litre
Power : 3,2 kW
Power : 2800 rev./min.
Noise level : 98 dB
Airfilter : Paper with foam filter
Cylinder : 1
Starter : Electric/recoil start
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Mulching : Yes
Speed forward max : 2,3-4,3 km/hr
Dispatch tupe : Yes
Functions
Cutting width : 51 cm
Rear discharge : Yes
Pull : Yes
Height ajustment : Central
Shield material : Steel
Number of high adjustments : 6 positions
Operation
Rear wheel drive : Yes
Wheels
Bearings : Ball bearing
Features
Collecting box : 65 litre
Dimensions
Weight : 43 kg
Box width : 83 cm
Box length : 57 cm
Box height : 48 cm


Accessories


40-11291
Art no. 40-11291


40-11336
Art no. 40-11336


40-11730
Art no. 40-11730


40-11720
Art no. 40-11720


80016070
Art no. 80016070


90406507
Art no. 90406507
