Razor 5120TR/W

Product data
Art no : 90066522
EAN : 5708906836291
Catalogues
EN
(2021)
DE
(2021)
ES
(2021)
More catalouges avaible in local language

Where to buy

Documentation

Manual Reservedele
Manual Spare parts

Productdescription Razor 5120TR/W

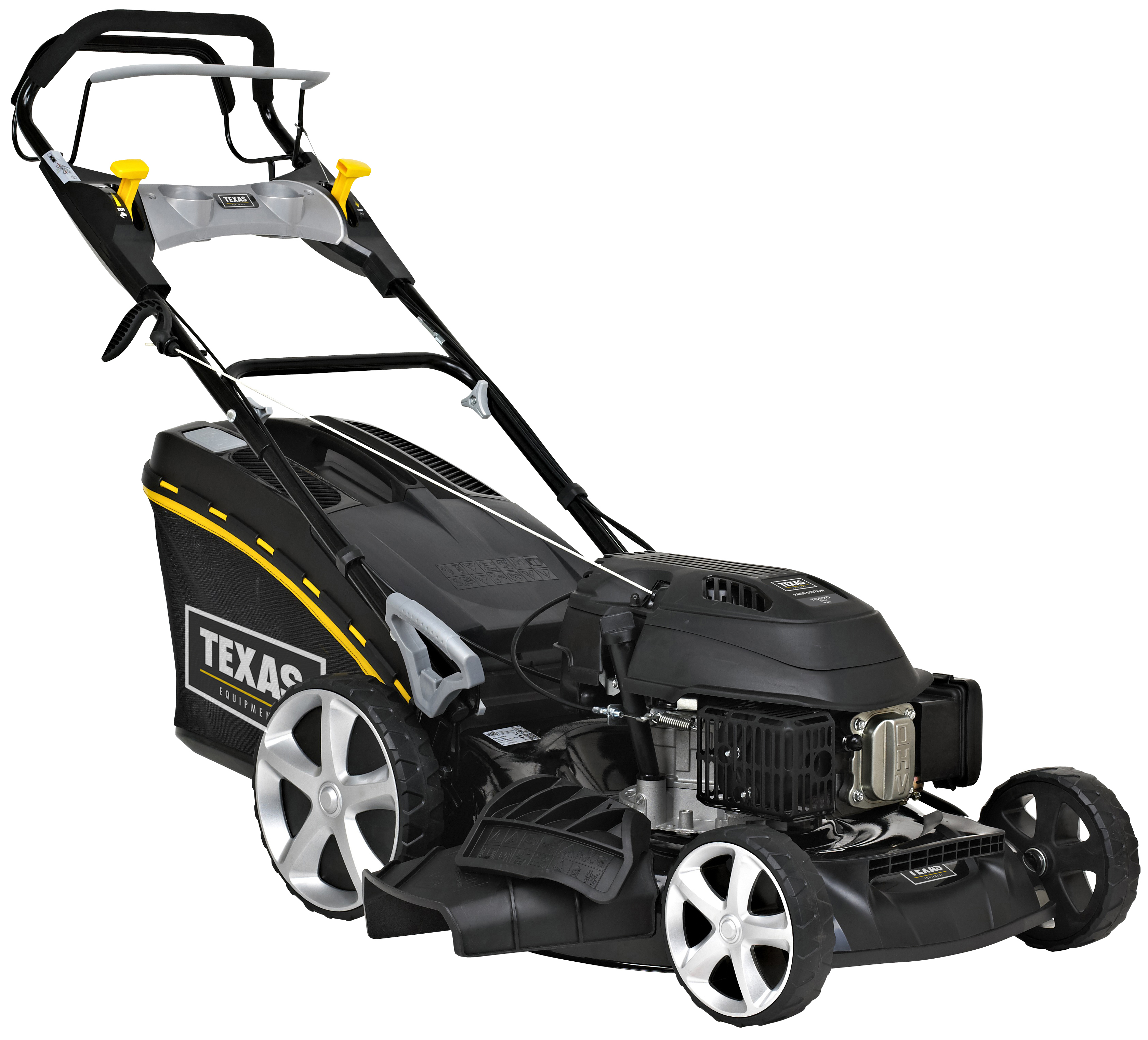

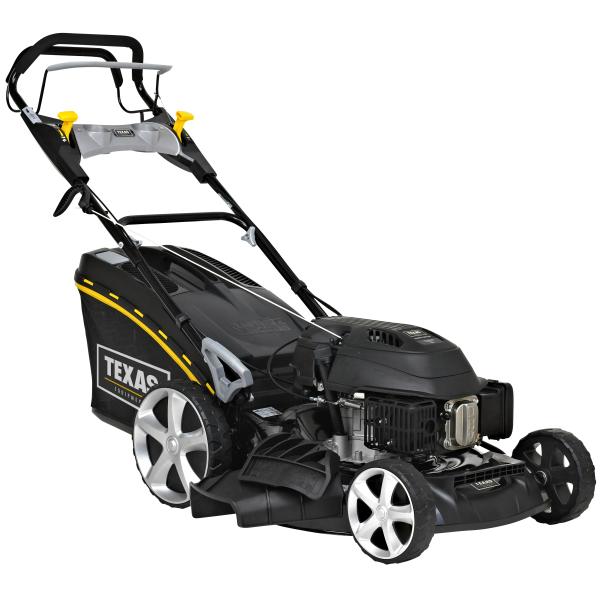

TEXAS Razor 5120TR/W is a self-propelled lawn mower with 51 cm cutting width, TG570 173 cc engine and 65 L collector.

The Razor 5120TR / W has central height adjustment in 6 positions, which is adjusted by the big handle.

Razor 5120TR/W offers cutting function Mulching, rear discharge, side discharge and collection with a 65 L hard-top collector bag.




Specifikationer


Engine
Engine : Texas
Engine model : TG570
Engine type : 4 stroke
CC : 173 cc
Tank capacity : 1 litre
Power : 3,2 kW
Power : 2800 rev./min.
Noise level : 98 dB
Airfilter : Paper with foam filter
Cylinder : 1
Starter : Recoil
Tank
Oil : SAE 30
Gasoline/diesel : Gasoline
Engine oil : 0,6 litre
Equipment
Mulching : Yes
Speed forward max : 3,6 km/hr
Dispatch tupe : Yes
Handle
Handle bar : Adjustable
Functions
Cutting height : 28-75 mm
Cutting width : 51 cm
Rear discharge : Yes
Pull : Yes
Height ajustment : Central
Knife : Metal
Shield material : Steel
Number of high adjustments : 6 positions
Gas adjustment : Yes
Wheels
Wheel size front : 8
Wheel size rear : 11
Bearings : Ball bearing
Features
Collecting box : 65 litre
Bioplug : Ja
Dimensions
Weight : 38,5 kg
Box width : 83 cm
Box length : 57 cm
Box height : 49 cm
