Razor 4680TR/W
| Product data | |
| Art no | : 90066516 |
| EAN | : 5708906836345 |
| Catalogues | |
EN
(2021)
DE
(2021)
ES
(2021) |
|
|
More catalouges avaible in local language
Where to buy |
|
| Documentation | |
 |
 |
| Manual | Spare parts |

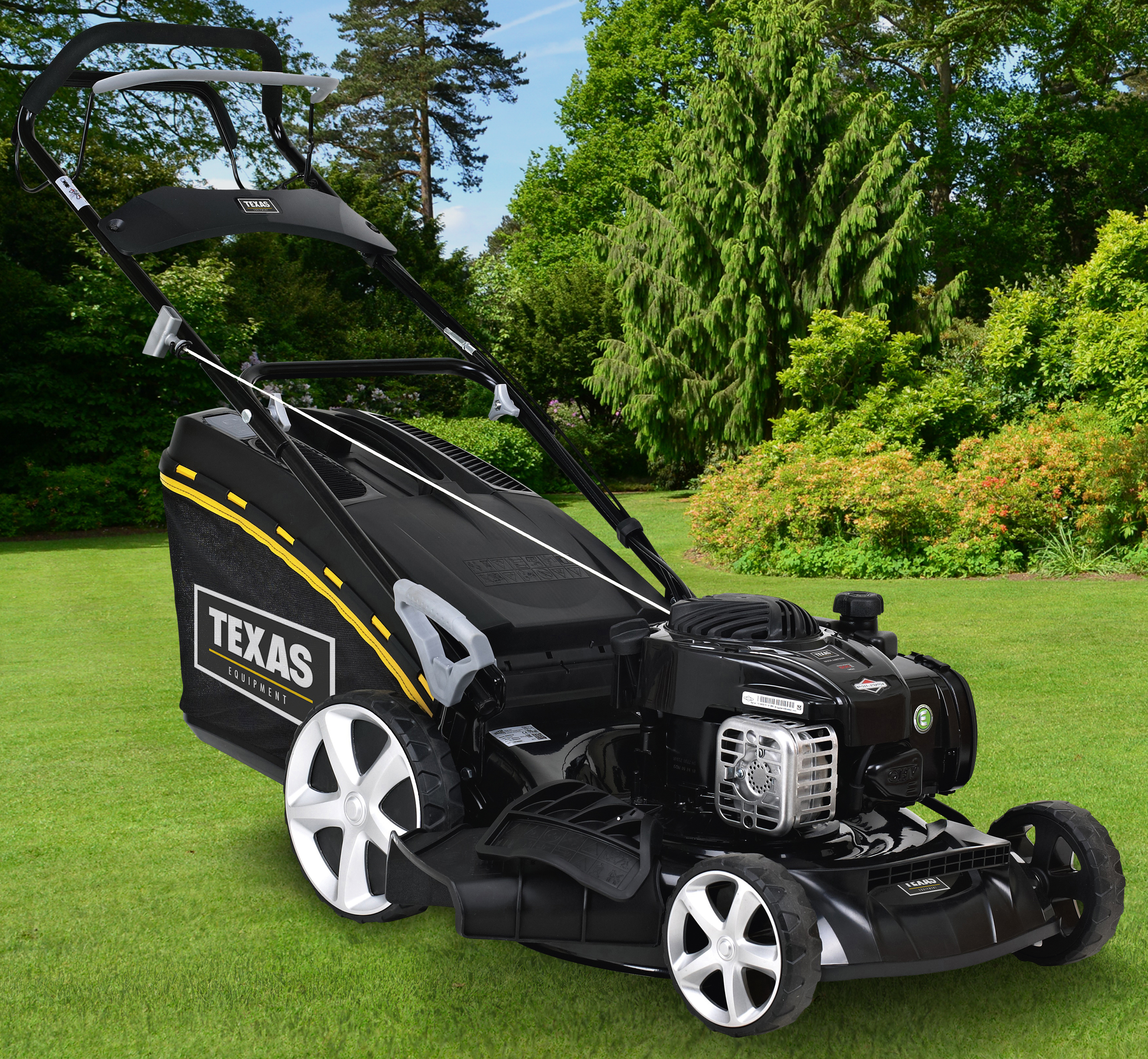

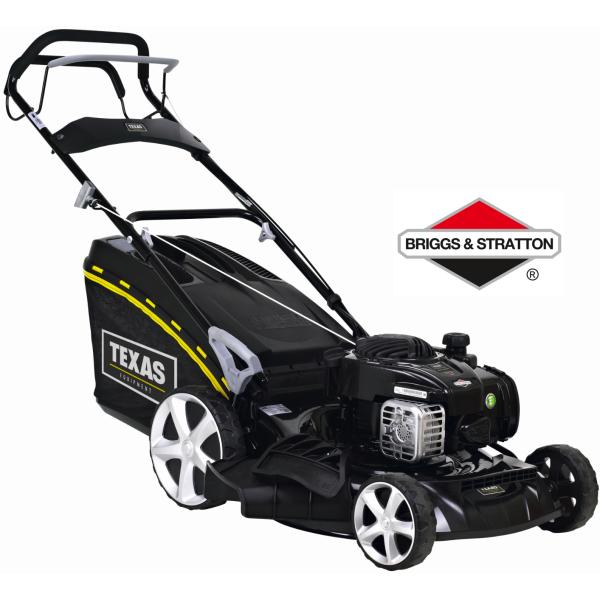

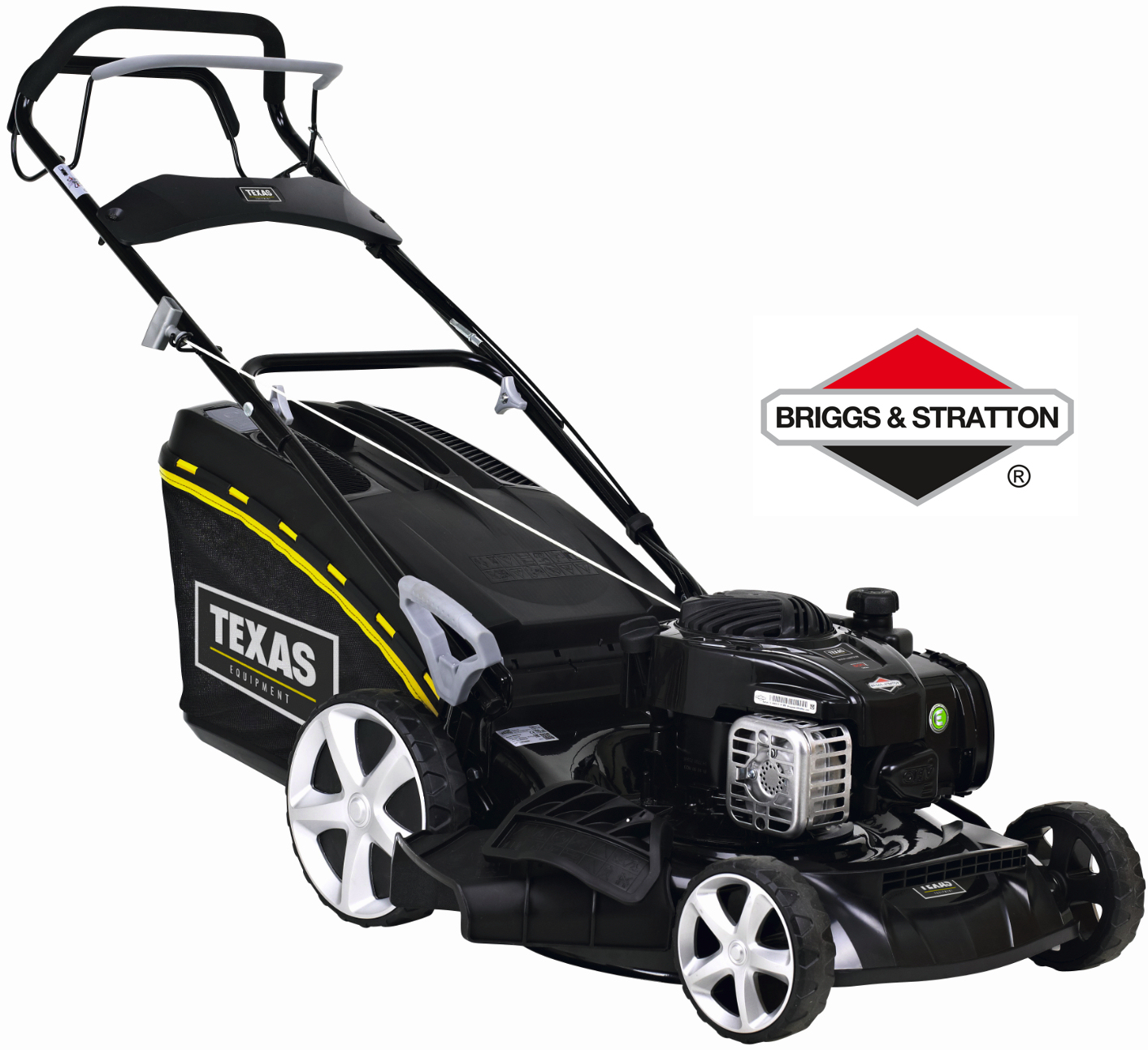

Productdescription Razor 4680TR/W
TEXAS Razor 4680TR/W is a self-propelled lawn mower with 46 cm cutting width,
B&S 140 cc engine and 65 L collector.

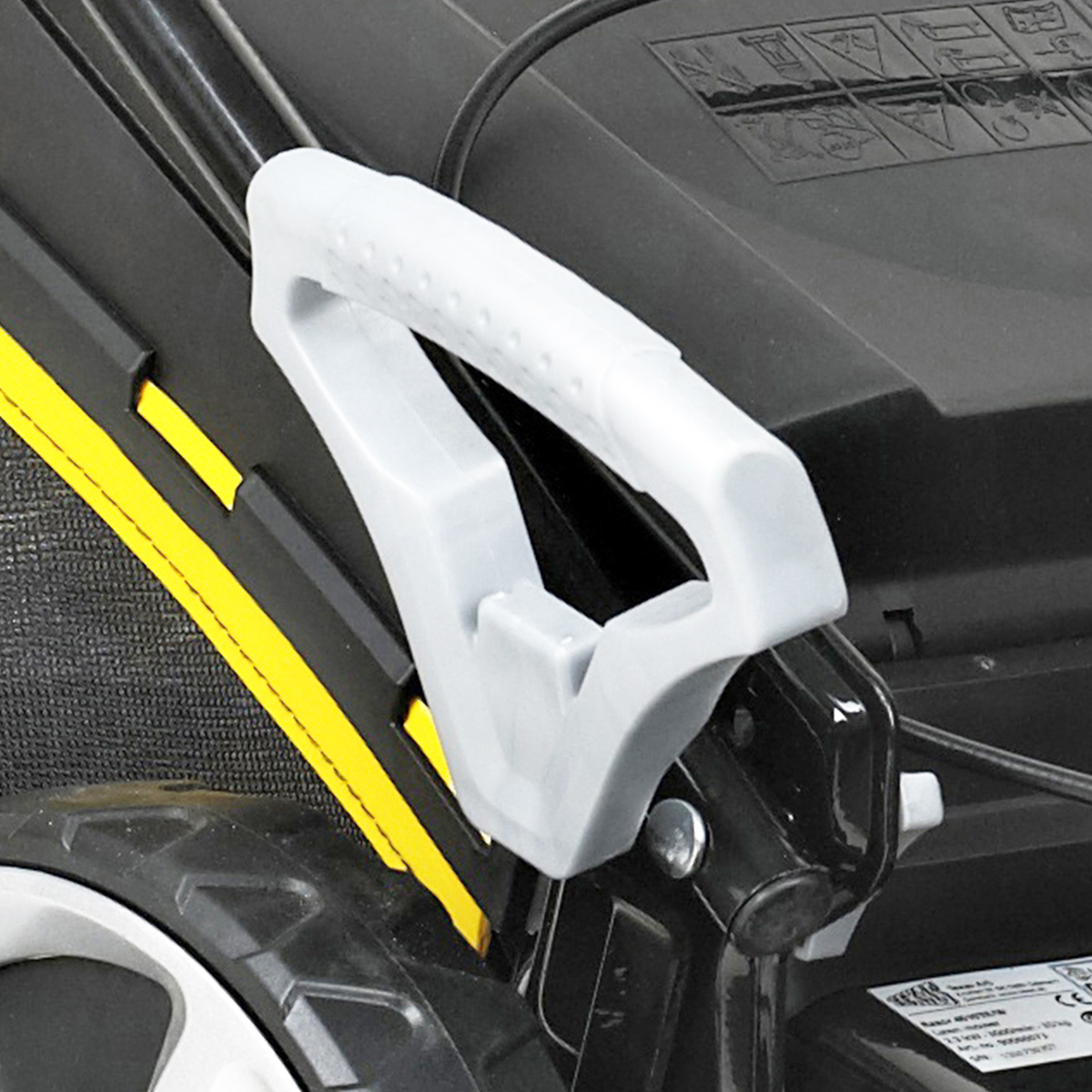

The model has central height adjustment in 6 positions, which is adjusted by the big handle.
TEXAS Razor 4680TR/W is suitable for smaller lawns of 400-600 m2.
Razor 4680TR/W offers cutting function Mulching, rear discharge, side discharge and collection with a 65 L hard-top collector bag.
Specifikationer
| Engine | |

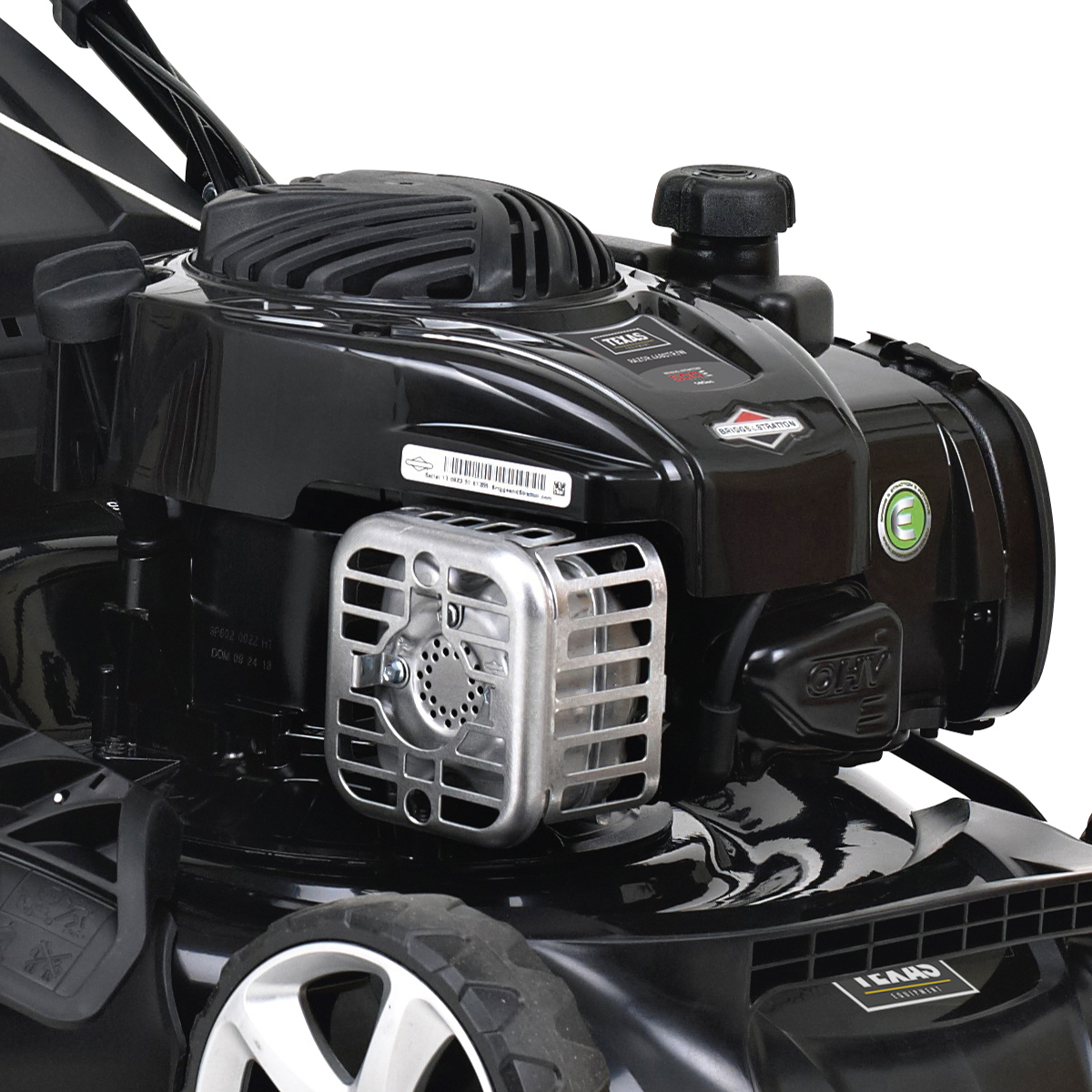

| Engine | : Briggs & Stratton |
| Engine model | : B&S500E |
| Engine type | : 4 stroke |
| CC | : 140 cc |
| Tank capacity | : 1 litre |
| Power | : 1,94 kW |
| Power | : 2800 rev./min. |
| Noise level | : 96 dB |
| Airfilter | : Paper |
| Cylinder | : 1 |
| Starter | : Recoil |
| Tank | |
| Oil | : SAE 30 |
| Gasoline/diesel | : Gasoline |
| Engine oil | : 0,6 litre |
| Equipment | |
| Mulching | : Yes |
| Speed forward max | : 3,6 km/hr |
| Dispatch tupe | : Yes |
| Handle | |
| Handle bar | : Adjustable |
| Functions | |
| Cutting height | : 28-75 mm |
| Cutting width | : 46 cm |
| Rear discharge | : Yes |
| Pull | : Yes |
| Number of knives | : 1 pce. |
| Height ajustment | : Central |
| Knife | : Metal |
| Shield material | : Steel |
| Number of high adjustments | : 6 positions |

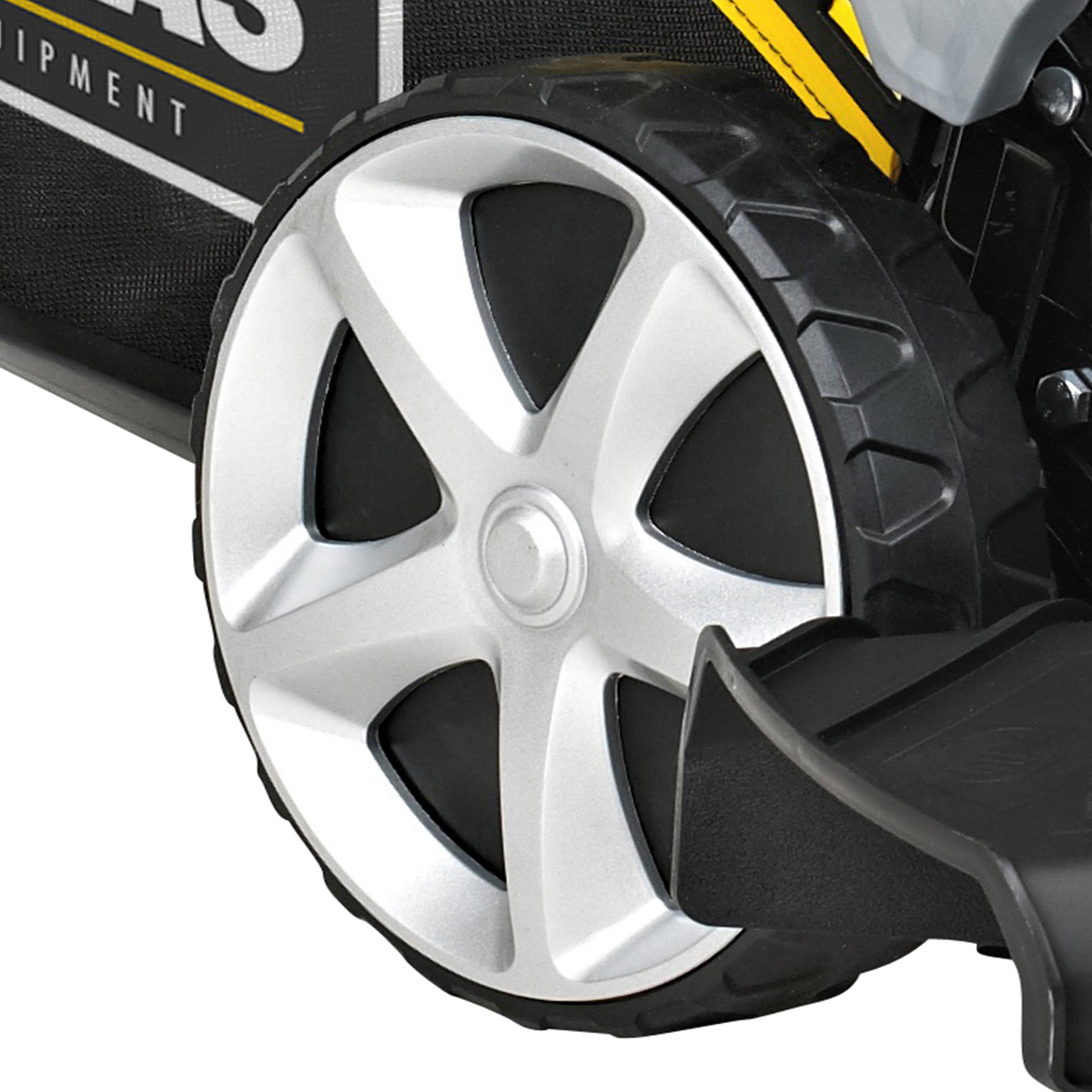

| Wheels | |
| Wheel size front | : 8 Tommer |
| Wheel size rear | : 10 Tommer |
| Features | |
| Collecting box | : 65 litre |
| Bioplug | : Ja |
| Dimensions | |
| Weight | : 30,5 kg |
| Box width | : 74 cm |
| Box length | : 57 cm |
| Box height | : 49 cm |
